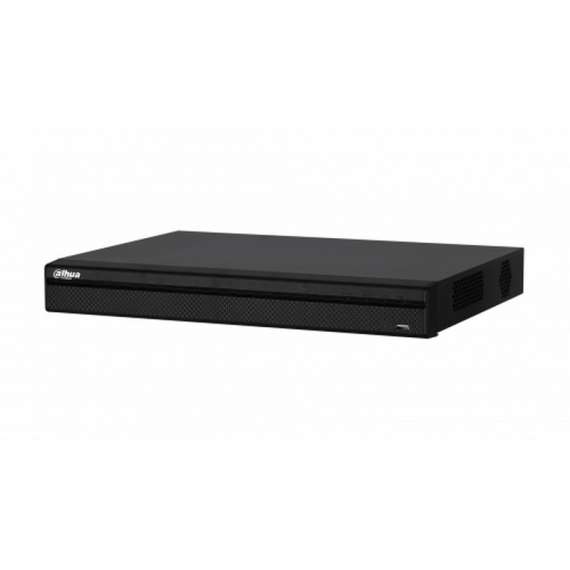

Dahua 32 Channel Penta-Brid 720P 1U Digital Video Recorder

Features

• Embedded processor
• Support HDCVI/AHD/TVI/CVBS/IP video inputs
• Max 16 channels IP camera inputs
• Max 64Mbps Incoming Bandwidth
• Long transmission distance over coax cable
• Support 2 SATA HDD, up to 16TB

Technical Specifications

System

• Main Processor: Embedded Processor
• Operating System: Embedded LINUX

Display

• Interface: 1 HDMI, 1 VGA, 1 TV
• Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768
• Multi-screen Display: 1/4/8/9/16/25
• OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm

• Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
• Alarm input: N/A
• Relay Output: N/A

Playback and Backup

• Playback: 1/4/9/16
• Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode: USB Device/Network

Storage

• Internal HDD: 2 SATA Ports, up to 8TB capacity for each disk
• eSATA: N/A

Auxiliary Interface

• USB: 2 USB Ports (1 USB 3.0,1 USB 2.0)
• RS232: N/A
• RS485: 1 Port, for PTZ Control

Third-party Support

• Third-party Support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Audio and Video

• HDCVI Camera Input: 32 Channel
• IP Camera Input: 16 Channel, each channel up to 5MP
• Audio In/Out: 1/1, RCA
• Two-way Talk: Reuse audio in/out, RCA

Recording

• Compression: H.265
• Resolution: 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
• Record Rate: Main Stream: 1080N(12fps)/720P(15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps);Sub steram:CIF/QCIF(1~7fps)
• Bit Rate: 1Kbps ~ 4096Kbps Per Channel
• Record Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Network

• Interface: 1 RJ-45 Port (1000M)
• Network Function: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
• Max. User Access: 128 users
• Smart Phone: iPhone, iPad, Android
• Interoperability: ONVIF 2.42, CGI Conformant

Electrical

• Power Supply: DC12V/4A
• Power Consumption: <20W (Without HDD)

Environmental

• Operating Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
• Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0~ 90% RH

Construction

• Dimensions: 1U, 375mm×287mm×53mm (14.8″ x 11.3″ x 2.1″)
• Net Weight: 2kg (4.41lb) (without HDD)
• Gross Weight: 3kg (6.61lb)
• Installation: Desktop installation

Certifications

• FCC: CFR 47 Part 15 subpart B,2016
• CE: EN 55032: 2015 (Class B), EN 55024 : 2010+a1:2015, EN 50130-4: 2011+A1:2014, EN 61000-3-2:2014, EN 61000-3-3 : 2013
• UL: Coming soon
