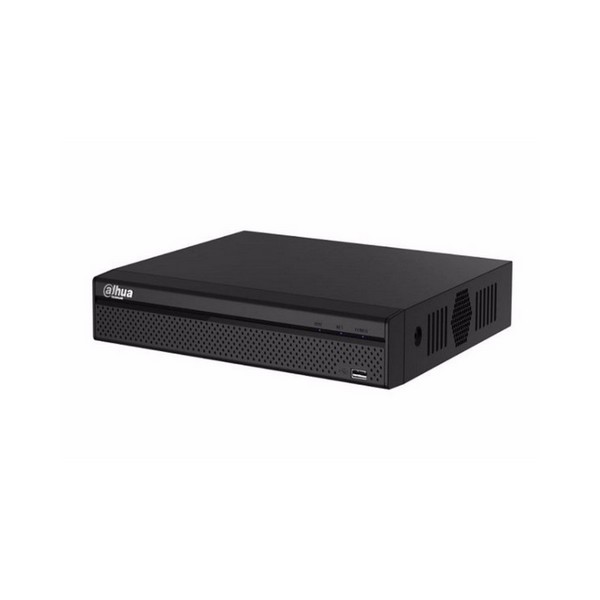

Dahua 16 Channel Penta-Brid 1080P-Lite 1U Network Video Recorder
![Buy Dahua 16 Channel Penta-Brid 1080P-Lite 1U Network Video Recorder in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/65/DAHUA-DH-NVR2116HS-S2-16CH-1-SATA-Metal-NVR-Black.jpg.jpg "Buy Dahua 16 Channel Penta-Brid 1080P-Lite 1U Network Video Recorder in [storefront]"){kind=small}
![Buy Dahua 16 Channel Penta-Brid 1080P-Lite 1U Network Video Recorder in [storefront]](images/detailed/65/DAHUA-DH-NVR2116HS-S2-16CH-1-SATA-Metal-NVR-Black.jpg "Buy Dahua 16 Channel Penta-Brid 1080P-Lite 1U Network Video Recorder in [storefront]")
NVR2116HS-S2
Please sign in so that we can notify you about a reply
- Dahua DHI-NVR2116 Compact 1U Lite Network Video Recorder
- 264+/H.264 codec decoding
- Max 80Mbps incoming bandwidth
- Up to 6Mp resolution preview & playback
- HDMI/VGA simultaneous video output
- 3D intelligent positioning with Dahua PTZ camera
- 12 Months Warranty
Specifications
| Model | Dahua DHI-NVR2116 |
| Type | NVR |
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded LINUX |
| Interface | 1 HDMI, 1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Minimum Illumination | 0.02Lux/F2.0, 0Lux IR on |
| Multi-screen Display | 1/4/8/9 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Trigger Events | Recording, PTZ, Tour, Video Push, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm input | N/A |
| Relay Output | N/A |
| Tracking Trigger Event | N/A |
| Sync Playback | 1/4/9 |
| Search Mode | Time /Date, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network/Internal SATA burner |
| Internal HDD | 1 SATA III Port, up to 6TB capacity for each HDD |
| Resolution | 1080P (1920×1080) |
| HDD Mode | Single |
| eSATA | N/A |
| USB | 2 ports (1 Rear USB2.0, 1 Front USB2.0) |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom,Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more |
| IP Camera Input | 4/8 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Compression | H.264+/H.264 |
| Resolution | 6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc. |
| Record Rate | 80Mbps |
| Bit Rate | 16kbps~20Mbps for per channel |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Interface l | 1 RJ-45 port (10/100Mbps) |
| Ethernet Port | 1 Independent 100Mbps Ethernet Port |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP,DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip |
| Max. User Access | 128 users |
| Smart Phonel | iPhone, iPad, Android |
| l | |
| Interoperability | ONVIF 2.4, CGI Conformant |
| Power Supply | Single, DC12V/2A |
| Power Consumption | <2.4W (without HDD) |
| Warranty | 12 Months |
