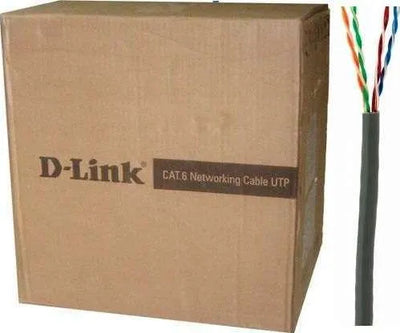

D-Link NCB-C6UGRYR-305 Cat6 UTP 24AWG Cable Rolls

PRODUCTCODE_8167
Ksh12,500
(Ksh14,500 Inc VAT)

Overview

Cat6 UTP 24AWG Cable Rolls NCB-C6UGRYR-305-24

  • 4 Pairs Unshielded Twisted Pair (UTP) Cable
  • Conductor Metal: Solid Bare Copper with 24 AWG
  • Color Code: Gray
  • Jacket Material: PVC UL94V-0
  • PE Central Cross separator

Technical Specifications

  • Mutual Capacitance: 5.6nF/100m nominal
  • Characteristic Impedance: 100±15%
  • Nominal Velocity of Propagation: 69%
  • Conductor Resistance: < 9.38/100m
  • Mutual Capacitance: < 5.6nF/100m
  • Resistance Unbalance: 5% Max
  • Capacitance Unbalance: 330pF/100m
  • Delay Skew: < 45nS
  • Conductor Diameter : 0.520mm Nominal
  • Insulation Diameter: 0.940mm Nominal
  • Insulation Material: HD-PE
  • Cable Diameter: 5.7mm
