Reliable Mobile Connectivity
Whether at home, in the office, or traveling abroad, the DWM-156 provides reliable broadband connectivity for notebook users on the go. Maximum download speeds of up to 14.4Mbps and uploads at up to 5.76Mbps allow you to do more with your mobile connection than ever before.
Optimal Performance With 3.75G HSUPA Technology
Supports the latest 3.75G High Speed Uplink Packet Access (HSUPA) technology, which boosts the maximum uplink data rate to 5.76Mbps and helps to reduce latency. 3.75G is also backwards compatible with 3.5G, 3G, and 2.5G technologies.
Simply insert your SIM/USIM card into the slot and connect to your mobile service provider. Device drivers and software are built into the device making installation fast and simple. The included software provides access telephone numbers and data stored on the SIM/USIM card.

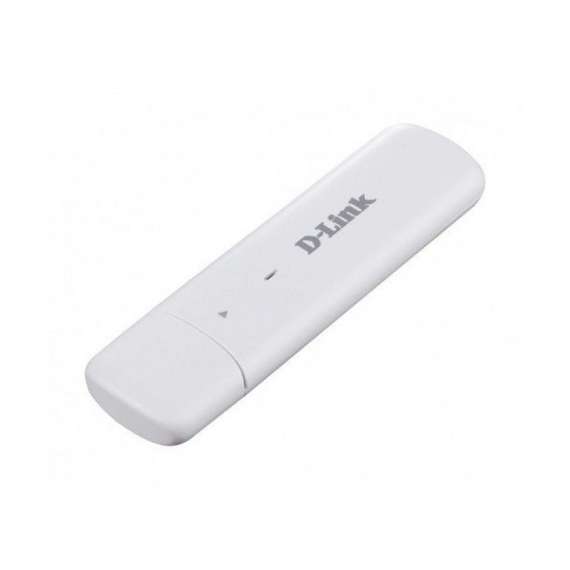

Slim and Compact
The USB adapter is small enough to fit in your pocket. No batteries, cables, or additional hardware required.
|Minimum System Requirements||+ Windows 2000/XP/VISTA or Mac OS X 10.4.0+ +
Pentium 500MHz or greater
+ 128MB RAM or greater
+ 50MB available disk space
+ Internet Explorer v6.0+ / Firefox v1.5+
|GSM Band (GSM/GPRS/EDGE)||+ 850, 900, 1800, 1900 MHz|
|UMTS/HSDPA Band *||2100MHz|
|Data Rates **||+ DL: 14.4Mbps (HSDPA)
+ UL: 5.76 Mbps (HSUPA)
|Antenna||+ Internal monopole antenna|
|Interface Support||+ USB 2.0|
|SMS||+ Circuit-switched (GSM)
+ Packet-switched (GPRS)
|SMS Manager||+ Create, edit, forward, and send messages
+ Inbox, outbox, draft, and sent folders
|Phonebook||+ Import, export, add, modify, and delete records
+ Copy entries from SIM to PC
|USIM Slot||+ Standard 6-Pin SIM card interface|
|Plug and Play||+ Automatic software/driver installation|
|Connection Status||+ Network name, signal strength, send/receive rate
+ LED indicator
|Dimensions||+ 86.75mm x 28mm x 11.4mm|
