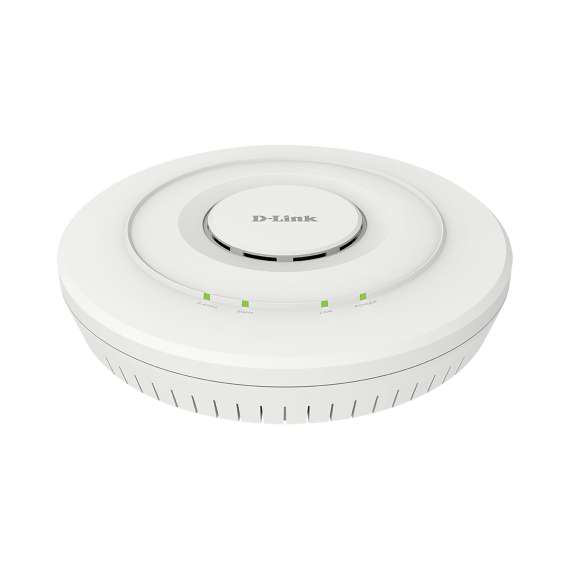

D-Link DWL-6610AP/UNA 11AC 2.4/5 Ghz Wireless Access Point

-Link DWL-6610AP/UNA 11AC 2.4/5 Ghz Wireless Access Point with built-in Gigabit PoE

Part Number: DWL-6610AP/UNA

The DWL-6610AP Dual-Band 802.11n/ac Unified Wireless Access Point is specially designed for small to medium enterprises, providing unparalleled bandwidth and flexibility for administrators looking to deploy a medium to large scale Wi-Fi network. Featuring the latest 802.11ac on its 5 GHz band, the DWL-6610AP brings you to the forefront of wireless technology.

High Performance Connectivity

•     Beamforming technology

•     Bandsteering for efficient traffic management

•     Dual Gigabit Ethernet LAN ports

•     UL2043 certified chassis (Plenum-rated SKU)

•     Up to 8 DWL-6610AP units may form a self-configuring cluster

Trusted Security

•     WPA/WPA2 Personal

•     WPA/WPA2 Enterprise

•     MAC address filtering

•     Rogue AP detection

Technical Specifications

Interfaces:

•     802.11b/g/n 2.4 GHz wireless

•     802.11ac 5 GHz wireless

•     One 10/100/1000 LAN port

•     RJ45 console port

•     Factory reset button

•     Power connector

Antenna :

•     Internal omnidirectional antennas

•      4 dBi for 5 GHz, 4 dBi for 2.4 GHz

Operating Channel :

•     2.4 / 5 GHz

 Web-based User Interface:

•     HTTP/HTTPS

Command Line :

•     RJ45 Serial Console

•     Telnet/ SSH

•     SNMP

SSID Security :

•     Up to 32 SSIDs, 16 per radio

•     802.1Q VLAN

•     Station Isolation

Wireless Security :

•     WPA Personal/ Enterprise

•     AES and TKIP

Detection & Prevention :

•     Rogue and Valid AP Classification

Authentication :

•     MAC Address Filtering

Dimensions :

•     205 x 39 mm (8.07 x 1.54 in.)

Weight :

•     0.476 kg

Power Adapter :

•     Input: 100 to 240 V AC

•     12 V/1.5 A external power adapter

Power over Ethernet :

•     10/100/1000 Mbps PoE  input

Power Method :

•     Powered by PoE or 12 V / 2 A

Enclosure :

•     Bottom cover – plastic

•     Top cover – plastic

•     UL2043 certified chassis

Temperature :

•     Operating: 0 to 40 °C (32 to 104 °F)

•     Storage: -20 to 65 °C (-4 to 149 °F)

Humidity :

•     Operating: 10% to 90% non-condensing

Certifications :

•     CE

•     EN 301 893 V1.7.1 (2012-06) (DFS/TPC)

•     EN 300 328 V1.8.1 (2012-06)

•     FCC

•     IC

•     cUL

•     LVD

•     UL2043 (for plenum-rated SKU only)

•     C-Tick

•     BSMI

•     NCC

•     Wi-Fi

Product Datasheet
