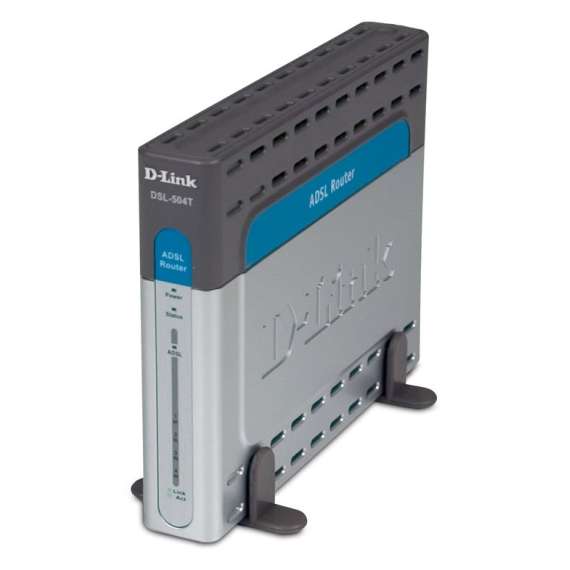

D-Link DSL- 504T ADSL ROUTER

A standard-based ADSL modem in built into this router, making connection to the Internet a breeze. The router also incorporates four 10/100Mbps Ethernet switch ports, providing ready connection for workstations and servers, while saving you the cost and trouble of installing a separate Ethernet switch. The router provides NAT protection for your office and home users from any Internet intruders and hackers, plus VPN pass-through for extra security. It also blocks and redirects certain ports.

Specifications

• Built-in ADSL modem supporting G.992.1 G.dmt full rate, G.992.2 G.lite, ANSI T1.413 issue 2
• G.994.1 G.hs auto-negotiation of different ADSL flavors
• 4 10/100Mbps switch ports with IP multicast support
• Bridged Ethernet over ATM, PPP over ATM and IP over ATM, PPP over Ethernet
• Precise ATM traffic shaping
• Routing protocol supports RIP-1, RIP-2, Static Routing
• Built-in NAT, DHCP server
• Virtual Private Network (VPN) pass-through support
• DMZ and Virtual Server Mapping support
• PAP/CHAP authentication, administrative passwords through Telnet and the Web
• Built-in MIBs for SNMP management
• Web-based configuration setup
• TFTP and HTTP firmware upgradable
• UPnP enabled
