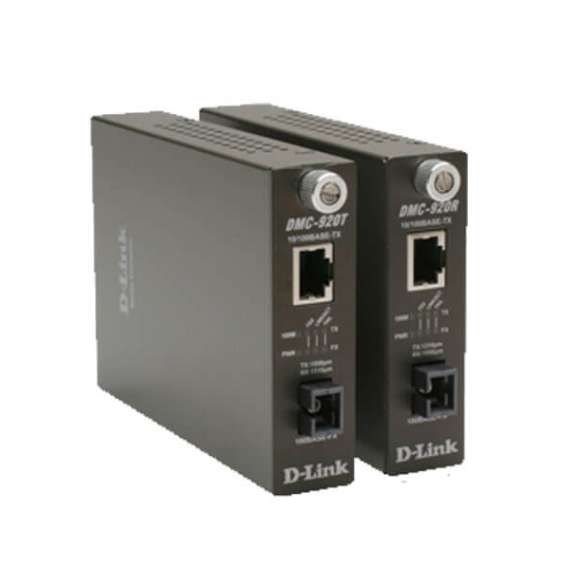

D-Link DMC-920T/E 10/100Base-TX to 100Base-FX Single-Fiber Media Converter (TX-1550/RX-1310 nm)
![Buy D-Link DMC-920T/E 10/100Base-TX to 100Base-FX Single-Fiber Media Converter (TX-1550/RX-1310 nm) in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/88/[DMC-920T-E]_D-Link_DMC-920T-E_10-100Base-TX_to_100Base-FX_Single-Fiber_Media_Converter__TX-1550-RX-1310_nm_.jpg.jpg "Buy D-Link DMC-920T/E 10/100Base-TX to 100Base-FX Single-Fiber Media Converter (TX-1550/RX-1310 nm) in [storefront]"){kind=small}
![Buy D-Link DMC-920T/E 10/100Base-TX to 100Base-FX Single-Fiber Media Converter (TX-1550/RX-1310 nm) in [storefront]](images/detailed/88/[DMC-920T-E]_D-Link_DMC-920T-E_10-100Base-TX_to_100Base-FX_Single-Fiber_Media_Converter__TX-1550-RX-1310_nm_.jpg "Buy D-Link DMC-920T/E 10/100Base-TX to 100Base-FX Single-Fiber Media Converter (TX-1550/RX-1310 nm) in [storefront]")
This media converter combines transmit and receive signals onto one fibre strand using two wavelengths. This design avoids the budget losses incurred by the single-wavelength single-fiber technology and minimizes the possibility of reflections in the system.
The units on both ends of a link are different. One module uses one wavelength to transmit and a second wavelength to receive, while the other module flips that relationship. For this reason, these units are used in pairs.
A pair of a one-channel single fiber is used for media conversion between 10/100BASE-TX and 100BASE-FX.
Two different transmitting wavelengths, one wavelength with bi-directional for both transmit and receive.
– DMC-920R: This media converter provides 1310 micron for TX, 1550 micron for RX.
– DMC-920T: This media converter provides 1550 micron for TX, 1310 micron for RX.
Fiber cable support is 9/125um, 10/125um single-mode fiber , maximum 20 km cable distance
Specifications
| LED Indicators | Power 100Mbps Speed (for twisted-pair port) Full Duplex/Collision (for twisted-pair and fiber ports) LINK/ACT (for twisted-pair port) |
|
| Dimensions | 120 x 88 x 25 mm |
|
| Power Input | 7.5V 1.5A Through external AC power adapter |
|
| Operation Temperature | 0° - 40° C |
|
| Storage Temperature | -25° - 70° C |
|
| Humidity | 10 ~ 90% non-condensing |
|
| Emission (EMI) | FCC Class B VCCI Class B CE Class B C-Tick |
