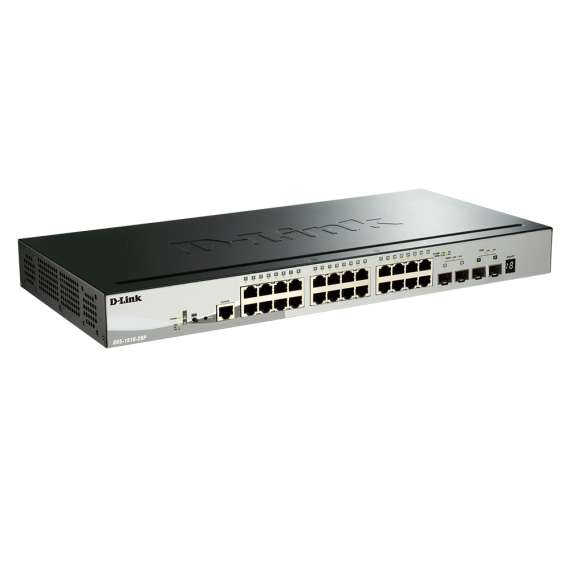

D-Link DGS1510-28P Smart managed Switch
Please sign in so that we can notify you about a reply
General features:
Port Standards & Functions
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T GigabitÂ
Ethernet, 802.3ae 10 GbE, IEEE 802.3x Flow Control for Full-Duplex Mode, Auto-negotiation
Â
Number of Ports
24 10/100/1000 Mbps PoE capable, 2 Gigabit SFP, 2 10G SFP+
Â
Network Cables
UTP Cat. 5, Cat. 5e (100 m max.); EIA/TIA-568 100-ohm STP (100 m max.)
Â
Full/Half Duplex
Full/half duplex for 10/100 Mbps and Gigabit speed
Â
Media Interface Exchange
Auto or configurable MDI/MDIX
Â
Performance
Switching Capacity
92 Gbps
Â
Transmission Method
Store-and-forward
Â
MAC Address Table
16,000 entries per device
Â
MAC Address Update
Up to 512 static MAC entries
Enable/disable auto-learning of MAC addresses
Â
Maximum 64 bytes Packet Forwarding Rate
68.45 Mpps
Â
Packet Buffer Memory
1.5 MB per device
Â
РоЕÂ
PoE Standard: IEEE 802.3af, 802.3at
PoE Capable Ports: Ports 1 to 24: Up to 30 W
PoE Power Budget: Max. 193 W
Â
AC Input
100 to 240 VAC 50/60 Hz internal universal power supply
Â
Maximum Power Consumption
238.7 W (PoE on), 29 W (PoE off )
Â
Standby Power Consumption
21 W
Â
Smart Fan Quantity
2
Â
Acoustics
46.4 dB (A)
Â
Heat Dissipation
813.967 BTU/hr
Â
Operation Temperature
-5 to 50°C (23 to 122°F)
Â
Storage Temperature
-20 to 70°C (-4 to 158°F)
Â
Operation Humidity
0% to 95% non-condensing
Â
Storage Humidity
0% to 95% non-condensing
Â
Â
Weight
2.54 kg
Â
Diagnostic LEDs
Power/Stacking ID/Fan Error/PoE Push Button (per device), Link/Activity/Speed/PoE Mode (per 10/100/1000Â
Mbps port), Link/Activity/Speed (per SFP port), Link/Activity/Speed (per 10G SFP+ port)Â
Â
Certifications
CE, FCC, C-Tick, VCCI, BSMI, CCC
