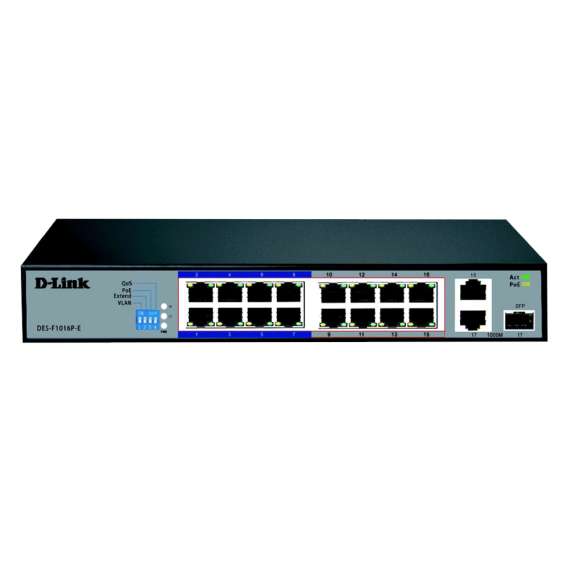

D-Link DES-F1016P-E 16-Port Surveillance Switch

A dedicated long-range PoE surveillance switch designed for IP camera deployments and security networks. It provides stable power and data transmission with extended reach support, making it ideal for CCTV systems, small business surveillance, and industrial monitoring setups.

Specifications

• Brand/Model/Color: D-Link DES-F1016P-E/B Surveillance Switch, Black
• Port configuration: 16 × 10/100 Mbps PoE RJ45 ports (Ports 1–16) + 1 × Gigabit combo RJ45/SFP uplink port (Port 17)
• PoE standard: IEEE 802.3af / IEEE 802.3at (PoE/PoE+)
• Power budget: 150W total PoE power
• Extended transmission: Long-range PoE support (up to extended distances via surveillance mode)
• Switching capacity: 5.2 Gbps
• Forwarding rate: 3.868 Mpps
• Ethernet standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (Gigabit support via combo port), IEEE 802.3z (Gigabit fiber)
• Flow control: IEEE 802.3x
• Auto features: Auto MDI/MDIX and auto-negotiation (NWay)
• Surge protection: 6KV lightning protection
• Power input: 100–240VAC, 50–60Hz
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 90% (non-condensing)
• Dimensions: 285 × 180 × 44 mm
• Weight: 2.1 kg
• Management mode: DIP switch for mode selection (standard network / surveillance mode)
• Smart features: Long-range mode, VLAN support (surveillance optimization), and PoE control
• Use case: IP surveillance systems, CCTV cameras, security monitoring networks, and small business installations
• Function: Centralized PoE switch optimized for long-distance camera connectivity
• Performance: Stable video and power delivery with enhanced transmission range for surveillance setups
