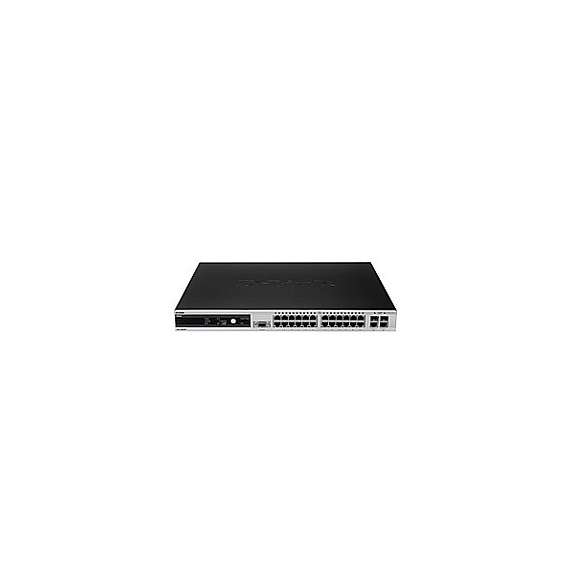

D-Link DES-3828P/E 24-Port 10/100Mbps Switch

Interface
- 24 10/100BASE-TX Ports
- 2 10/100/1000BASE-T Ports
- 2 Combo 10/100/1000BASE-T Ports/SFP Slots
- Auto-Negotiation of Network Speeds
- RS-232 Console Port

Power
- Internal Power Supply: AC to DC
- Power Input: 100 to 240VAC, 1A, 50 to 60Hz
- Power Consumption: 395.2 watts (max.)
- Optional Redundant Power Supply
- 802.3af Power Over Ethernet
- Number of PoE Capable Ports: 24
- PoE Auto-Discovery
- PoE Auto-Disable (Per Port)
- PoE Active Circuit Protection

Performance
Switching Capacity
12.8Gbps

64-Byte System Packet Forwarding Rate
9.5mpps

IP Routing Table
2K

Packet Buffer Size
16K

Max. Jumbo Frame Size
32MB

MAC Address Table
9KBytes

Diagnostic LED
- 10Mbps or 100Mbps Speed (Per Ethernet Port)
- 10/100Mbps or 1000Mbps Speed (Per Gigabit Port)
- Link/Activity (Per Port)
- Power, Console, RPS (P er Device)

Software Features
Stackability
- Virtual Stacking
- Support D-Link Single IP Management
- Up to 32 Devices per Virtual Stack

BTU/Hr.
1159.2

Dimensions
441 x 369 x 44 mm

Size
19-Inch Standard Rack-Mount Width, 1U Height

Weight
6.02 kg (13.27 lbs)

Operating Temperature
0 to 40 C

Storage Temperature
-40 to 70 C

Humidity
5% to 95% Non-Condensing

EMI
FCC Class A, CE, C-Tick

Safety
CSA International, CB

MTBF
168,110 Hours
