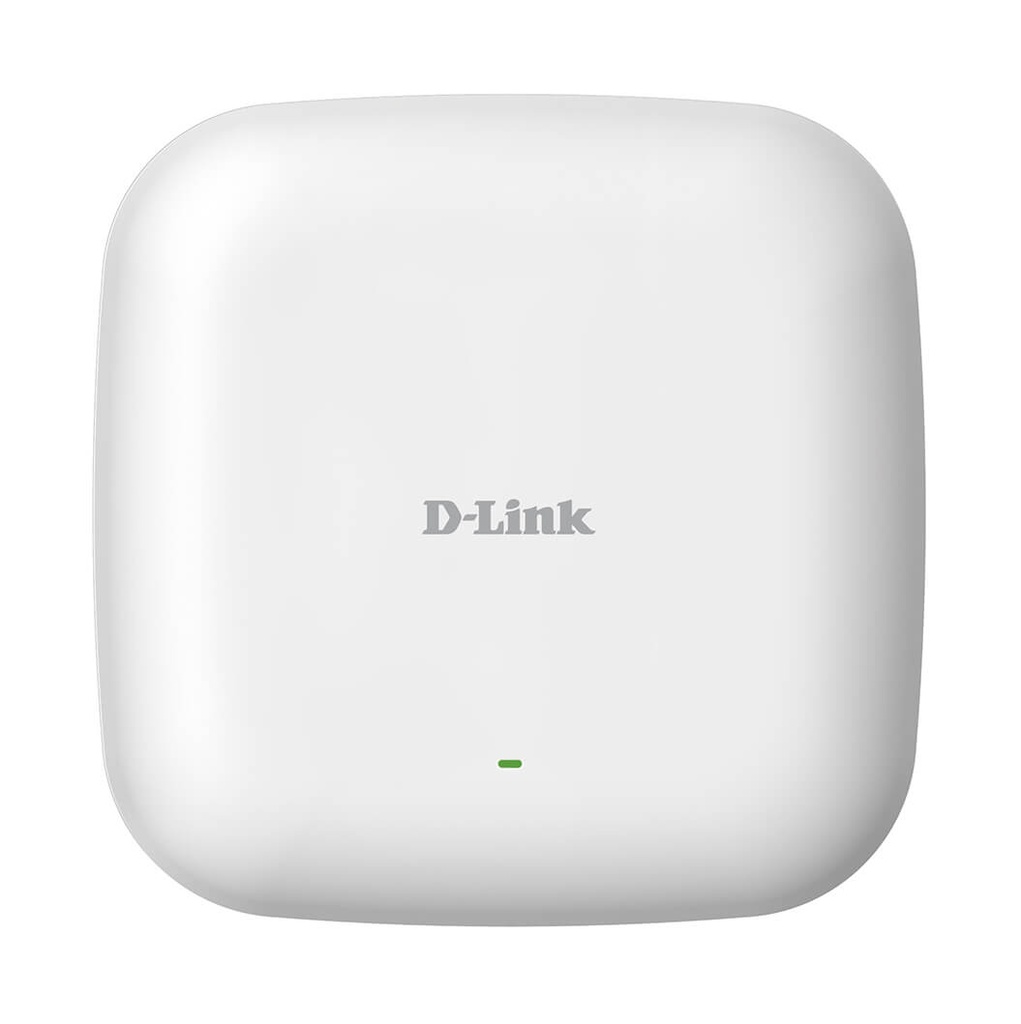

D-Link DAP-2230/UAU Wireless 300Mbps 11n/11g Managed Wireless Access Point

D-Link DAP-2230/UAU Wireless 300Mbps 11n/11g Managed Wireless Access Point

Part Number: DAP-2230/UAU

The DAP-2230 Wireless N PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options. Multiple operating modes, network management tools, and security features give network administrators a wide range of choices for deploying the device, allowing for the addition of wireless network-enabled devices

SPECIFICATIONS

Technical specifications

General

Device Interfaces

• 802.11 b/g/n wireless • 10/100 Mbps PoE LAN port (supports 802.3af PoE) LED  • Power/Status Standards • IEEE 802.11b/g/n • IEEE 802.3u/ab/af Wireless Frequency Range • 2.4 GHz band: 2.4 GHz to 2.4835 GHz Antennas • Two internal 3 dBi for 2.4 GHz Maximum Output Power • 20 dbm for 2.4GHz as per EU / CE Starndards Functionality Security • WPA-Personal • WPA-Enterprise • WPA2-Personal • WPA2-Enterprise • WEP 64/128-bit encryption • SSID broadcast disable • MAC address access control • Network Access Protection (NAP)

Network Management • Telnet • Secure Telnet (SSH) • HTTP • Secure HTTP (HTTPS) • Traffic control • SNMP • AP Array • D-Link Central WiFiManager Physical and Environmental Dimensions • 129 x 129 x 29 mm Weight • 101.4 grams Operating Voltage • 12 V DC 1 A  or 802.3af PoE Maximum Power Consumption •  5.76 watts Temperature • Operating: 32 to 104 °F (0 to 40 °C) • Storage: -4 to 149 °F (-20 to 65 °C) Humidity • Operating: 10% to 90% non-condensing • Storage: 5% to 95% non-condensing

Certifications • FCC • IC • CE • Wi-Fi • UL

Product Datasheet
