Overview
Connect to a Wireless Network

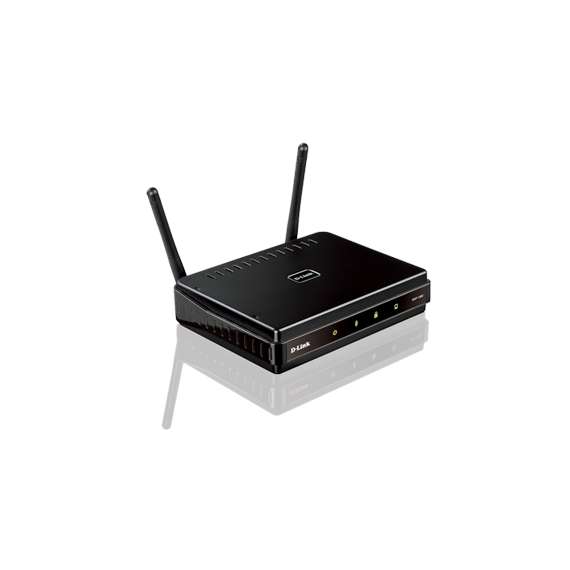

The D-Link DAP-1360 Wireless N Access Point connects to a broadband modem enabling you to wirelessly share your Internet connection. It is a 802.11n compliant device that delivers up to 14x faster speeds 1 and 6x farther range 1 than 802.11g while retaining backward compatibility with 802.11g and 802.11b devices. Enjoy surfing the web, checking e-mail, and chatting with family and friends online at faster speeds on your wireless network.
Protect Your Wireless Network & Data
The DAP-1360 provides 64/128-bit WEP encryption and WPA/WPA2 security to protect your network and wireless data. This device also supports Wi-Fi Protected Setup (WPS) to quickly and securely setup a wireless network. In addition, the access point features m AC address filtering and a disable SSID broadcast function to limit outsiders’ access to your home and office network.
Configure Your AP for Different Applications
The DAP-1360 can be configured to operate in seven different modes as needed. The Access Point mode allows the device to act as a central hub for wireless users. The Wireless Client mode is available to enable the DAP-1360 to connect to another access point. There is a Bridge mode to join two wired networks (LANs) together and a Bridge with AP mode so the device can act as a wireless hub and a bridge at the same time. The Repeater mode extends wireless coverage to cover all “dead” spots. A WISP Client Router mode allows wireless Internet service subscribers to share Internet connection with home/office Ethernet-enabled computers without the need for an extra router.finally, the device can act as a WISP Repeater to let WISP subscribers share their Internet connection with wired and wireless computers without any extra routers.
Install Your AP Quickily & Easily
With the D-Link Setup Wizard, you can set up your wireless network in minutes. It configures your DAP-1360’s operating mode and makes it easy to add new wireless devices to the network. Create a simple wireless network for your home and office quickly and easily with the DAP-1360.
Technical Specifications
NETWORK STANDARDS | 802.11n wireless LAN 802.11g wireless LAN 802.11b wireless LAN 802.3/802.3u 10BASE-T/100BASE-TX Ethernet ANSI/IEEE 802.3 NWay auto-negotiation |
|
DEVICE INTERFACES | 802.11g/n wireless LAN One 10/100BASE-TX Ethernet LAN port |
|
OPERATING FREQUENCY | 2.4 to 2.4835ghz | |
OPERATING MODES | Access Point Wireless Client Bridge Bridge with AP Repeater WISP Client Router WISP Repeater |
|
SECURITY | 64/128-bit WEP data encryption WPA-PSK, WPA2-PSK WPA-EAP, WPA2-EAP TKIP, AES MAC address filtering SSID broadcast disable function WPS (Wi-fi Protected Setup) |
|
DEVICE MANAGEMENT | Web-based management through Microsoft Internet Explorer 6 or higher,firefox 1.5 or higher, or other Java-enabled browser | |
DIAGNOSTIC LEDS | Power Wireless Security LAN |
|
POWER INPUT | 5V DC/1.2 A external power adapter | |
DIMENSIONS (WxDxH) | 147.5 x 113 x 31.5 mm(5.81 x 4.45 x 1.24 inches) | |
CERTIFICATIONS | FCC Class B CE Wi-fi b/g/n |
