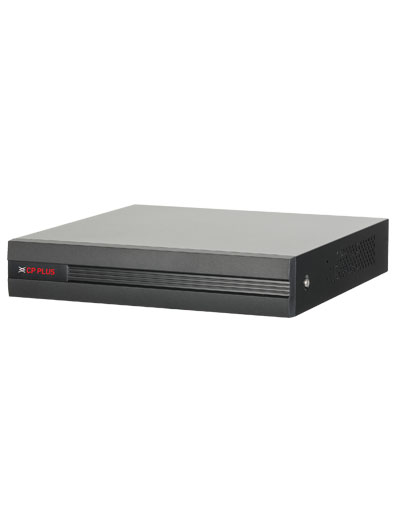

CP Plus CP-UVR-1601F1-IC 16 Channel 1080P Cosmic DVR

CP Plus CP-UVR-1601F1-IC 16 Channel 1080P Cosmic DVR

Specification

Processor : Embedded processor
Operating System : Embedded LINUX
IP Camera Input : 16+8 channels, each channel up to 6MP
Two-way Talk : Reuse audio in/out, RCA
User Interface :GUI
Video Output: 1 HDMI, 1 VGA
Video Resolution : VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
Video Compression : AI Instastream/Instastream/H.265/H.264+/H.264
Video Recording : Main stream: All channel 5M-N (1 fps–10fps); 4M-N/1080p (1 fps–15fps); 1080N/720p/960H D1/CIF (1 fps–25/30fps) Sub Stream: D1/CIF (1 fps–15fps)
Video Display Split : 1/4/8/9/16
Resolution : 5M-N; 4M-N; 1080P; 1080N; 720P; 960H; D1; CIF
Bit Rate : 32 kbps–6144 kbps per channel
Video Channel : 16 channel, BNC
Audio Compression : G.711A, G.711U, PCM
Audio Input : 1 Ch., RCA (external) ; 16 Ch., BNC (coaxial)
Audio Output : 1 channel, RCA
Motion Detection : Support
Video Loss : Support
Smart Phone : iPhone, iPad, Android Phone
Hard Disk : 1 SATA port, up to 16TB Each
Camera Blank : Support
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode : Time/Date, MD & Exact search (accurate to second)
Backup Mode : USB Device/Network
Playback : Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Max User Account : 128 users
Record Interval : 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet : 1 RJ-45 port (10/100/100MB)
Interface Ports : 2 USB Ports (USB 2.0)
Protocols : HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; InstaOn; IP Search, ONVIF 16.12, CGI Conformant
Power Supply : DC12V/2A
Power Consumption : <12W (without HDD)
Working Temp : -10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% RH
Dimension : 260.0 mm × 231.4 mm × 47.6 mm (W × D × H)
Weight : 0.93 kg (without HDD)
