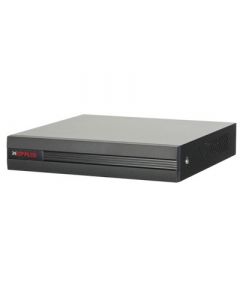

CP Plus CP-UVR-0801F1-HC 8 Channel 1080P Cosmic HD DVR

CP Plus CP-UVR-0801F1-HC 8 Channel 1080P Cosmic HD DVR

Specification

Processor : Embedded processor
Operating System : Embedded LINUX
IP Camera Input : 8+4 Ch., each channel up to 6MP
Two-way Talk : Reuse audio in/out, RCA
User Interface : GUI
Video Output : 1 HDMI, 1 VGA
Video Resolution : 1920×1080, 1280×1024, 1280×720
Video Recording : Main Stream: 1st & 2nd channels 5M-N(1~10fps); other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/ D1/CIF (1~25/30fps), Sub stream: CIF/QCIF (1~15fps)
Video Display Split : 1/4/8/9
Video Channel: 8 channel, BNC
Audio Output : 1 channel, RCA
Audio Channel : 1 channel, RCA
Motion Detection : MD Zones: 396 (22 × 18)
Video Loss : Supports
Smart Phone : iPhone, iPad, Android Phone
Hard Disk : 1 SATA port, up to 6TB
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Recording Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode : Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode : USB Device/Network
Playback : Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Max User Account : 128 users
Record Interval : 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet : RJ-45 port (100M)
Interface Ports : 1 HDMI, 1 VGA, 2 USB2.0
Protocols : HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 16.12, CGI Conformant
Power Supply : DC12V/1.5A
Power Consumption : <10W(without HDD)
Working Temp : -10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% RH
Dimension : 197mm x 192mm x 41mm
Weight: 0.54kg (without HDD)
