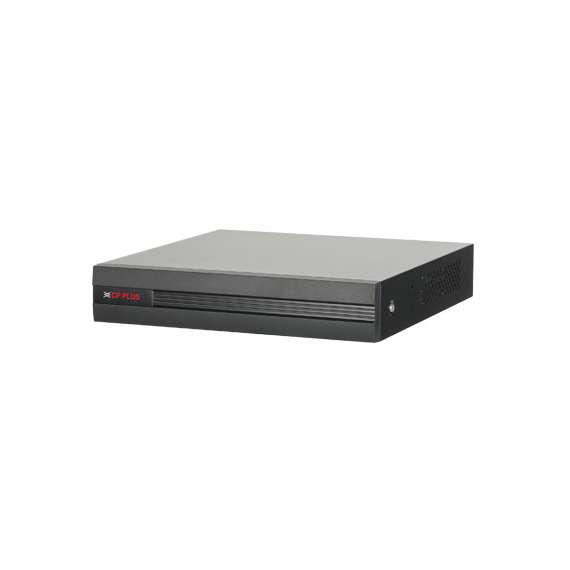

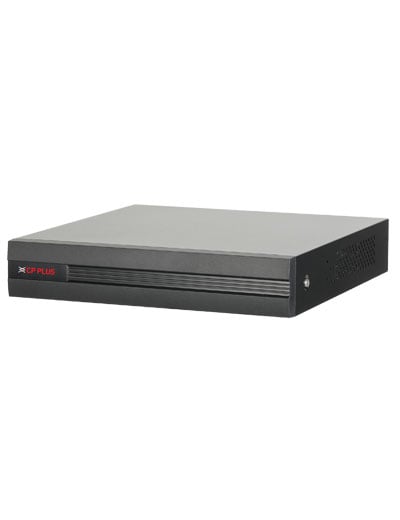

CP Plus CP-UVR-0401F1-HC 4 Channel 1080P Cosmic HD DVR

Power your surveillance system with the CP Plus CP-UVR-0401F1-HC DVR, supporting 4 analogue cameras and up to 6MP IP cameras, with H.265+ compression, high-resolution recording, HDD storage and remote smartphone access.

Specifications
  • Processor & OS: Embedded processor, Embedded Linux
  • Camera Inputs: 4-channel BNC, 4+2 IP camera inputs, up to 6MP per channel
  • Video Compression: H.265+, H.265, H.264+, H.264
  • Video Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
  • Recording: 5M-N at 1–10fps, 4M-N/1080P at 1–15fps, 1080N/720P/960H/D1/CIF at 1–25/30fps; sub-stream D1/CIF at 1–15fps
  • Video Output: 1 × HDMI, 1 × VGA, 1/4-channel split display
  • OSD: Camera title, time, video loss, camera lock, motion detection and recording status
  • Bit Rate: 32Kbps–6144Kbps per channel
  • Audio: 1 × RCA input, 1 × RCA output, two-way talk, G.711A/G.711U/PCM compression
  • Audio Specifications: 8kHz/16-bit sampling, 64Kbps per channel
  • Detection & Events: Motion detection, video loss, camera blank; recording, PTZ, tour, video push, email, FTP, snapshot, buzzer and screen tips
  • Storage: 1 × SATA port, supports HDDs up to 6TB
  • Playback: 1/4-channel playback
  • Remote Access: iPhone, iPad and Android smartphones
  • User Interface: GUI
  • Warranty: Standard manufacturer warranty
