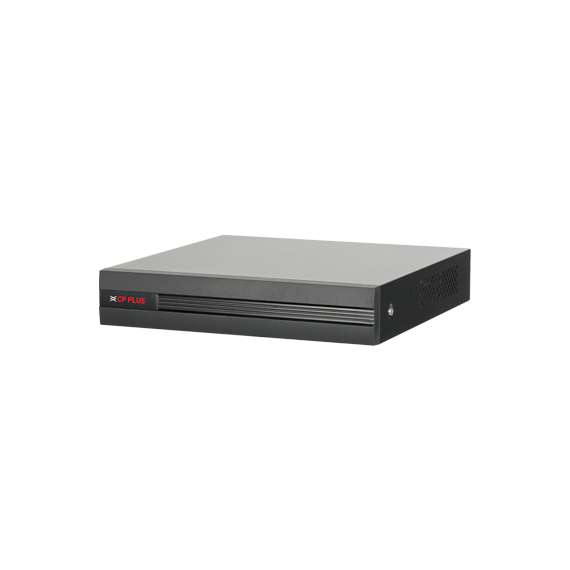

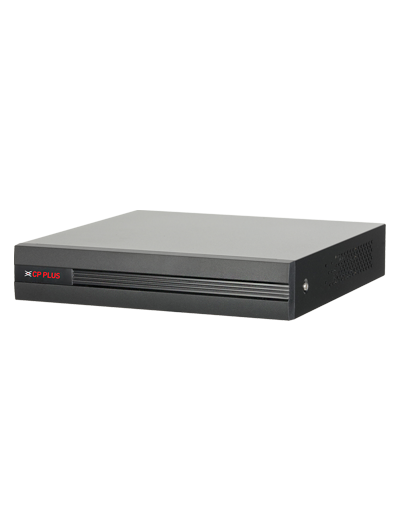

CP Plus CP-UVR-0401E1-CS 4 Channel 1080P Lite Cosmic HD DVR

Manage and record up to 4 surveillance cameras with the CP Plus CP-UVR-0401E1-CS DVR, supporting 2MP IP cameras, 1080P Lite recording, HDMI/VGA output, motion detection, remote smartphone access and multiple backup options.

Specifications
  • Processor & OS: Embedded processor, Embedded Linux
  • Camera Inputs: 4-channel BNC, 4+1 IP camera inputs, up to 2MP per channel
  • Video Compatibility: Supports analogue video, HDTVI/HDCVI/AHD/CVBS and H.264/H.265 IP cameras
  • Video Output & Display: 1 HDMI, 1 VGA, 1920 × 1080 / 1280 × 1024 / 1280 × 720, 1/4 split display
  • Recording: 1080N/720P/960H/D1/CIF at 1–25/30fps, sub-stream CIF at 1–15fps
  • Audio: 1-channel RCA audio output, two-way talk via RCA audio input/output
  • Recording Modes: Manual, scheduled/continuous, motion detection, video loss, tampering and alarm
  • Detection & Events: Motion detection, video loss; recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer and screen tips
  • Search & Playback: Time/date, motion and exact search; play, pause, rewind, fast/slow playback, digital zoom and backup
  • Backup & Connectivity: USB device/network backup, 100Mbps RJ-45 Ethernet
  • Network Protocols: HTTP/HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF 16.12 and CGI
  • Remote Access: iPhone, iPad and Android smartphones
  • USB & Interfaces: 2 × USB 2.0, 1 × HDMI, 1 × VGA, 4 × BNC
  • User Accounts & Recording: Up to 128 users, 1–60 min recording interval, 1–30 sec pre-record, 10–300 sec post-record
  • Power: DC 12V/1.5A, <10W without HDD
  • Operating Conditions: -10°C to +45°C, 10%–90% RH
  • Dimensions & Weight: 197 × 192 × 38mm, 0.55kg without HDD
  • Warranty: Standard manufacturer warranty
