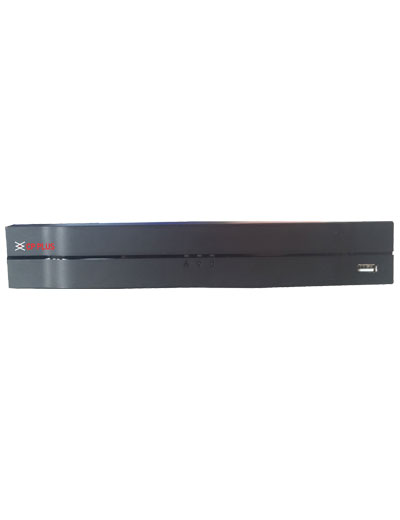

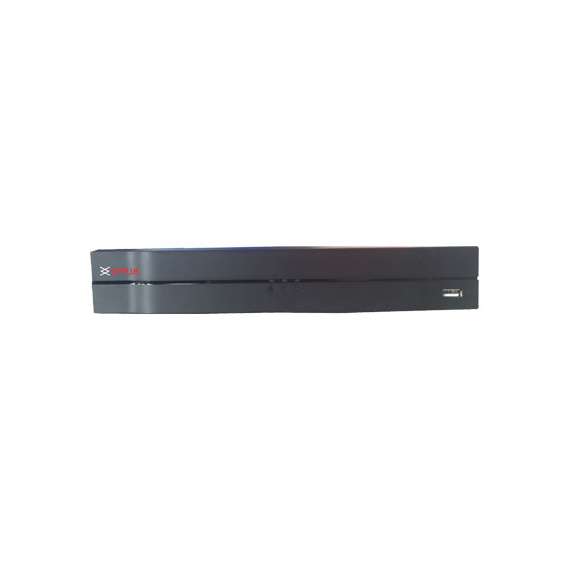

CP Plus CP-UNR-108F1 8 Channel NVR

CP Plus CP-UNR-108F1 8 Channel NVR

Specification

Processor : Industrial-grade embedded processor
Operating System : Embedded LINUX
User Interface: Web/operating in local GUI
Video Output : 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
Video Resolution: 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
Video Recording : 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
Video Display Split: 1/4/8/9
Bandwidth Incoming : 80 Mbps
Channel : 8
Motion Detection : Supports
Video Loss : Supports
Smart Phone : iPhone, iPad, Android Phone
Hard Disk : 1 SATA 2.0, up to 8TB Each
Recording Mode: Priority of record mode: Manual recording, alarm recording, motion detection recording, timed recording
Backup Mode : USB Device
Playback : Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off
Ethernet : 1 RJ-45 port (10/100Mbps)
Interface Ports : 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 )
Protocols : HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T/profile S/ profile G), RTSP, CGI, SDK
Power Supply : DC12V, 1.5A
Power Consumption : <10W (Without HDD)
Working Temp : -10°C to 45°C (+34°F to +113°F)
Dimension : 260 mm×225 mm×47.6 mm (W × L × H)
Weight : 0.81kg (without HDD)
