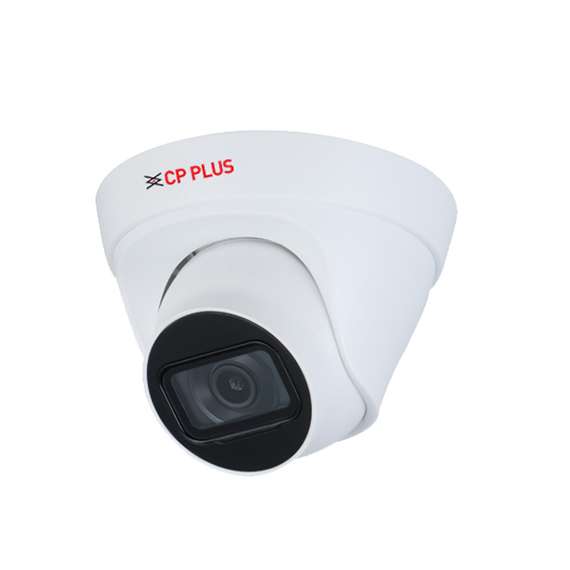

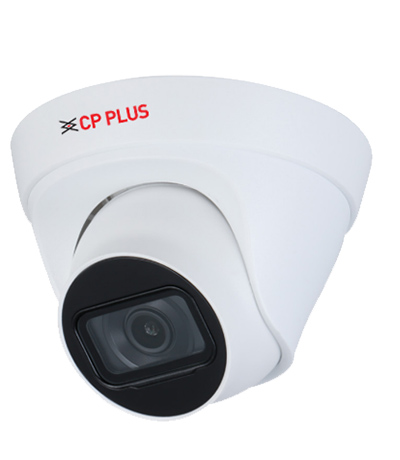

CP Plus CP-UNC-DA21PL3 2MP FHD IR Dome IP Camera

CP Plus CP-UNC-DA21PL3 2MP FHD IR Dome IP Camera

Specification

Image Sensor : 1/2.8” 2MP Progressive scan CMOS (0.9071 centimeters)
Minimum Illumination : [email protected]
Effective Pixels : 1920(H)x1080(V)
BodyType : Dome
Shutter Speed :Auto/Manual, 1/3~1/100000s
White Balance : Auto/natural/street lamp/outdoor/manual/regional custom
Lens : 3.6mm fixed lens (2.8mm optional)
Max Aperture : F2.0
Gain Control (AGC) : Auto/Manual
Lens Type : Fixed
S/N Ratio : >56dB
DORI Distance : 3.6mm– 49.7m (Detect) 19.9m (Observe) 9.9m (Recognize) 5m (Identify) 2.8mm– 38.6m (Detect) 15.4m (Observe) 7.7m (Recognize) 3.9m (Identify)
Video Compression : Instastream/ H.265/Smart H.264+/H.264/ H.264B/ MJPEG (only supported by the sub stream)
Angle of View : 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°
Back Light Comp. : BLC/ HLC/ DWDR
Frame Rate : Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)
Resolution : 2MP (1920 × 1080); 1.3MP (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF (352 × 288/352 × 240)
Motion Detection : Off / On (4 area, Rectangle)
Privacy Mask : 4 areas
ICR :Auto(ICR)/Color/B/W
ROI :Yes (4 areas)
Bit Rate : H.265: 12 Kbps–6144 Kbps H.264: 32 Kbps–6144 Kbps
Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; ONVIF (Profile S/Profile T); CGI; P2P; Genetec
Ethernet : RJ-45 (10/100Base-T)
User Account : 6 Users
Smart Phone: iPhone, iPad, Android Phone
IR Range: IR Range of 30 Mtr., Smart IR
Operating Temperature: -40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
Power Source : DC12V, PoE (802.3af)
Power Consumption : 1.4W (12V DC); 2.2W (PoE)
Weatherproof Standard: IP67
Dimension : 85.5 mm × Φ109 mm
Casing : Metal + Plastic
