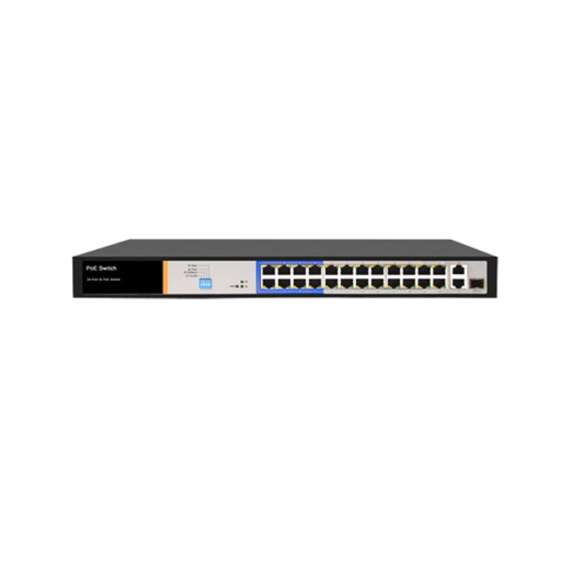

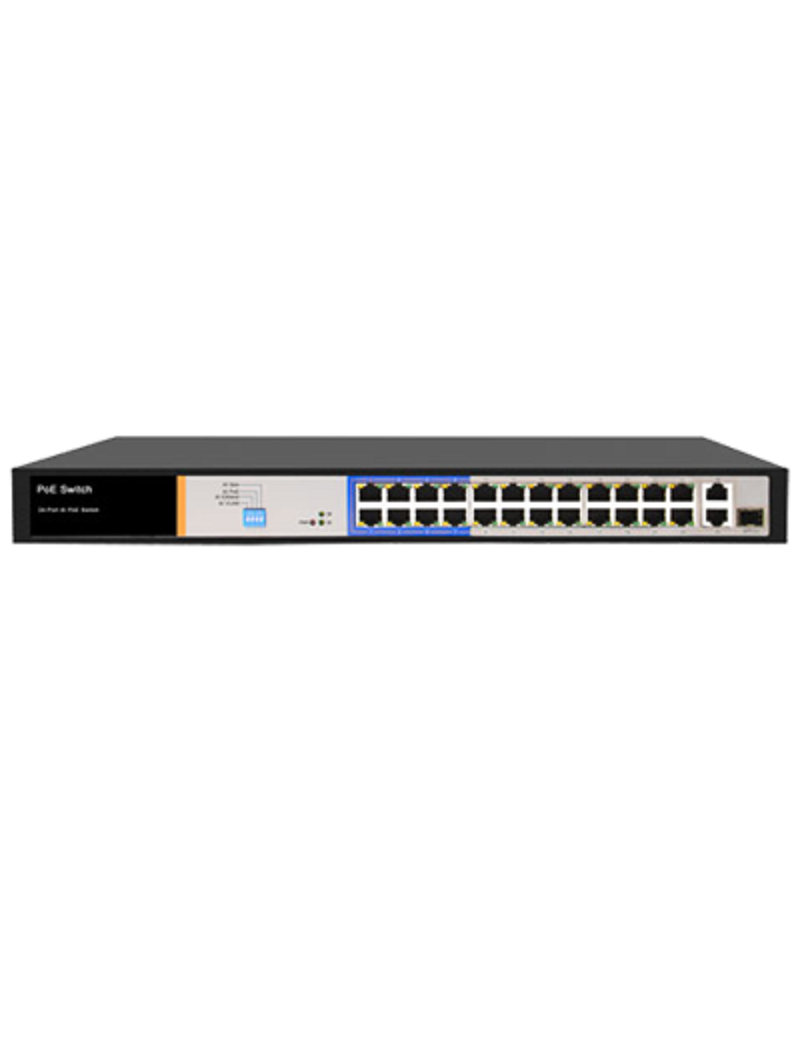

CP Plus CP-ANW-HP24G2F1-25 24 Port AI PoE Switch
Boost your surveillance network with the CP Plus CP-ANW-HP24G2F1-25, featuring 24 PoE+ ports, Gigabit uplinks, 250W PoE budget and 6KV surge protection for reliable IP camera connectivity.
Specifications
• PoE Ports: 24 × 10/100Mbps RJ45 PoE+ ports, up to 30W per port
• Uplink Ports: 2 × Gigabit RJ45, 1 × Gigabit SFP (1 Combo)
• Network Standards: IEEE 802.3i, 802.3u, 802.3x, 802.3ab, 802.3af, 802.3at
• PoE Budget: 250W
• Switching & Forwarding: 8.8Gbps bandwidth, 6.55Mpps forwarding rate, Store-and-Forward
• Packet Buffer & Jumbo Frame: 4Mbits, 9KB
• MAC Address Table: 8K
• Surge Protection: 6KV
• Power Supply: AC 100–240V, 50–60Hz
• Cooling: 1 × fan
• Operating Conditions: 0°C to +40°C, 10%–90% RH non-condensing
• Dimensions: 440 × 180 × 44mm (L × W × H)
• Warranty: Standard manufacturer warranty
