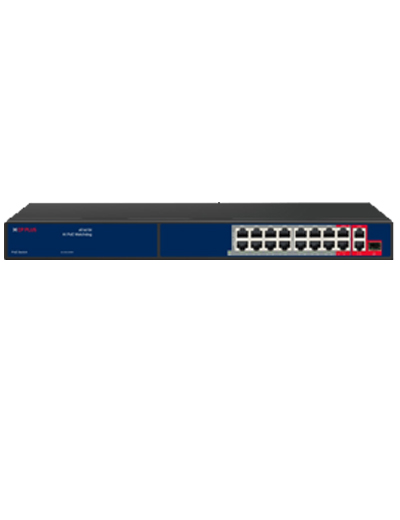

CP Plus CP-ANW-HP16G2F1-N30 16 Port AI PoE 2 Giga and 1 Giga SFP Switch
Power your surveillance network with the CP Plus CP-ANW-HP16G2F1-N30, featuring 16 PoE ports, Gigabit uplinks and SFP connectivity, with AI PoE functionality, 12.8Gbps switching capacity and 6KV lightning protection.
Specifications
• PoE Ports: 16 × PoE ports; Ports 1–15: 10/100Mbps PoE, Port 16: 10/100/1000Mbps PoE with BT support
• Uplink Ports: 2 × 10/100/1000Mbps RJ-45 Gigabit uplinks, 1 × 10/100/1000Mbps SFP uplink
• PoE Standards: IEEE 802.3af/at/bt, IEEE 802.3i, 802.3u, 802.3ab and 802.3x Flow Control
• Switching Capacity: 12.8Gbps
• LED Indicators: 16 × Link/Act, G1, G2/SFP2, PoE-MAX and Power
• MAC Address Table: 8K
• Lightning Protection: 6KV, IEC 61000-4-5
• Power Supply: AC 180–240V
• Operating Conditions: -30°C to +60°C, 10%–90% RH non-condensing
• Storage Conditions: -40°C to +70°C
• Dimensions: 430 × 180 × 45mm (L × W × H)
• Warranty: Standard manufacturer warranty
