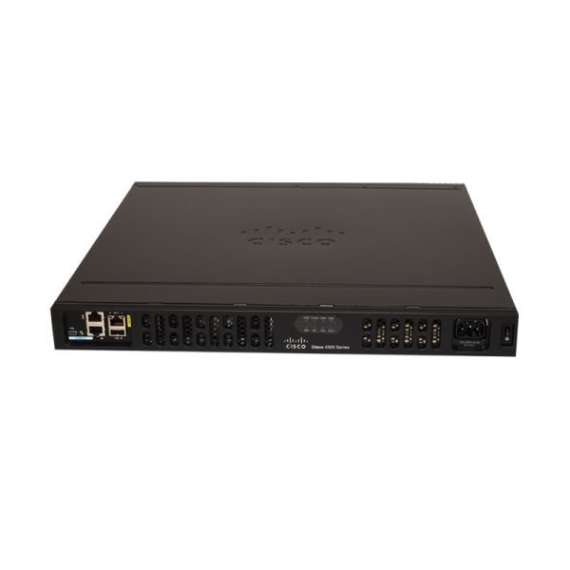

Cisco ISR4331-V/K9 Integrated Services Router

ISR4331-V/K9 Specification
Description
Cisco ISR4331-V/K9 (2GE,2NIM,1SM,4G FLASH,4G DRAM, Voice
Bundle)
Aggregate Throughput 100 Mbps to 300 Mbps
Total onboard WAN or LAN 10/100/1000 ports 3
RJ-45-based ports 2
SFP-based ports 2
Enhanced service-module slots 1
Doublewide service-module slots 0
NIM slots 2
OIR (all I/O modules) Yes
Onboard ISC slot 1
Default memory double-data-rate 3 (DDR3) error-correction-code
(ECC) DRAM
(Combined control/services/data planes)
4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data
planes)
16 GB
Default memory DDR3 ECC DRAM (data plane) NA
Maximum memory DDR3 ECC DRAM (data plane) NA
Default memory DDR3 ECC DRAM (control/services plane) NA
Maximum memory DDR3 ECC DRAM (control/services plane) NA
Default flash memory 4 GB
Maximum flash memory 16 GB
External USB 2.0 slots (type A) 1
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port - RJ45 (up to 115.2 kbps) 1
Serial auxiliary port - RJ45
(up to 115.2 kbps)
1
Power-supply options Internal: AC and PoE
Redundant power supply N/A
AC input voltage 100 to 240 VAC autoranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 3 to 1.3A
AC input surge current 60 A peak and less than 5 Arms per half cycle
Typical power (no modules) (watts) 42
Maximum power with AC power supply (watts) 250
Maximum power with PoE power supply (platform only) (watts) 530
