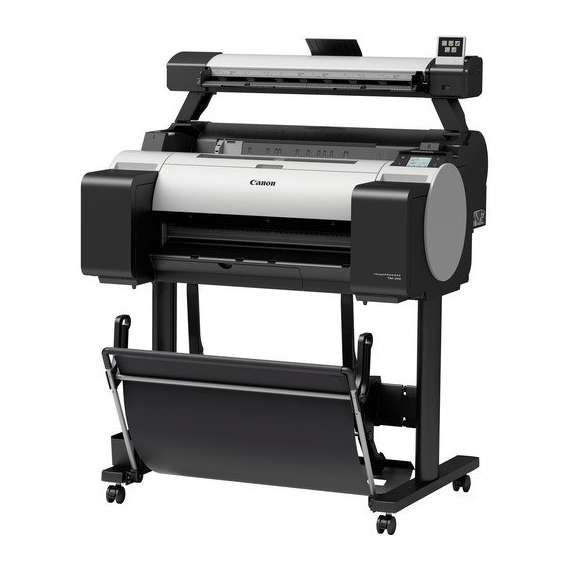

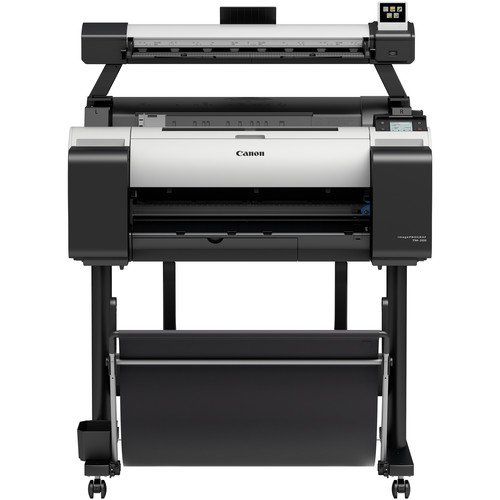

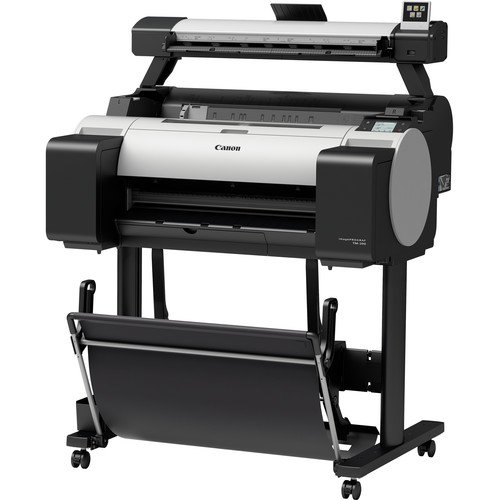

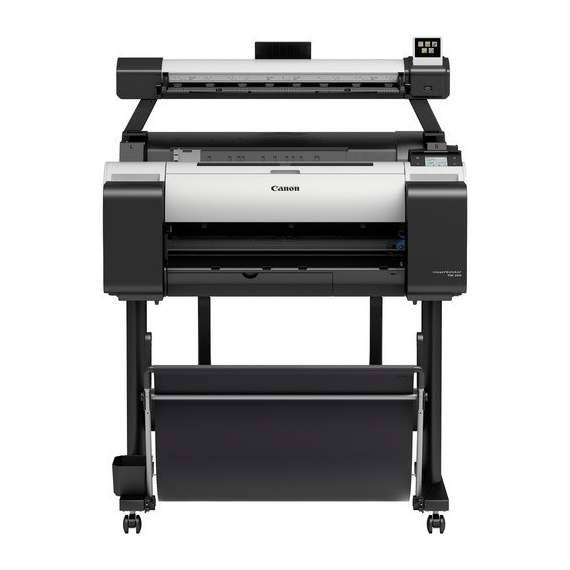

Canon imagePROGRAF TM-200 24" Large-Format Inkjet Printer‎

Overview

The core technologies of the imagePROGRAF TM-200 deliver ultra-sharp lines and colour vibrancy for fast, easy large-format printing. With nearly 60% sound reduction and flush installation, it’s perfect for smaller offices with limited space.


Sharp & vivid
Even plain paper printing is high-quality with the 5-colour full pigment Lucia TD ink system.

Quick printing
Increase print output with the help of a 6-channel, 1.07-inch, optimised print head.

Small footprint
Compact, flush-fitting design with full front usability maximises available office space.

Quiet operation
Perfect for smaller offices – reduced vibrations and smoother processes make 60% less noise.

Agile software
Get production help from Direct Print & Share, PosterArtist Lite, Free Layout Plus, and more.

Specification

Technology
Printer Type
5 Colour 24"/610mm
Print Technology
Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution
2,400 x 1,200 dpi
Number of Nozzles
15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)
Line Accuracy
±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch
1,200 dpi (2 lines)
Ink Droplet Size
minimum 5 pl per colour
Ink Capacity
Sales Ink: 130ml/300ml
Bundled Starter Ink: 130ml (Matte Black)/90ml (Black, Cyan, Magenta, Yellow)
Ink Type
Pigment inks - Black, Matte Black, Cyan, Magenta, Yellow
OS Compatability
Microsoft Windows 32 Bit: Windows 7, 8.1, 10
Microsoft Windows 64 Bit: Windows 7, 8.1, 10, Windows Server 2008R2, Windows Server 2012/2012R2, Windows Server 2016
Apple Macintosh: OSX 10.10.5 - OSX 10.11, macOS 10.13
Printer Languages
SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02)
Standard Interfaces
USB B Port: Built-in Hi-Speed USB
Ethernet: IEEE 802.3 1-base-T/IEEE 802.3u 100base-TX/IEEE 802.3ab 1000base-T/IEEE 802.3x Full Duplex
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN

Memory

Standard Memory
2 GB
Hard Drive
N/A
Printing Speed
CAD Drawing
Plain Paper (A1 page size)
0:24 (Fast Economy Mode)
0:27 (Fast)
0:42 (Standard)
Poster
Plain Paper (A1 page size)
0:25 (Fast)
0:44 (Standard)
Heavy Coated Paper (A1 page size)
0:55 (Fast)
1:22 (Standard)

Media Handling

Media Feed and Output
Roll paper: One Roll, Uppper-loading, Front Output
Cut sheet: Upper-loading, Front Output (Manual feed using media locking lever)
Media Width
Roll paper: 203.2 -610 mm
Cut sheet: 203.2 - 610 mm
Media Thickness
Roll/Cut: 0.07 - 0.8 mm
Minimum Printable Length
Roll paper: 203.2 mm
Cut sheet: 279.4 mm
Maximum Printable Length
Roll paper: 18 m (Varies according to the OS and application)
Cut sheet: 1.6 m
Maximum Media Roll Diameter
150 mm
Media Core Size
Internal diameter of roll core: 2"/3"
Margins Recommended area
Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable area
Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet for Apple AirPrint Only: Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm
Cut sheet for others: Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity
Manually switchable by user
Borderless Printing Width (Roll Only)
515mm (JIS B2), 594mm (ISO A1), 10", 14", 17", 24"
[Printable] 257mm (JIS B4), 297mm (ISO A3), 329mm (ISO A3+), 420mm (ISO A2), 8", 12", 16", 20", 300mm, 500mm, 600mm
*Some environmental conditions may not produce the desired result
Maximum number of delivered prints
Standard position: 1 sheet
Flat position: 20 sheets on A2 landscape (excludes strong curled condition)
Dimensions and Weight
Physical Dimensions and Weight
Main Unit, Stand and Basket
982 x 887 x 1060 mm (Basket Open)
982 x 757 x 1060 mm (Basket Closed)
52 kg (including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight
Printer (Main unit with pallet): 1152 x 913 x 705 mm, 69 kg
Stand + Basket: 1155 x 824 x 268 mm, 18 kg

Power and Operating Requirements

Power Supply
AC 100-240V (50-60Hz)
Power Consumption
Operation: 69 W or less
Sleep mode: 3.6 W or less
Default setting for the time to enter the Sleep mode: Approx. 5 Minutes
Power off: 0.3 W or less

Operating Environment

Temperature: 15-30℃,
Humidity: 10-80% RH (no dew condensation)

Accoustic Noise (Power/Pressure)

Operation: 44 dB (A) (Plain paper, line drawing, standard mode)
Standby: 35 dB (A) or less
Operation: 6.0 Bels (Plain paper, line drawing, standard mode) (Measured on ISO 7779 standard)
Regulations
Europe: CE mark, Russia: EAC
Certificates
TUV, CB

Optional Items

Printer Stand: SD-23
2/3" Roll Holder: RH2-28
Consumables

User Replaceable Items

Ink Tank: PFl-120 (130ml), PFl-320 (300ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
