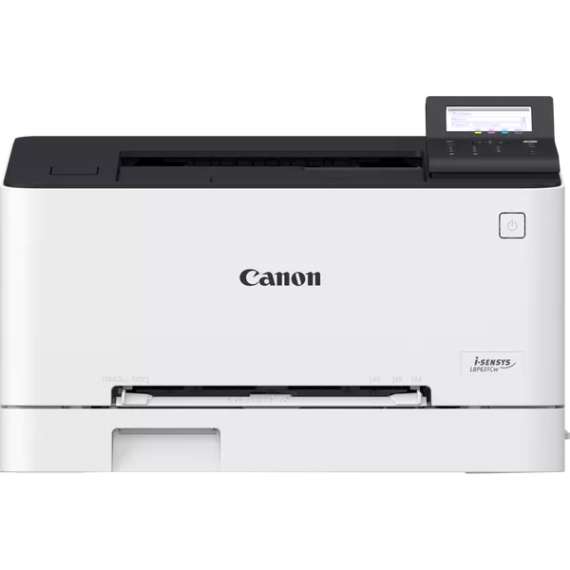

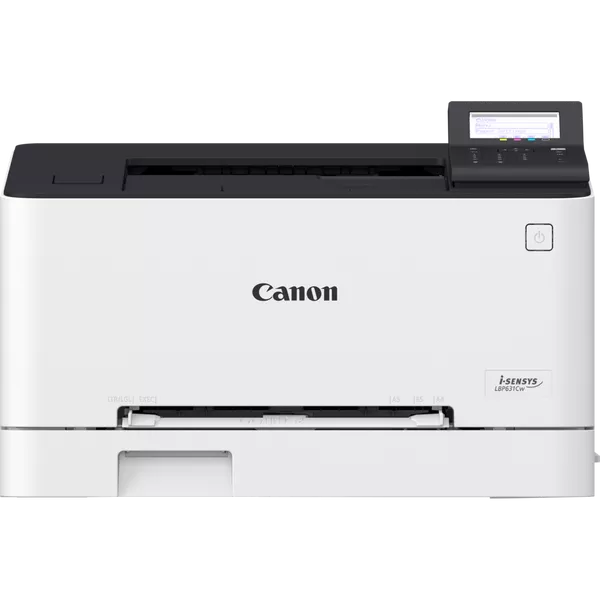

Canon i-SENSYS LBP631Cw A4 Colour Laser Printer

Machine Type
Colour laser single function

Available Functions
Print

Print Specifications

Print Speed

Single sided: Up to 18 ppm (A4)
Up to 38 ppm (A5-Landscape)
Printing Method

Colour laser beam printing
Print Resolution

Up to 1200 x 1200 dpi
Warm-up Time

Print ready message shown:
Approx. 13 seconds or less from power on
First-Print-Out Time

Colour approx.: 10.5 seconds or less
Mono approx.: 10.4 seconds or less
Printer Languages

UFRII
Print Margins

5 mm-top, bottom, left and right
Advanced Printing Features

Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
iOS: AirPrint, Canon PRINT Business app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

Media Handling

Paper Input (Standard)

250-sheet cassette
1-sheet manual feed slot
Maximum Paper Input Capacity

Up to 251 sheets
Paper Output

100-sheet
Media Types

Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Label, Post card, Envelope
Media Sizes

Cassette:
A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 76.2 x 127 mm Max. 216.0 x 355.6 mm.

Multi-purpose tray:
A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.
Media Weights

Cassette: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
Multi-purpose tray: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)

Interface & Software

Interface Type

USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T
Wireless 802.11b/g/n, Wireless Direct Connection
Operating System Compatibility

Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022
Mac OS X version 10.11 & up
Linux4

Network Protocol

Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)

Management:
SNMPv1, SNMPv3 (IPv4, IPv6)

Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless):
Infrastructure Mode:
WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
Access Point Mode:
WPA2-PSK (AES)
Software and Printer Management

Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.

General Features

Recommended Monthly Print Volume

250 - 2,500 pages per month
Duty Cycle

Max. 30,000 pages per month1
Processor Speed

800MHz x 2
Memory

1GB
Control Panel

5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad
Dimensions with Trays (W x D x H)

430 mm x 418 mm x 287 mm
Weight

Approx. 14.9 kg

Operating Environment

Temperature: 10 to 30ºC (50 to 86ºF)
Humidity 20 to 80% RH (no condensation)
Power Source

220-240V (±10%) 50/60Hz (±2Hz)

Power Consumption

Maximum: Approx. 850W or less
Active printing: Approx. 390W
Standby: Approx. 8.5W or less
Sleep: Approx. 0.8W or less
Typical Electricity Consumption (TEC): 0.19 kWh/week6
For detailed information relating to Lot26 regulation, please go to: http://www.canon-europe.com/For_Work/Lot26/index.aspx
Noise Levels

Sound power2
Active: 66 dB or less
Standby: Inaudible

Sound pressure2
Active: 52 dB or less
Standby: Inaudible

Consumables

Cartridges

Cartridge 067 Black (1,350 pages )
Cartridge 067H Black (3,130 pages )
Cartridge 067 Cyan (1,250 pages )
Cartridge 067H Cyan (2,350 pages )
Cartridge 067 Magenta (1,250 pages )
Cartridge 067H Magenta (2,350 pages )
Cartridge 067 Yellow (1,250 pages )
Cartridge 067H Yellow (2,350 pages )
