- 45MP Full-Frame CMOS Sensor
- DIGIC X Image Processor
- 8K30 Raw and 4K120 10-Bit Internal Video
- Sensor-Shift 5-Axis Image Stabilization
- 12 fps Mech. Shutter, 20 fps E. Shutter
- Dual Pixel CMOS AF II with 1053 Points
- 0.5″ 5.76m-Dot OLED EVF
- 3.2″ Vari-Angle Touchscreen LCD
- Subject Tracking with Deep Learning
- CFexpress & SD UHS-II Memory Card Slots
Description

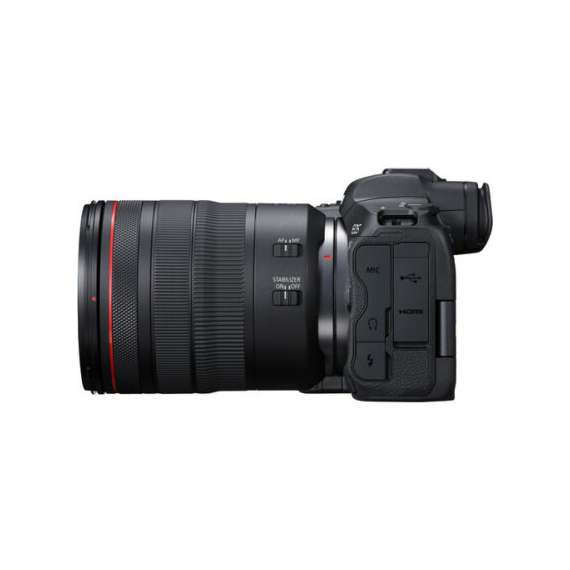

For the professional image-maker who needs resolution, speed, and video capabilities, there is the Canon EOS R5. Setting a new standard for versatility, this full-frame mirrorless camera features a newly developed 45MP CMOS sensor, which offers 8K raw video recording, 12 fps continuous shooting with a mechanical shutter, and is the first EOS camera to feature 5-axis sensor-shift image stabilization.
Beyond just resolution, the sensor also pairs with the refined DIGIC X image processor to usher in a new generation of Dual Pixel CMOS AF for quick, smooth, and intelligent focusing performance using 1053 selectable points that cover the entire field of view. This focusing system has also been updated to make use of Deep Learning technology for improved subject tracking as well as precise eye, face, and head-detection for both people and animals.
Professional mirrorless redefined
Whatever you shoot, however you shoot it, the EOS R5 will let you be creative in ways you simply couldn’t before. Capture sensational 45 megapixel photos at up to 20 frames per second*, or cinematic 12 bit 8K RAW video using the entire width of the camera’s sensor. Advanced AF is programmed using deep-learning artificial intelligence, while in-body image stabilization works in concert with a lens’s own IS to provide up to 8 stops* of protection against camera shake.
See detail like never before
A next-generation 45 megapixel full-frame CMOS sensor captures incredible clarity, low noise and wide dynamic range: the perfect partner for our advanced RF lenses.
Stay sharp, stay focused
Dual Pixel CMOS AF II is lightning-fast to focus and boasts 5940 AF selectable positions, covering virtually 100% of the frame. Fast-moving subjects are kept sharp, even when moving quickly and unpredictably, while Face/Eye detection is superb for shallow-depth-of-field portraits.
Ground-breaking intelligent AF
The camera’s autofocus is programmed using a deep-learning AI – first developed for our ground-breaking EOS-1D X Mark III. This enables the EOS R5 to recognise and track a subject’s face and eyes with new levels of accuracy and precision, even when viewed from the side. This tracking ability is also available when photographing dogs, cats and birds, keeping them in sharp focus as they move – a first for EOS cameras.
Ultimate speed, ultimate quality. Game-changing performance that will take your creativity to new heights.
No other camera comes close to the EOS R5. Capture 45 megapixel, full-frame images at a staggering 20fps in complete silence and with full autofocus tracking. And, for situations that need it, a mechanical shutter is also available, allowing class-leading shooting speeds up to 12fps.
Setting new standards for filmmakers… all over again
As the pioneers of DSLR video, and the developers of the acclaimed Cinema EOS range of cameras and lenses, we were well-placed to give the EOS R5 some formidable filmmaking capabilities. Capture superb 12-bit RAW video internally at 8K, or record 4K (4:2:2 10-bit) at frame rates up to 120p for exceptional slow-motion effects. All this using the full-width of the camera’s full-frame sensor for a truly cinematic look. Dual Pixel CMOS AF II with Face/Eye Detection keeps things looking sharp and allows impressive pull-focus transitions in all video modes.
Will transform the way you work
The EOS R5 uses an always-on Bluetooth Low Energy connection to maintain a continuous link with a smart device. Simply launch the Canon Camera Connect app and the camera establishes a fast Wi-Fi connection that enables photographers to browse, review and transfer images, as well as shoot remotely.
Camera |
Shutter Speed |
Electronic Front Curtain Shutter 1/8000 to 30 Seconds Electronic Shutter 1/8000 to 0.5 Seconds Mechanical Shutter 1/8000 to 30 Seconds
|
White Balance |
Colour Temperature Custom Daylight Fluorescent (White) Auto Cloudy Flash Shade Tungsten
|
Camera Format |
Full-Frame (1x Crop Factor)
|
|
Imaging/ Image Sensor |
Pixels |
Actual: 47.1 Megapixel Effective: 45.0 Megapixel
|
Max Resolution |
8192 x 5464
|
Aspect Ratio |
1:1 16:9 3:2 4:3
|
Sensor Type |
CMOS
|
Sensor Size |
36 x 24 mm
|
Image File Format |
JPEG RAW
|
ISO Sensitivity |
Auto, 100 to 51200 (Extended: 100 to 102400)
|
Bit Depth |
14-bit
|
Image Stabilization |
5-Axis Sensor-Shift
|
|
Lens |
Lens Mount |
Canon RF
|
Focus Type |
Auto & Manual
|
|
Shutter |
Self Timer |
2/10-Second Delay
|
|
Focus & Optics |
Focus Mode |
Continuous-servo AF (C) Manual Focus (M) Single-servo AF (S)
|
Autofocus Points |
Phase Detection: 1053
|
Autofocus Sensitivity |
-6 to +20 EV
|
|
Viewfinder & Display |
Viewfinder Coverage |
100%
|
Viewfinder Type |
Electronic (OLED)
|
Viewfinder Eye Point |
23.00 mm
|
Viewfinder magnification |
Approx. 0.76x
|
Viewfinder resolution |
5,760,000 Dot
|
Viewfinder Size |
0.5"
|
Display Type |
Articulating Touchscreen LCD
|
Display Screen |
3.2"
|
Display Resolution |
2,100,000 Dot
|
Diopter Adjustment |
-4 to +2 m
|
|
Exposure Control |
Exposure Modes |
Aperture Priority Manual Program Shutter Priority
|
Metering Method |
Center-weighted average metering Evaluative Metering Partial Metering Spot metering
|
Metering Range |
3 to 20 EV
|
Exposure Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps)
|
Continuous Shooting |
Electronic Shutter Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG) Mechanical Shutter Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
|
Interval Recording |
Yes
|
|
Recording |
Audio Recording |
Built-In Microphone (Stereo) External Microphone Input
|
Audio Format |
Linear PCM AAC
|
Video Recording |
Yes, NTSC/PAL
|
Recording Modes |
DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s] DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p/59.94p/100p/119.88p [170 to 1880 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [12 to 180 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [28 to 230 Mb/s] H.264 4:2:0 8-Bit DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [470 to 1300 Mb/s] H.265 4:2:2 10-Bit DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [680 to 1300 Mb/s] Raw 12-Bit DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [2600 Mb/s] UHD 4K (3840 x 2160) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p [170 to 1880 Mb/s] UHD 8K (7680 x 4320) at 23.976p/25p/29.97p [470 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.976p/25p/29.97p [680 to 1300 Mb/s]
|
External Recording Modes |
4:2:2 10-Bit DCI 4K (4096 x 2160) up to 59.94p UHD 4K (3840 x 2160) up to 59.94p
|
Recording Limit |
Up to 29 Minutes, 59 Seconds
|
|
Video Streaming |
|
Connectivity |
Connectivity |
1 x USB Type-C 3.5mm Headphone 3.5mm Microphone HDMI D (Micro)
|
GPS |
No
|
|
Flash |
Built-in Flash |
No
|
Dedicated Flash System |
eTTL
|
External Flash Connection |
Hot Shoe
|
Flash Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps)
|
Max Sync Speed |
1 / 250 Second
|
|
Interface |
Memory Card Slot |
Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II)
|
|
Environmental |
Operating Temperature |
32 to 104°F (0 to 40°C)
|
Operating Humidity |
0 to 85%
|
|
Power |
Battery Type |
1 x LP-E6NH Rechargeable Lithium-Ion
|
|
