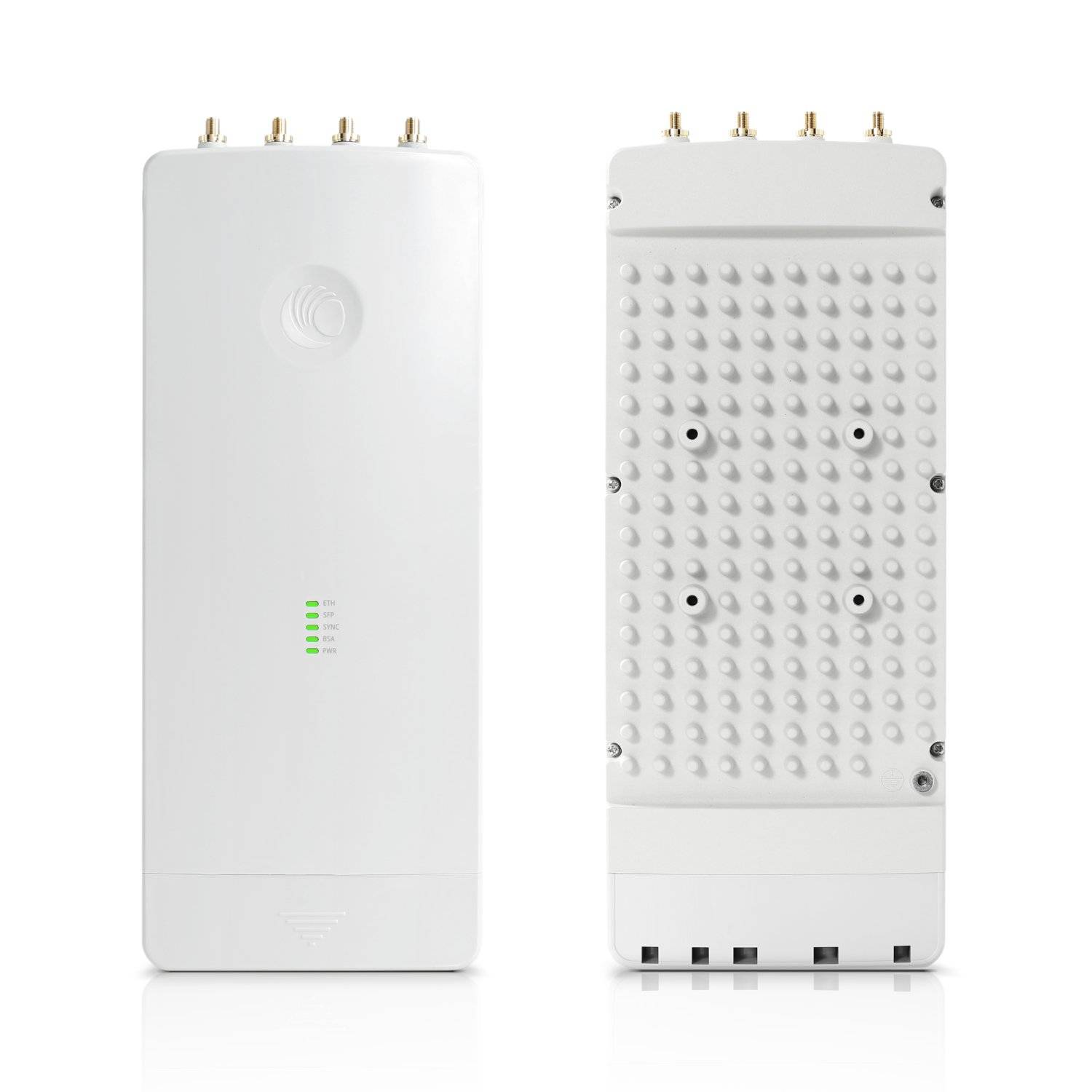

Cambium ePMP 3000 5GHz Connectorized MU-MIMO 4x4 Access Point

Cambium Networks’ ePMP 3000 is a 4X4 MU-MIMO access point that can double the throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time. In addition, the ePMP 3000 continues interference mitigation techniques with support of the beam steering antenna for uplink, dynamic filtering for neighboring channel interference, and the robust software from the ePMP product line. The ePMP 3000 AP system consists of the ePMP 3000 AP, a 4X4 sector antenna, optional beam steering antenna and a 25 dBi and 16 dBi subscriber modules. The ePMP 3000 system boasts high packet per second performance, peak throughput of 1.2 Gbps and supporting subscriber modules with 600 Mbps of peak throughput.

Product Features

• MU-MIMO support with peak throughput of 1.2 Gbps
• 256QAM-5/6, 80 MHz support
• Supports a wide frequency range: 4910 – 5970 MHz
• 802.3at compliant 100/1000BaseT interface
• Frequency re-use with GPS sync, interference mitigation with beam steering antenna and dynamic filtering

Key Advantages

Frequency Reuse: Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.

Unmatched Performance and Scalability: With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler up to 120 simultaneously active subscriber modules can be served without performance degradation.

Industry-Leading Interference Tolerance: The intelligent filtering capability on the receive side makes the ePMP 3000 immune to the effects of strong off-channel interferers and on the transmit side serves to reduce off-channel noise for better radio co-location.

Industry-Leading Spectral Efficiency: MU-MIMO in the downlink doubles the sector capacity by serving two MIMO users at the same time.
