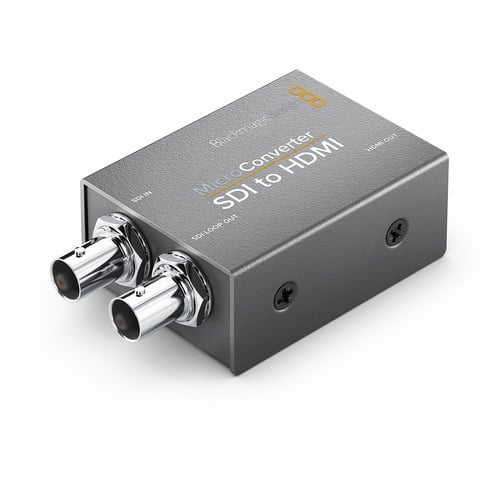

Blackmagic Micro Converter SDI TO HDMI (with Power Supply)
Product Highlights
- 1x SD/HD/3G-SDI Input & 1 x Loop Output
- 1 x HDMI Type A Output
- DCI 2K SDI In/Out | 1080p60 HDMI Out
- AC Power Supply & Socket Adapters
- 3D LUT for Calibrating or Loop Output
- SDI A/B Selection | USB Power
- Embedded Audio
- Compact, Rugged Design
- LED Video & Power Signal Indicators
| More |
| Video Input Connectors |
1 x BNC (3G-SDI / HD-SDI / SD-SDI)
|
| Input Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
NTSC 59.94 fps
PAL 50 fps
|
| Audio Input Connectors |
None
|
| Embedded Audio Input |
SDI
|
| Video Output Connectors |
1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Loop Output)
1 x HDMI
|
| Output Video Format SDI |
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
NTSC 29.97 fps
PAL (768 x 576) 25 fps
|
| Output Video Format HDMI |
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
NTSC 29.97 fps
PAL (768 x 576) 25 fps
|
| Audio Output Connectors |
None
|
| Embedded Audio Output |
HDMI
SDI
|
| Video Standard Compliance |
SMPTE 259M/292M/296M/424M/425M-A/425M-B
|
| HDCP Support |
Version 2.2
|
| Other I/O |
1 x USB Type-C Input
|
| Expansion Slots |
None
|
| Tally Light |
Yes
|
| OS Compatibility |
macOS 10.14.15 or Later
Windows 10
|
| Power Connector |
1 x USB Type-C (4.4 to 5.2 VDC) Input
|
| Power Consumption |
2.5 W
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
0 to 90%
|
| Weight |
5.29 oz / 150 g
|
|
