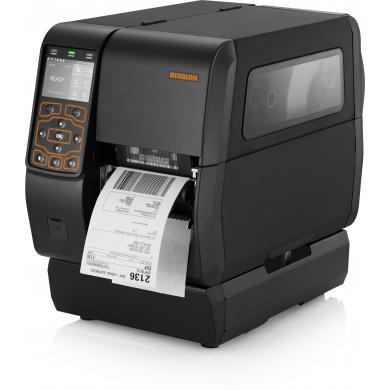

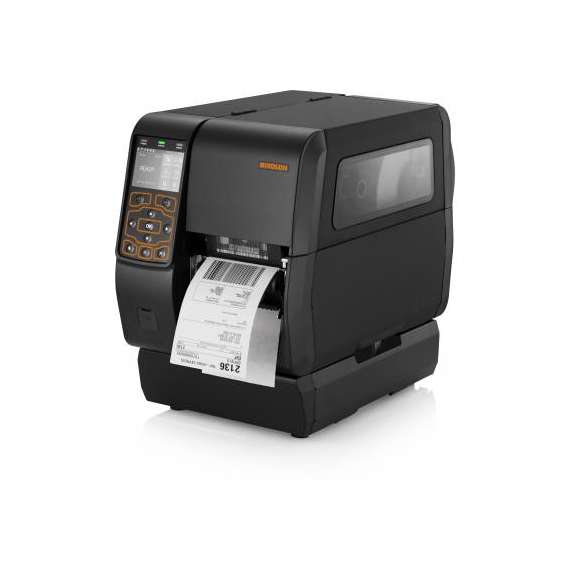

Bixolon XT5-40 Label Printer

The Bixolon XT5-40 is a high-performance industrial label printer designed for fast, reliable, and high-volume printing in logistics, manufacturing, warehousing, and retail environments. It supports both thermal transfer and direct thermal printing, delivering sharp barcode and label output with advanced connectivity and flexible media handling.

Specifications

• Printer type: industrial label printer
• Print method: thermal transfer, direct thermal
• Print speed: up to 14 ips (356 mm/sec) for XT5-40
• Print resolution: 203 dpi (XT5-40), 300 dpi (XT5-43 variant)
• Print width: up to 104 mm (XT5-40)
• Print length: up to 4,000 mm
• Media type: gap, black mark, notch, continuous, fan-fold
• Media width: 25–114 mm
• Media roll diameter: up to 203 mm
• Media thickness: 0.06–0.30 mm
• Ribbon types: wax, wax/resin, resin
• Ribbon width: 50–110 mm
• Ribbon length: up to 450 m
• Core size: 25.4 mm
• Sensors: transmissive (adjustable), reflective (adjustable), ribbon-end, head open
• Memory: 512 MB SDRAM, 512 MB Flash
• Interface: USB, Serial, Ethernet, optional WLAN, Bluetooth, GPIO, parallel
• Ethernet: 10/100/1000 Mbps (Gigabit support)
• Wireless: Wi-Fi 802.11 a/b/g/n (optional configuration)
• Display: 3.5-inch TFT LCD (optional models vary)
• Operating system support: Windows, Linux, macOS drivers available
• Barcode support: 1D and 2D including QR, PDF417, Data Matrix, Code 128, UPC, EAN
• Software support: Bartender Ultralite, Label Artist, SDKs for Android/iOS/Windows/Linux
• RFID support: UHF EPC Gen2 (optional)
• Auto cutter: optional
• Peeler and rewinder: optional accessories
• Operating temperature: 5°C to 40°C
• Storage temperature: -20°C to 60°C
• Humidity range: 10%–80% operating
• Weight: approx. 13.98 kg (standard configuration)
• Use cases: logistics, warehousing, manufacturing, shipping labels, retail labeling, asset tracking
• Build: industrial-grade metal construction for high-duty cycle environments
