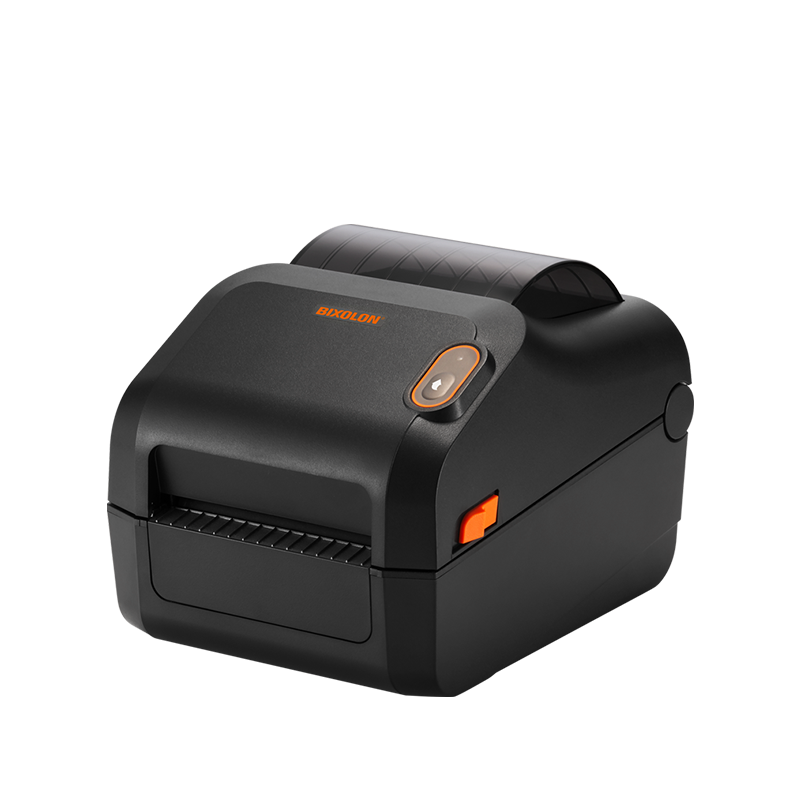

Bixolon XD3-40D Desktop Direct Thermal Printer

Overview

- Supporting Direct Thermal(XD3-40d) and
Thermal Transfer(XD3-40t) label printing
- Printing speeds of up to 5ips (127mm/sec)
- Fully compatible with market-leading
programming languages
- Simple to set up through a single LED
- Smart switch programming languages
without setting the mode

User-Friendly Design
- Easy paper loading with adjustable paper guide and holder
- Easy set up media sensor
- Optional peeler and external paper supply
- Toolless maintenance of roller and print head
- Suitable for both 1/2-inch and 1-inch core ribbon
(74 m and 300 m)

Connectivity Options
- Standard: USB
- Optional: USB + Serial + Ethernet

Specification

Printer Specifications

Print Method

XD3-40d: Direct Thermal
XD3-40t: Thermal Transfer or Direct Thermal
Print Speed
Up to 5 ips (127 mm/sec)
Print Resolution
203 dpi
Print Width
Up to 104 mm
Print Length
Up to 1,000 mm
Sensor
Transmissive(Fixed), Reflective(Adjustable),
Head Open, Ribbon-End (XD3-40t only)

Media Characteristics

Media Type
Gap, Black Mark, Notch, Continuous,
Fan-Fold
Media Width
15 ~ 118 mm
Media Roll Diameter
Up to 127 mm
Media Thickness
0.06 ~ 0.20 mm
Supply Method
Easy Paper Loading
Inner Core
25.4 ~ 38.1mm

Ribbon Characteristics

Ribbon Type
Wax, Wax / Resin, Resin, Outside
Ribbon Width
33 ~ 110mm
Ribbon Length
Up to 300m
Core Inner Diameter
25.4 mm, 12.7 mm

Physical Characteristics

Dimensions (WxDxH)
XD3-40d: 181 x 222 x 168 mm
(7.13 x 8.74 x 6.62 inch)
XD3-40t: 210 x 284 x 186 mm
(8.3 x 11.2 x 7.3 inch)

Weight

XD3-40d: 1.7kg (3.75 lbs.)
XD3-40t: 2.6kg (5.73 Ibs.)
Electrical
EnergyStar Certified,
External Power Adaptor 100-240V AC,
50/60Hz

Performance Characteristics

Memory
64 MB SDRAM, 128 MB Flash
Interface
Standard: USB
Optional: USB + Serial + Ethernet
Real Time Clock
Not Supported

Environment Characteristics

Temperature
Operating: XD3-40d: 0 ~ 40℃ (32 ~ 104℉)
XD3-40t: 5 ~ 40℃ (41 ~ 104℉)
Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity
Operating: 10 ~ 80% RH
Storage 10 ~ 90% RH

Software

Emulation
SLCS™, BPL-Z™, BPL-E™, BPL-D™ (Optional)
Driver / Utility
Windows Driver (Europlus / Seagull)
Linux / Mac CUPS Driver
Virtual COM USB / Ethernet Driver,
Utility Program, OPOS Driver
Bartender Ultralite for BIXOLON
Label Artist-II™
SDK / Plugin
Windows SDK, Linux SDK

Fonts / Graphics / Symbologies

Fonts
Bitmap Fonts (10 SLCS™, 16 BPL-Z™,
5 BPL-E™, 9 BPL-D™), Scalable Fonts
(1 SLCS™, 1 BPL-Z™, 1 BPL-D™),
23 Code page, Unicode supported (UTF-8,
UTF-16LE, UTF-16BE)
Graphics
Supporting user-defined fonts, graphics,
formats and logos
Barcode Symbologies
1D: Codabar, Code 11, Code 39, Code 93,
Code 128, EAN-13, EAN-8,
Industrial 2-of-5, Interleaved 2-of-5,
Logmars, MSI, Plessey, Postnet,
GS1 DataBar (RSS-14), Standard 2-of-5,
UPC/EAN extensions, UPC-A, UPC-E,
IMB
2D: Aztec, Codablock, Code49, Data Matrix,
MaxiCode, MicroPDF417, PDF417, QR
Code, TLC39

Accessories

Standard
Cable-USB
Optional
Peeler,External Paper Supply, Serial cable

Supplies

B-ribbon™, B-band™
