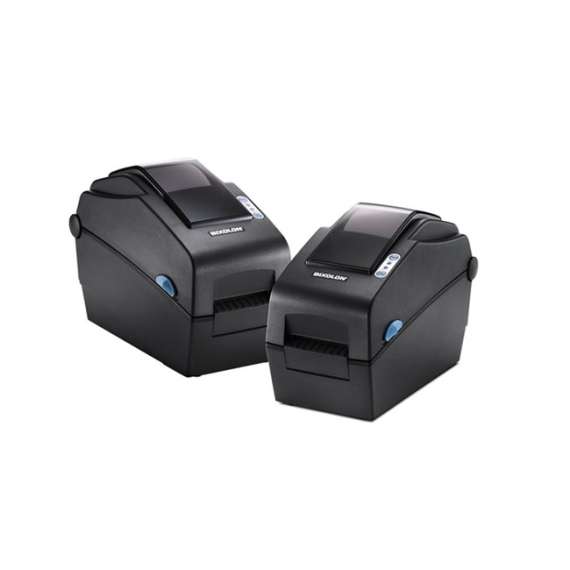

Bixolon SLP-DX220 Label Printer

Overview

Accompanied by a breadth of connectivity including ethernet, Bluetooth and WLAN, alongside various media handling choices, the compact SLP-DX220 offers a durable printing solution. A user-friendly design ensures easy out-of-box setup and ongoing use, plus free-of-charge utilities and device management enable control of your wired or wireless SLP-DX220 via fixed or mobile devices is possible. Handling a range of programming languages and supporting industry standard 1D and 2D barcode symbologies, the small SLP-DX220 has a huge feature set across two colour schemes – dark grey or ivory to support all of your printing requirements.

Advanced Performance
Printing speed up to 6 ips (152 mm/s)
Fast data processing speed of various types of label
The SLP-DX220 is fully compatible with market-leading programming language;
SLCS™, BPL-Z™, BPL-E™, BPL-D™(Optional)
Automatic paper detection such as gap media, black mark media and short length media paper

Cost-Efficiency
Standard Interface: USB+Serial
Optional Interface: USB + Ethernet + USB Host / USB + USB Host + Bluetooth / USB + USB Host + WLAN (SLP-DX220W)
Memory space of up to 256 MB SDRAM, 512 MB Flash (Optional)

User-Friendly Design
Compatible with smart mobile devices
Smart Bluetooth Auto Switch: Switching from iOS™ settings to standard Bluetooth® mode
Easy paper loading with adjustable paper guide
Pause and cancel function-keys

Specification

Printer Specifications
Print Method
Direct Thermal
Print Speed
SLP-DX220: Up to 6 ips (152 mm/sec)
SLP-DX223: Up to 4 ips (100 mm/sec)
Print Resolution
SLP-DX220: 203 dpi
SLP-DX223: 300 dpi
Print Width
SLP-DX220: Up to 54 mm
SLP-DX223: Up to 56.9 mm
Print Length
Up to 2,000 mm
Sensor
Transmissive, Reflective (Adjustable),
Head Open
Media Characteristics
Media Type
Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Width
STD: 15 ~ 60 mm
Peeler:15 ~ 58 mm
Media Roll Diameter
Up to 130 mm
Media Thickness
0.06 ~ 0.20 mm
Supply Method
Easy Paper Loading
Inner Core
12.5 ~ 38.1 mm
Physical Characteristics
Dimensions (W x L x H)
120 x 230 x 170 mm
(4.72 x 9.05 x 6.69 inch)
Weight
1.36 kg (2.99 lbs.)
Electrical
EnergyStar Certified,
External Power Adapter 100-240 V AC, 50/60 Hz
Performance Characteristics
Memory
64 MB SDRAM, 128 MB Flash
SLP-DX220W (WLAN)
Optional: 256 MB SDRAM, 512 MB Flash
Interface
Standard: USB + Serial
Optional: ① USB + Ethernet + USB Host
② USB + USB Host + Bluetooth
③ USB + USB Host + WLAN
----------------------------------------------------------------
*WLAN: 802.11a/b/g/n (Infrastructure, Ad-hoc,
Wi-Fi Direct, SoftAP)
- WEP40/104, WPA1/2 (PSK, EAP)
Real Time Clock
Supported (Optional)
Environment Characteristics
Temperature
Operating: 0 ~ 40 ℃ (32 ~ 104 ℉)
Storage: -20 ~ 60 ℃ (-4 ~ 140 ℉)
Humidity
Operating: 10 ~ 80 % RH
Storage 10 ~ 90 % RH
Software
Emulation
SLCS™, BPL-Z™, BPL-E™, BPL-D™ (Optional)
Driver / Utility
Windows Driver (Europlus/Seagull),
Linux/Mac CUPS Driver,
Virtual COM USB/Ethernet Driver,
Utility Program, OPOS/JPOS Driver,
Bartender Ultralite for BIXOLON,
Device Driver for SAP®, Network Auto Installer
Developer Tools
Android/iOS/Windows SDK, Linux SDK,
Xamarin SDK, Web Print SDK, Cordova Plugin,
MAUI SDK, Flutter Plugin, React-Native SDK
Design & Print
Label Artist-II™, Label Artist™ Web,
Label Artist™ Mobile (Android,iOS),
mPrint App (Android, iOS)
MDM (Optional)
SOTI Connect supported
Fonts / Graphics / Symbologies
Fonts
Bitmap Fonts (10 SLCS™, 16 BPL-Z™,
5 BPL-E™), Scalable Fonts (1 SLCS™, 1 BPL-Z™),
23 Code page,
Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics
Supporting user-defined fonts, graphics,
formats and logos
Barcode Symbologies
1D: Codabar, Code 11, Code 39, Code 93,
Code 128, EAN-13, EAN-8, Industrial 2-of-5,
Interleaved 2-of-5, Logmars, MSI, Plessey,
Postnet, GS1 DataBar (RSS-14),
Standard 2-of-5, UPC/EAN extensions,
UPC-A, UPC-E, IMB
2D: Aztec, Codablock, Code49, Data Matrix,
MaxiCode, MicroPDF417, PDF417,
QR Code, TLC39
Accessories / Supplies
Included in the box
AC/DC Adapter, Power-Cord, USB-Cable
Options & Accessories
Peeler, Auto Cutter, Serial cable
