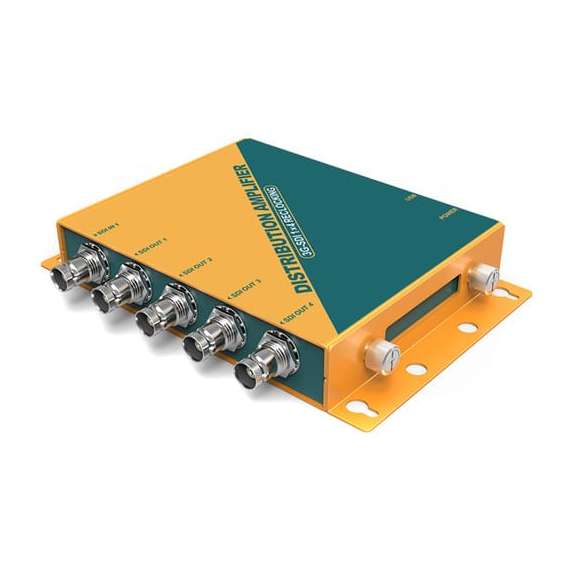

Avmatrix 1×4 3G-SDI Distribution Amplifier
![Buy Avmatrix 1×4 3G-SDI Distribution Amplifier in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/89/AVMATRIX-1x4-3G-SDI-Distribution-Amplifier-1-camerasafrica.jpg.jpg "Buy Avmatrix 1×4 3G-SDI Distribution Amplifier in [storefront]"){kind=small}
![Buy Avmatrix 1×4 3G-SDI Distribution Amplifier in [storefront]](images/detailed/89/AVMATRIX-1x4-3G-SDI-Distribution-Amplifier-1-camerasafrica.jpg "Buy Avmatrix 1×4 3G-SDI Distribution Amplifier in [storefront]")
- Automatically detects SD, HD and 3G-SDI
- 4 buffered and re-clocked outputs
- 3G/HD/SD-SDI multi-rate signal processing
- Output 2 & 4 support DVB-ASI signal
- Automatic cable equalization and signal retiming
- Pass all ancillary data and embedded audio
- Micro USB and DC power
- Mounting Bracket Included
1×4 SDI Reclocking Distribution Amplifier The SD1141 is a miniature, low-cost 1×4 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier. Featuring four separately buffered SDI outputs, the SD1141 provides automatic input detection, re-clocking and cable equalization.
1×4 Distribution SD1141 is a compact, one input, four output distribution amplifier for SDI and multi-rate SDI video signals up to 1080P 60hz(2.97 Gbps). Output 2 & output 4 support DVB-ASI signal.
120m SDI Re-clocking SD1141 include built-in SDI re-clocking and equalization. They will regenerate the SDI video input, reduce SDI jitter and improve SDI eye pattern before the signal gets to the converter’s processing. This allows longer cable lengths(3G: 120m, HD: 200m, SD: 400m).
Widespread Application SD1141 is ideal for use in broadcast and video production facilities, command and control centers, medical imaging facilities., rental and staging, and other applications
