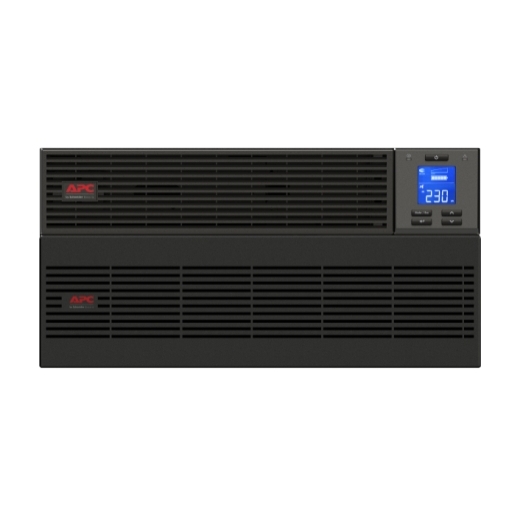

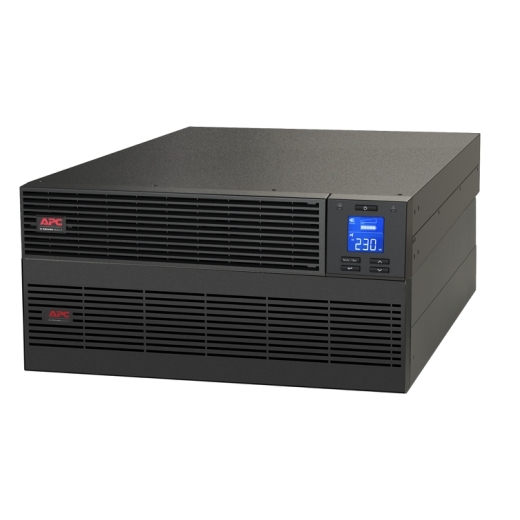

APC SRV10KRILRK On-Line SRV RM 10000VA 230V Easy UPS with External Battery Pack

The APC Easy UPS On-Line SRV 10000VA is a high-performance double-conversion online UPS designed to provide continuous power protection for critical IT infrastructure and enterprise applications. Featuring an external battery pack, pure sine wave output, and advanced management capabilities, it ensures reliable operation even in unstable power environments.

Specifications
  • Brand: APC
  • Model: Easy UPS On-Line SRV 10000VA RM 230V with External Battery Pack
  • Product Number / SKU: SRV10KRILRK
  • Product Type: Online Rackmount UPS
  • UPS Topology: Double Conversion Online
  • Output Power Capacity: 10,000 VA / 10,000 W
  • Nominal Input Voltage: 230 V
  • Configurable Output Voltage: 220 V, 230 V, 240 V
  • Output Frequency: 50/60 Hz ±3 Hz (Sync to Mains)
  • Output Waveform: Pure Sine Wave
  • Efficiency at Full Load: Up to 94%
  • Input Frequency: 40–70 Hz
  • Input Voltage Range: 110–300 V (Half Load), 176–300 V (Full Load)
  • Battery Type: Sealed Lead-Acid
  • Battery Recharge Time: Approximately 3 Hours
  • Battery Charge Power: 502 W
  • Runtime Expansion: External Battery Pack Support
  • Bypass: Automatic and Manual Internal Bypass
  • Display: Multifunction LCD Status and Control Console
  • Connectivity: USB, DB-9 RS-232, Intelligent SmartSlot
  • SmartSlot: 1 Expansion Slot
  • Emergency Power Off (EPO): Yes
  • Surge Protection: 600 J
  • Audible Alarms: On-battery, low battery, overload
  • Dimensions (H × W × D): 220 × 438 × 615 mm
  • Net Weight: 78 kg
  • Colour: Black
  • Operating Temperature: 0°C to 40°C
  • Operating Humidity: 0–95% Non-Condensing
  • Protection Rating: IP20
  • Certifications: CE, IEC 62040-1-1, IEC 62040-1-2
  • Features: High-efficiency online UPS with zero transfer time, intelligent battery management, ECO mode, generator compatibility, predictive failure notification, and network management support.
  • Application / Use Case: Ideal for protecting enterprise servers, storage systems, data centres, networking equipment, telecommunications, and other mission-critical rack-mounted infrastructure.
  • Warranty: 2-Year manufacturer warranty
