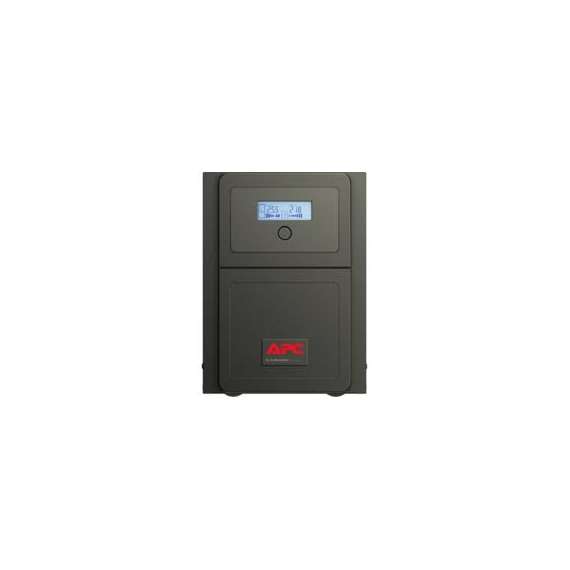

APC SMV750I-MSX SMV 525W/750VA 230V Easy UPS

input voltage
230 V
Input voltage
220 V
output voltage
230 V
rated power in W
525 W
rated power in VA
750 VA
plug standard
IEC 60320 C14
nb of power socket outlets
4 universal receptacle
number of cables
1
battery type
Lead-acid battery
provided equipment
Documentation CD
User manual
USB cable
General
Number of power module free slots
0
Number of power module filled slots
0
redundant
No
UPS size
WS
Physical
colour
Black
height
22 cm
width
16 cm
depth
41 cm
net weight
13.6 kg
mounting preference
No preference
mounting mode
Not rack-mountable
two post mountable
0
USB compatible
No
Input
network frequency
45...65 Hz +/- 1 Hz auto-sensing
input voltage limits
165...290 V
Output
Maximum configurable power in W
525 W
output frequency
50/60 Hz +/- 1 Hz unsynchronised
crest factor
3 : 1
UPS type
Line interactive
Wave type
Sine wave
graph display
1
Maximum configurable power in VA
750 VA
Transfer time
2-6 ms typical : 12 ms maximum
Conformance
product certifications
CE
standards
EN/IEC 62040-1
EN/IEC 62040-2
Environmental
ambient air temperature for operation
0…40 °C
relative humidity
0…95 % non-condensing
operating altitude
0...3000 m
ambient air temperature for storage
-10…40 °C
storage Relative Humidity
0…95 % Non-condensing
storage altitude
0…15000 m
acoustic level
45 dBA
IP degree of protection
IP20
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
number of battery filled slots
0
number of battery free slots
0
Battery recharge time
4 h
battery voltage
24 V
battery charger power
33 W rated
battery life
3…5 year(s)
extended runtime
0
Communications & Management
alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate
190 J
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
16.6 kg
Package 1 Height
33.9 cm
Package 1 width
27.2 cm
Package 1 Length
50.8 cm
Contractual warranty
Warranty
2 years repair or replace
