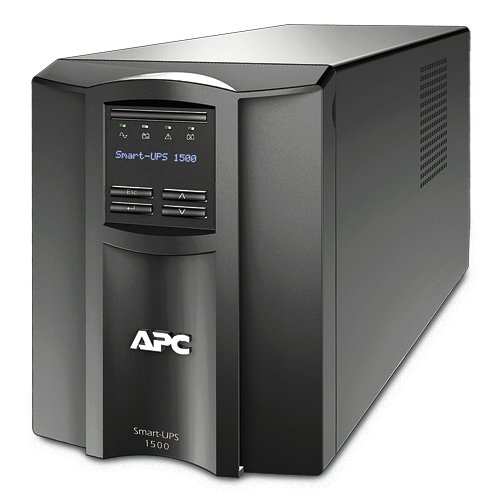

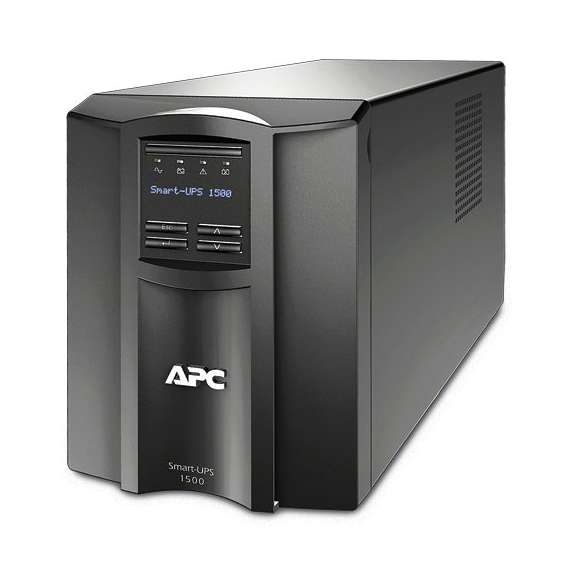

APC SMT1500I 1500VA LCD 230V Tower Smart-UPS

Cold-start capable

Energy meter

Green mode

High online efficiency

Intuitive LCD interface

Predictive replace battery date

Pure sine wave output on battery

Single switched outlet group

SmartSlot

Temperature-compensated battery charging

Technical Specifications

Output power capacity: 1.0 KWatts / 1.5 kVA

Max Confidurable Power: 1.0 KWatts / 1.5 kVA

Nominal Output Voltage: 230V

Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion: Less than 5% at full load.

Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Other Outputs: 220, 240

Topology: Line Interactive

Waveform Type: Sine Wave

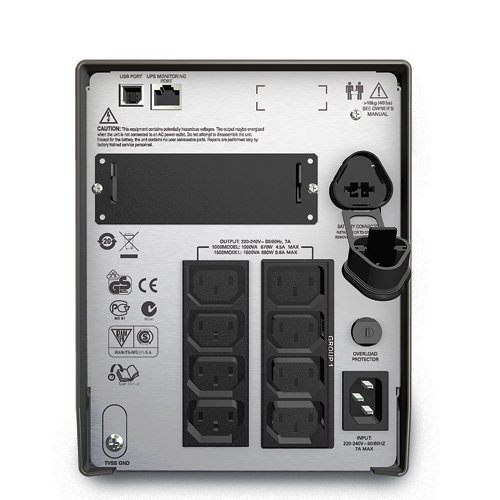

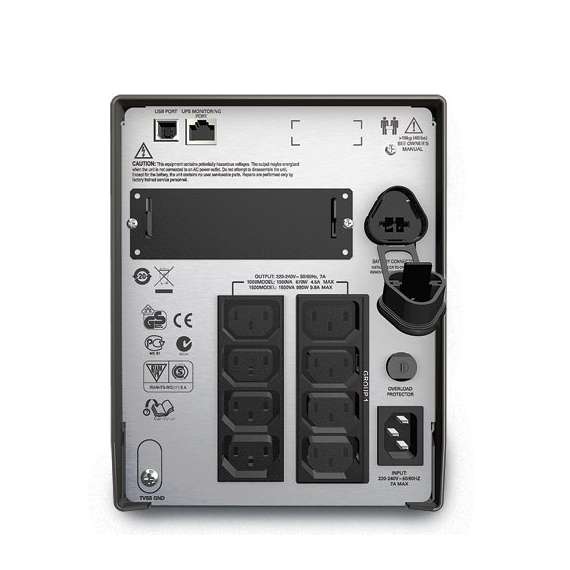

Output Connections: (2) IEC Jumpers (Battery Backup), (8) IEC 320 C13 (Battery Backup)

Nominal Input Voltage: 230V

Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections: IEC-320 C14

Cord Length: 1.83meters

Input Voltage range for main operations: 160 - 286V

Input voltage adjustable range for mains operation: 151 - 302V

Number of Power Cords: 1

Other Input Voltages: 220, 240

Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time: 3hour(s)

Expected Battery Life (years): 3 - 5

Interface Port(s): SmartSlot , USB

Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Available SmartSlot™ Interface Quantity: 1

Surge energy rating: 459Joules

Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Warranty: 1 Year

SMT1500I
