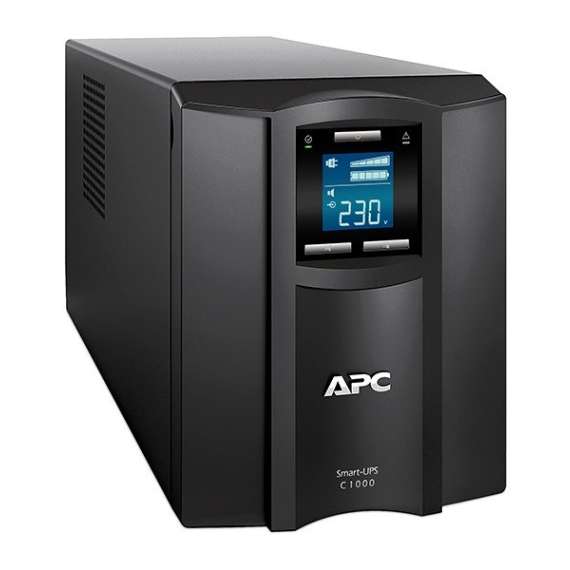

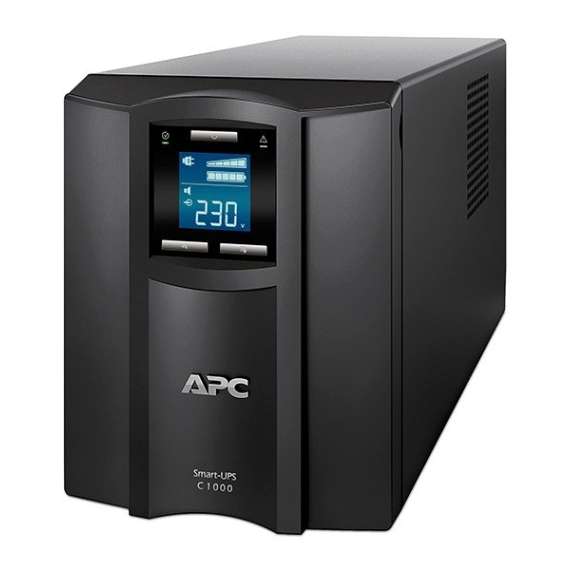

APC SMC1000I Smart-UPS C 1000VA LCD 230V UPS
Key Features
Cold-start capable
Green mode
High online efficiency
LCD Status Display
Pure sine wave output on battery
Temperature-compensated battery charging
Technical Specifications
Color: Black
Output power capacity: 600Watts / 1.0 kVA
Max Confidurable Power: 600Watts / 1.0 kVA
Nominal Output Voltage: 230V
Output Voltage Distortion: Less than 5% at full load.
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Topology: Line Interactive
Waveform Type: Sine Wave

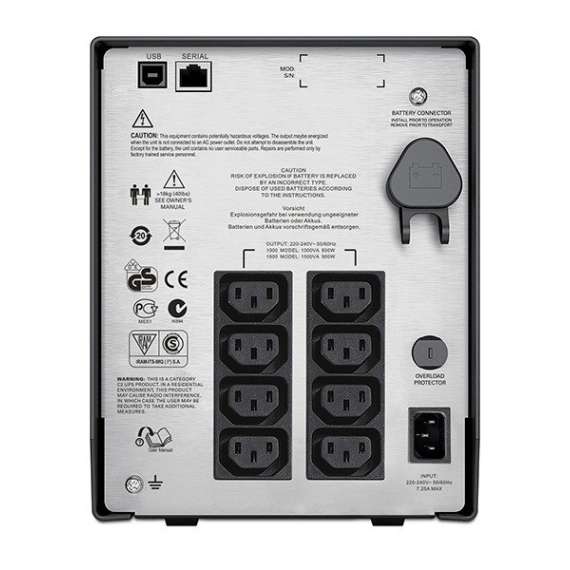

Output Connections: (8) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup)
Nominal Input Voltage: 230V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: IEC-320 C14
Input Voltage range for main operations: 180 - 287V
Input voltage adjustable range for mains operation: 170 - 300V
Other Input Voltages: 220, 240
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3hour(s)
Expected Battery Life (years): 3 - 5
RBC Quantity: 1
Interface Port(s): USB
Control panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rating: 455Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Operating Temperature: 0 - 40 °C
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0-3000meters
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0-15000meters
Audible noise at 1 meter from surface of unit: 41.0dBA
Online thermal dissipation: 100.0BTU/hr
Approvals: CE, CSA, GOST, UL 1778, VDE
RoHS: Compliant
REACH: REACH: Contains No SVHCs
Warranty: 1 Year
