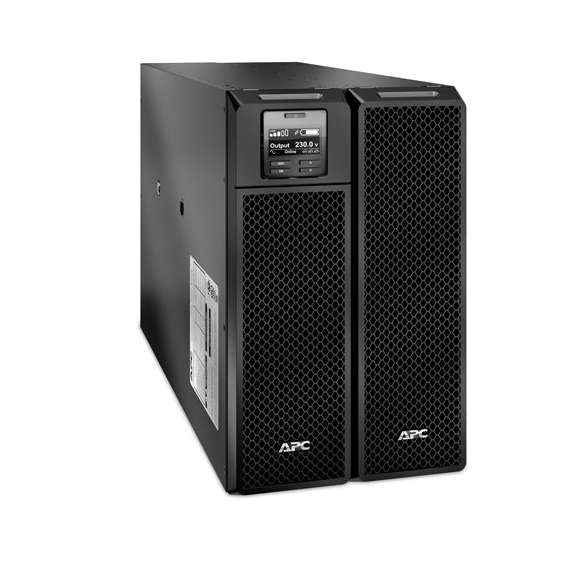

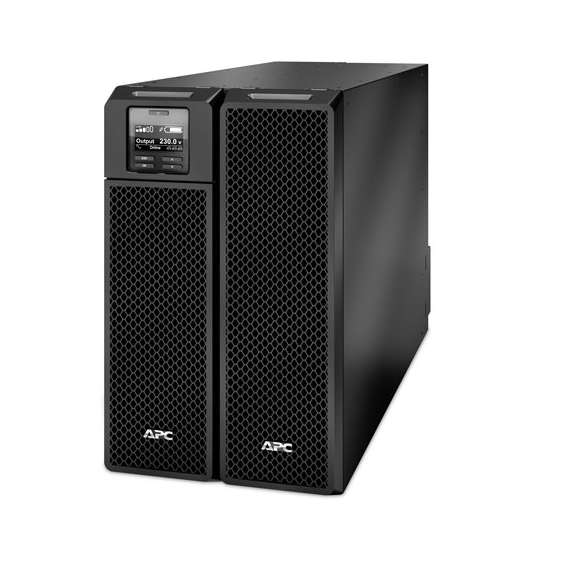

APC Smart-UPS SRT 10000VA 230V UPS
Key FeaturesÂ
High density, double-conversion on-line power protection with scalable runtime
10/100 BaseT Connection
Green mode
Battery failure notification
LCD graphics display
Â
Technical Specifications
Output power capacity:Â 10.0 KWatts /Â 10.0 kVA
Max Confidurable Power:Â 10.0 KWatts /Â 10.0 kVA
Nominal Output voltage: 230V
Output Voltage Distortion: Less than 2%Â
Output Frequency (sync to mains):Â 50/60Hz +/- 3 Hz
Other Output Voltages:Â 220, 240
Load Crest Factor:Â 3 : 1
Topology:Â Double Conversion Online
Waveform Type: Sine Wave

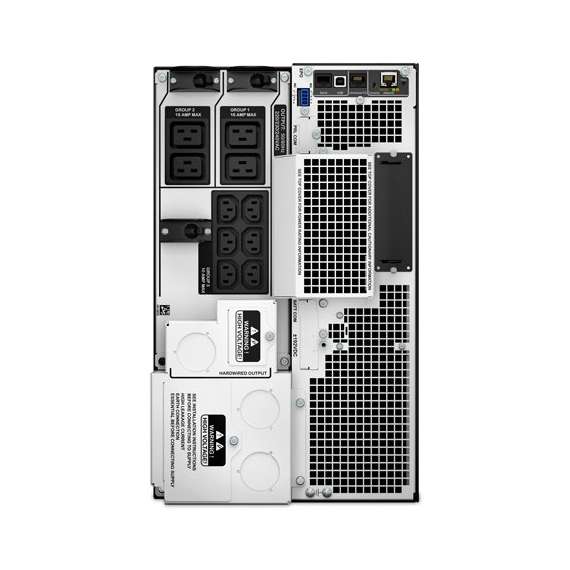

Output Connections:Â (6) IEC 320 C13 (Battery Backup), (4) IEC 320 C19 (Battery Backup), (1) Hard Wire 3-wire (H N + G) (Battery Backup), (3) IEC Jumpers (Battery Backup)
Bypass:Â Internal Bypass (Automatic and Manual)
Nominal Input Voltage:Â 230V , 400V 3PH
Input Frequency:Â 40 - 70 Hz (auto sensing)
Input Connections:Â Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Input Voltage range for main operations:Â 160 - 275V
Input voltage adjustable range for mains operation:Â 100 - 275 (half load), 173 - 476 (half load)V
Other Input Voltages:Â 220, 240, 380, 415
Battery Type:Â Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 1.5hour(s)
Nominal Battery Voltage:Â +/-192 V (split battery referenced to neutral)
