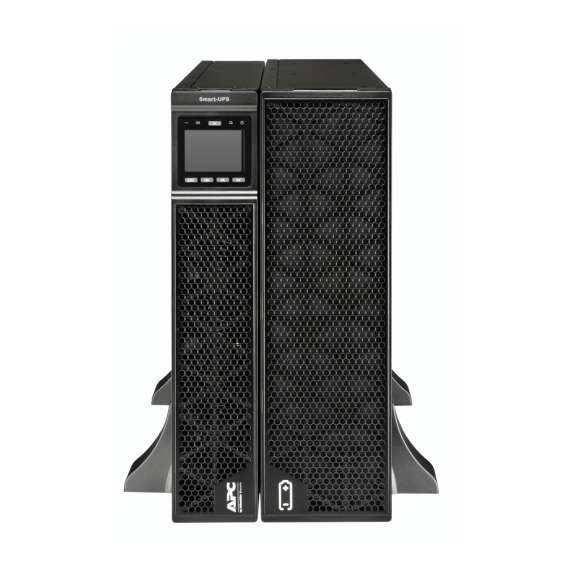

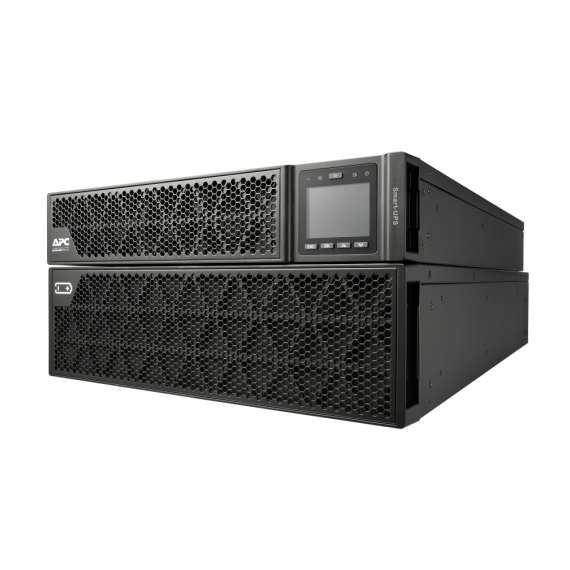

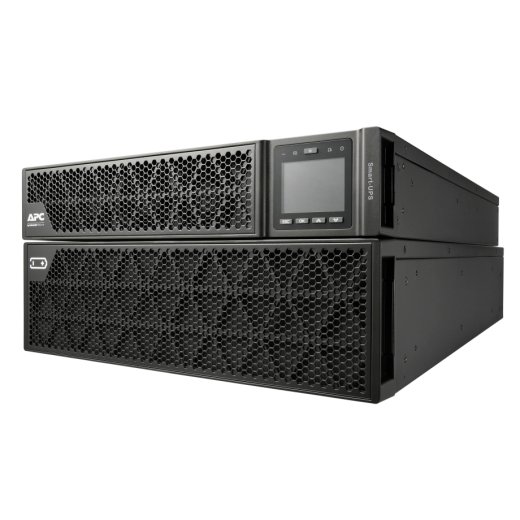

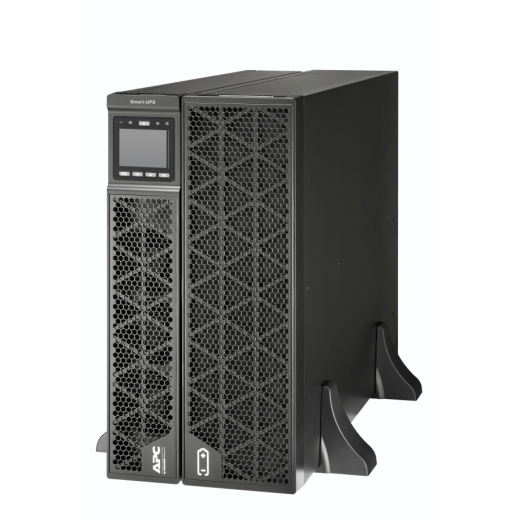

APC SRTG10KXLI 10kVA 230V Smart UPS
![Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/96/files_l2s5-lc.jpg.jpg "Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]"){kind=small}
![Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]](images/detailed/96/files_l2s5-lc.jpg "Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]")
![Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]](images/detailed/96/files_q9hz-n7.jpg "Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]")
![Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]](images/detailed/96/files_meij-zv.jpg "Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]")
![Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]](https://shopit.co.ke/images/thumbnails/50/50/detailed/96/files_l2s5-lc.jpg.jpg "Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]")
![Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]](https://shopit.co.ke/images/thumbnails/50/50/detailed/96/files_q9hz-n7.jpg.jpg "Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]")
![Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]](https://shopit.co.ke/images/thumbnails/50/50/detailed/96/files_meij-zv.jpg.jpg "Buy APC SRTG10KXLI 10kVA 230V Smart UPS in [storefront]")
SRTG10KXLI
Please sign in so that we can notify you about a reply
| provided equipment |
Smart UPS signalling RS-232 cable
User manual |
|
|---|---|---|
| Number of tare power |
174.6 W
|
|
| Number of power module free slots |
0
|
|
| Number of power module filled slots |
0
|
|
| redundant |
No
|
|
| UPS size |
S
|
| depth |
62 cm
|
|
|---|---|---|
| height |
21.7 cm
|
|
| mounting preference |
No preference
|
|
| net weight |
81.12 kg
|
|
| mounting mode |
Rack-mounted with kit
|
|
| two post mountable |
0
|
|
| USB compatible |
No
|
|
| width |
44 cm
|
| network frequency |
40...70 Hz auto-sensing
|
|
|---|---|---|
| number of input connectors |
1 hard wire 3-wire (1P + N + E)
|
|
| input voltage limits |
160...285 V
|
|
| Input voltage |
220 V
240 V |
|
| maximum input current |
30 A
|
|
| max short time withstand current |
40 kA
|
|
| input voltage |
230 V
|
| rated power in W |
10000 W
|
|
|---|---|---|
| Maximum configurable power in W |
10000 W
|
|
| harmonic distortion |
Less than 2 %
|
|
| output frequency |
50/60 Hz +/- 3 Hz sync to mains
|
|
| Output voltage |
220 V
240 V |
|
| crest factor |
3 : 1
|
|
| UPS type |
Double conversion online
|
|
| Wave type |
Sine wave
|
|
| output connector type |
Hard wire 3-wire (H N + E) 1
|
|
| nb of power socket outlets |
2 IEC 60320 C13
1 IEC 60320 C19 |
|
| bypass type |
Internal bypass (automatic and manual)
|
|
| curve equation |
Efficiency
|
|
| curve fixed loss |
0.0130
|
|
| curve load maximum |
100 %
|
|
| curve load minimum |
2 %
|
|
| curve proportional loss |
0.0242
|
|
| curve square loss |
0.0229
|
|
| curve X-axis maximum |
100 %
|
|
| curve test cond ID |
Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
|
|
| curve X-axis minimum |
0 %
|
|
| curve X-axis title |
Load
|
|
| curve X-axis units |
Percentage
|
|
| curve Y-axis maximum |
100 %
|
|
| curve Y-axis minimum |
50 %
|
|
| curve Y-axis title |
Efficiency
|
|
| curve Y-axis units |
Percentage
|
|
| full load runtime |
00:03:30 10000 W
|
|
| graph display |
1
|
|
| half load runtime |
00:11:00 5000 W
|
|
| output voltage |
230 V
|
|
| Maximum configurable power in VA |
10000 VA
|
|
| rated power in VA |
10000 VA
|
| ambient air temperature for operation |
0…40 °C
|
|
|---|---|---|
| relative humidity |
0…95 % non-condensing
|
|
| operating altitude |
0...6600 ft
|
|
| ambient air temperature for storage |
-15…45 °C
|
|
| storage Relative Humidity |
0…95 % Non-condensing
|
|
| storage altitude |
0.00…15240.00 m
|
|
| acoustic level |
55 dB
|
|
| heat dissipation |
2217.98 Btu/h
|
|
| show note OP temperature |
No
|
|
| IP degree of protection |
IP20
|
| battery type |
Lead-acid battery
|
|
|---|---|---|
| number of battery filled slots |
0
|
|
| number of battery free slots |
0
|
|
| Battery recharge time |
4 h
|
|
| additional information |
Configurable for 220 : 230 or 240 nominal output voltage
|
|
| liquid value |
0
|
|
| battery voltage |
+/- 96 V
|
|
| battery curve |
D
|
|
| battery charger power |
431 W rated
|
|
| Battery power in VAH |
1772 VAh runtime
|
|
| battery life |
3…5 year(s)
|
|
| battery option |
SRTG192XLBP4 1 3564 VAh
SRTG192XLBP4 2 5415 VAh SRTG192XLBP4 3 7378 VAh SRTG192XLBP4 4 9216 VAh |
|
| extended runtime |
1
|
| preinstalled device |
Network management card
|
|
|---|---|---|
| control panel |
LED Status display with on line : on battery
Multifunction LCD status and control console |
|
| alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
|
| Emergency power off |
Yes
|
| Surge energy rate |
600 J
|
|---|
| Package 1 Weight |
83.14 kg
|
|
|---|---|---|
| Package 1 Height |
41.4 cm
|
|
| Package 1 width |
59 cm
|
|
| Package 1 Length |
79 cm
|
Condition
- New
Rack Unit
- 2U
Warranty Issuer
- Manufacturer
No reviews found
