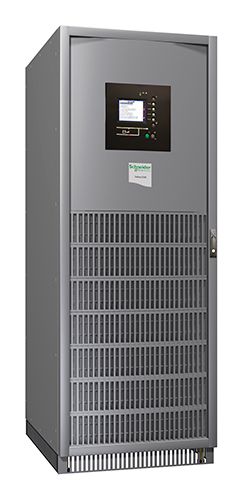

Shopit 0777-777-000 | APC Galaxy G55TUPSM100HS 5500 100KVA Parallel Smart UPS in Nairobi, Kenya

Write a review

CODE :

G55TUPSM100HS

Ksh 2,961,016

(Ksh 3,434,779 Inc VAT)

+ −

Request for Quotation

BrandAPC ConditionNew Device MountingTower Warranty IssuerManufacturer

Vendor: Shopit Limited - Kenya

Ask a question

PROVIDED EQUIPMENT	Installation guide Network management card Start-up service User manual
BYPASS VOLTAGE TOLERANCE	+/- 10 % settable from +/- 4/6/8 and 10 >#/td###
MAX BYPASS INPUT CURRENT	144 A
NUMBER OF TARE POWER	2 W
NUMBER OF POWER MODULE FREE SLOTS	0
NUMBER OF POWER MODULE FILLED SLOTS	0
REDUNDANT	No
UPS SIZE	WS

PROVIDED EQUIPMENT

Installation guide Network management card Start-up service User manual

BYPASS VOLTAGE TOLERANCE

+/- 10 % settable from +/- 4/6/8 and 10 >#/td###

MAX BYPASS INPUT CURRENT

144 A

NUMBER OF TARE POWER

2 W

NUMBER OF POWER MODULE FREE SLOTS

NUMBER OF POWER MODULE FILLED SLOTS

REDUNDANT

UPS SIZE

DEPTH	85 cm
HEIGHT	190 cm
MOUNTING PREFERENCE	No preference
NET WEIGHT	520 kg
MOUNTING MODE	Not rack-mountable
TWO POST MOUNTABLE	0
USB COMPATIBLE	No
WIDTH	71.2 cm

DEPTH

85 cm

HEIGHT

190 cm

MOUNTING PREFERENCE

No preference

NET WEIGHT

520 kg

MOUNTING MODE

Not rack-mountable

TWO POST MOUNTABLE

USB COMPATIBLE

WIDTH

71.2 cm

NETWORK FREQUENCY	45…65 Hz
NUMBER OF INPUT CONNECTORS	1 hard wire 4-wire (3P + E) 1 hard wire 4-wire (3P + N)
INPUT VOLTAGE LIMITS	250…470 V adjustable 323…437 V 380 V 340…460 V 400 V 353…477 V 415 V
INPUTVOLT_OTHER	380 V 415 V
MAXIMUM INPUT CURRENT	145 A
SWITCHING CURRENT CAPACITY	315 A
MAX SHORT TIME WITHSTAND CURRENT	30 kA
INPUT HARMONIC DISTORTION	Less than 3 % for full load
INPUT PROTECTION TYPE	3-pole circuit breaker
INPUT VOLTAGE	400 V 3 phases
INRUSH CURRENT	200 A peak
LOAD POWER FACTOR	0.9
COS PHI	1

NETWORK FREQUENCY

45…65 Hz

NUMBER OF INPUT CONNECTORS

1 hard wire 4-wire (3P + E) 1 hard wire 4-wire (3P + N)

INPUT VOLTAGE LIMITS

250…470 V adjustable 323…437 V 380 V 340…460 V 400 V 353…477 V 415 V

INPUTVOLT_OTHER

380 V 415 V

MAXIMUM INPUT CURRENT

145 A

SWITCHING CURRENT CAPACITY

315 A

MAX SHORT TIME WITHSTAND CURRENT

30 kA

INPUT HARMONIC DISTORTION

Less than 3 % for full load

INPUT PROTECTION TYPE

3-pole circuit breaker

INPUT VOLTAGE

400 V 3 phases

INRUSH CURRENT

200 A peak

LOAD POWER FACTOR

0.9

COS PHI

RATED POWER IN W	90000 W
MAXIMUM CONFIGURABLE POWER IN W	90000 W
HARMONIC DISTORTION	Less than 2 >#/td###
OUTPUT FREQUENCY	50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains 50/60 Hz +/- 1 Hz unsynchronised
OUTPUTVOLT_OTHER	380 V 415 V
CREST FACTOR	3 : 1
UPS TYPE	Double conversion online
WAVE TYPE	Sine wave
OUTPUT CONNECTOR TYPE	Hard wire 4-wire (3P + E) 1
OUTPUT VOLTAGE TOLERANCE	+/- 2% static and 100% load step
OUTPUT HARMONIC DISTORTION	< 1% linear load and < 2.5% non-linear load
OUTPUT OVERLOAD OPERATION	10 minutes at 125% and 60 seconds at 150>#/td###
REQUIRED OUTPUT CURRENT PROTECTION	80 A
NEUTRAL OUTPUT CURRENT	145 A
BYPASS TYPE	Built-in maintenance bypass Built-in static bypass Optional external bypass
CURVE EQUATION	Efficiency
CURVE LOAD MAXIMUM	100 >#/td###
CURVE X-AXIS MAXIMUM	100 >#/td###
CURVE X-AXIS MINIMUM	0 >#/td###
CURVE X-AXIS TITLE	Load
CURVE X-AXIS UNITS	Percentage
CURVE Y-AXIS MAXIMUM	100 >#/td###
CURVE Y-AXIS MINIMUM	50 >#/td###
CURVE Y-AXIS TITLE	Efficiency
CURVE Y-AXIS UNITS	Percentage
EFFICIENCY	93.6 % (full load) 93.1 % (half load)
GRAPH DISPLAY	1
MAXIMUM OUTPUT CURRENT	480 A
OUTPUT VOLTAGE	400 V 3 phases
MAXIMUM CONFIGURABLE POWER IN VA	100000 VA
RATED POWER IN VA	100000 VA

RATED POWER IN W

90000 W

MAXIMUM CONFIGURABLE POWER IN W

90000 W

HARMONIC DISTORTION

Less than 2 >#/td###

OUTPUT FREQUENCY

50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains 50/60 Hz +/- 1 Hz unsynchronised

OUTPUTVOLT_OTHER

380 V 415 V

CREST FACTOR

3 : 1

UPS TYPE

Double conversion online

WAVE TYPE

Sine wave

OUTPUT CONNECTOR TYPE

Hard wire 4-wire (3P + E) 1

OUTPUT VOLTAGE TOLERANCE

+/- 2% static and 100% load step

OUTPUT HARMONIC DISTORTION

< 1% linear load and < 2.5% non-linear load

OUTPUT OVERLOAD OPERATION

10 minutes at 125% and 60 seconds at 150>#/td###

REQUIRED OUTPUT CURRENT PROTECTION

80 A

NEUTRAL OUTPUT CURRENT

145 A

BYPASS TYPE

Built-in maintenance bypass Built-in static bypass Optional external bypass

CURVE EQUATION

Efficiency

CURVE LOAD MAXIMUM

100 >#/td###

CURVE X-AXIS MAXIMUM

100 >#/td###

CURVE X-AXIS MINIMUM

0 >#/td###

CURVE X-AXIS TITLE

Load

CURVE X-AXIS UNITS

Percentage

CURVE Y-AXIS MAXIMUM

100 >#/td###

CURVE Y-AXIS MINIMUM

50 >#/td###

CURVE Y-AXIS TITLE

Efficiency

CURVE Y-AXIS UNITS

Percentage

EFFICIENCY

93.6 % (full load) 93.1 % (half load)

GRAPH DISPLAY

MAXIMUM OUTPUT CURRENT

480 A

OUTPUT VOLTAGE

400 V 3 phases

MAXIMUM CONFIGURABLE POWER IN VA

100000 VA

RATED POWER IN VA

100000 VA

PRODUCT CERTIFICATIONS	CE TÜV VDE
STANDARDS	IEC 62040-1-2 EN/IEC 62040-2 EN/IEC 62040-3 ISO 9001

PRODUCT CERTIFICATIONS

CE TÜV VDE

STANDARDS

IEC 62040-1-2 EN/IEC 62040-2 EN/IEC 62040-3 ISO 9001

AMBIENT AIR TEMPERATURE FOR OPERATION	0…40 °C
RELATIVE HUMIDITY	0…95 >#/td###
OPERATING ALTITUDE	0…3333 ft
AMBIENT AIR TEMPERATURE FOR STORAGE	-20…45 °C
STORAGE RELATIVE HUMIDITY	0…95 >#/td###
STORAGE ALTITUDE	0.00…12192.00 m
ACOUSTIC LEVEL	61.4 dBA
HEAT DISSIPATION	23549 Btu/h
SHOW NOTE OP TEMPERATURE	No
IP DEGREE OF PROTECTION	IP20

AMBIENT AIR TEMPERATURE FOR OPERATION

0…40 °C

RELATIVE HUMIDITY

0…95 >#/td###

OPERATING ALTITUDE

0…3333 ft

AMBIENT AIR TEMPERATURE FOR STORAGE

-20…45 °C

STORAGE RELATIVE HUMIDITY

0…95 >#/td###

STORAGE ALTITUDE

0.00…12192.00 m

ACOUSTIC LEVEL

61.4 dBA

HEAT DISSIPATION

23549 Btu/h

SHOW NOTE OP TEMPERATURE

IP DEGREE OF PROTECTION

IP20

BATTERY TYPE	External battery system
NUMBER OF BATTERY FILLED SLOTS	0
NUMBER OF BATTERY FREE SLOTS	0
BATTERY RECHARGE TIME	10 h
ADDITIONAL INFORMATION	Battery runtimes are estimates only. Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
LIQUID VALUE	0
BATTERY VOLTAGE	432 V
BATTERY CURVE	B
BATTERY POWER IN VAH	0 VAh runtime
BATTERY LIFE	8…10 year(s)
BATTERY OPTION	G55TBATL7A 1 28000 VAh G55TBATL10B 1 38000 VAh G55TBATL7L10E 1 77500 VAh
BATTERY GRAPH COMMENTS	Estimated runtimes based on battery vendor data, at typical environmental conditions, with no electrical input and balanced PF = 0.8 output.
EXTENDED RUNTIME	0

BATTERY TYPE

External battery system

NUMBER OF BATTERY FILLED SLOTS

NUMBER OF BATTERY FREE SLOTS

BATTERY RECHARGE TIME

10 h

ADDITIONAL INFORMATION

Battery runtimes are estimates only. Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage

LIQUID VALUE

BATTERY VOLTAGE

432 V

BATTERY CURVE

BATTERY POWER IN VAH

0 VAh runtime

BATTERY LIFE

8…10 year(s)

BATTERY OPTION

G55TBATL7A 1 28000 VAh G55TBATL10B 1 38000 VAh G55TBATL7L10E 1 77500 VAh

BATTERY GRAPH COMMENTS

Estimated runtimes based on battery vendor data, at typical environmental conditions, with no electrical input and balanced PF = 0.8 output.

EXTENDED RUNTIME
