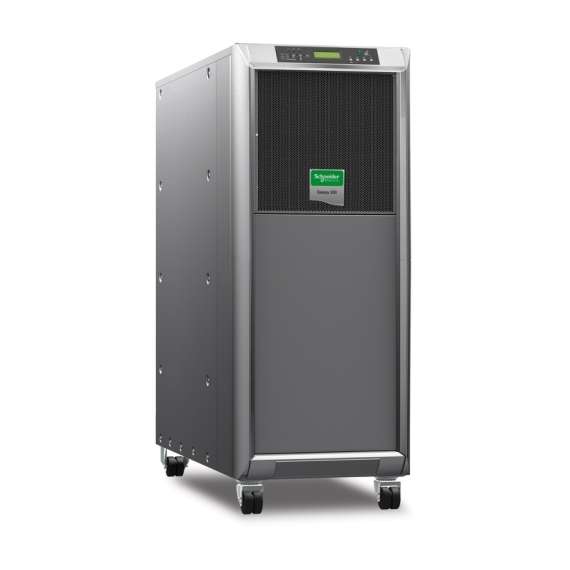

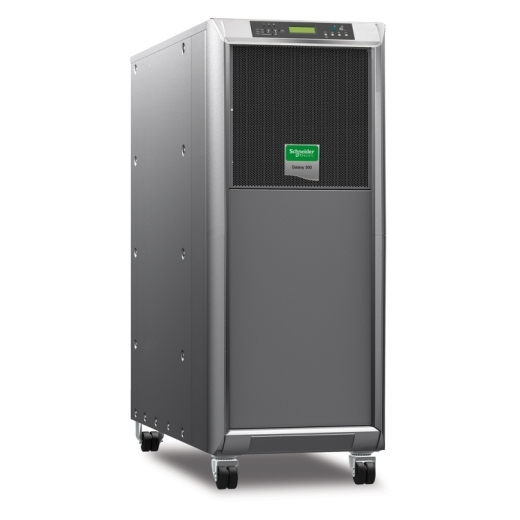

APC Galaxy G3HT80KHB2S 300 80KVA 20MIN
![Buy APC Galaxy G3HT80KHB2S 300 80KVA 20MIN in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/105/f11.jpg.jpg "Buy APC Galaxy G3HT80KHB2S 300 80KVA 20MIN in [storefront]"){kind=small}
![Buy APC Galaxy G3HT80KHB2S 300 80KVA 20MIN in [storefront]](images/detailed/105/f11.jpg "Buy APC Galaxy G3HT80KHB2S 300 80KVA 20MIN in [storefront]")
G3HT80KHB2S
Please sign in so that we can notify you about a reply
APC Galaxy 300 80KVA 3 Phase UPS G3HT80KHB2S 20MIN
APC Galaxy 300 80KVA 3 Phase UPS G3HT80KHB2S 20MIN from the leading APC dealer in Nairobi Kenya, APC Galaxy 300 80KVA 3 Phase UPS G3HT80KHB2S 20MIN
General
| PROVIDED EQUIPMENT | CD with software Dust filter Installation guide Network management card User manual | |
|---|---|---|
| BYPASS WIRING CONFIGURATION | 5 wire (3P + N + E) | |
| NUMBER OF POWER MODULE FREE SLOTS | 0 | |
| NUMBER OF POWER MODULE FILLED SLOTS | 0 | |
| REDUNDANT | No | |
| UPS SIZE | WS |
Physical
| DEPTH | 95 cm | |
|---|---|---|
| HEIGHT | 190 cm | |
| MOUNTING PREFERENCE | No preference | |
| NET WEIGHT | 1395 kg | |
| MOUNTING MODE | Not rack-mountable | |
| TWO POST MOUNTABLE | 0 | |
| USB COMPATIBLE | No | |
| WIDTH | 141.2 cm |
Input
| NETWORK FREQUENCY | 45…65 Hz | |
|---|---|---|
| NUMBER OF INPUT CONNECTORS | 1 hard wire 5-wire (3P + N + E) | |
| INPUT VOLTAGE LIMITS | 323…437 V adjustable 380 V 340…460 V adjustable 400 V 357…477 V adjustable 415 V 340…477 V | |
| INPUTVOLT_OTHER | 380 V 415 V | |
| MAXIMUM INPUT CURRENT | 122 A | |
| SWITCHING CURRENT CAPACITY | 160 A | |
| MAX SHORT TIME WITHSTAND CURRENT | 16 kA | |
| INPUT HARMONIC DISTORTION | Less than 5 % for full load | |
| INPUT PROTECTION TYPE | 3-pole circuit breaker | |
| INPUT VOLTAGE | 400 V 3 phases | |
| INRUSH CURRENT | 200 A peak | |
| LOAD POWER FACTOR | 0.5 leading to 0.5 lagging |
Output
| RATED POWER IN W | 72000 W | |
|---|---|---|
| MAXIMUM CONFIGURABLE POWER IN W | 72000 W | |
| HARMONIC DISTORTION | Less than 5 >#/td### | |
| OUTPUT FREQUENCY | 50/60 Hz +/- 1 Hz sync to mains 50/60 Hz +/- 1 Hz unsynchronised | |
| OUTPUTVOLT_OTHER | 380 V 415 V | |
| CREST FACTOR | 3 : 1 | |
| UPS TYPE | Double conversion online | |
| OUTPUT CONNECTOR TYPE | Hard wire 5-wire (3P + N + E) 1 | |
| OUTPUT VOLTAGE TOLERANCE | +/- 2% static and 100% load step | |
| OUTPUT HARMONIC DISTORTION | < 3% linear load and < 5% non-linear load | |
| OUTPUT OVERLOAD OPERATION | 10 minutes at 125% and 30 seconds at 150>#/td### | |
| REQUIRED OUTPUT CURRENT PROTECTION | 160 A | |
| BYPASS TYPE | Built-in static bypass | |
| CURVE EQUATION | Efficiency | |
| CURVE FIXED LOSS | 0.0124 | |
| CURVE LOAD MAXIMUM | 100 >#/td### | |
| CURVE LOAD MINIMUM | 2 >#/td### | |
| CURVE PROPORTIONAL LOSS | 0.0296 | |
| CURVE SQUARE LOSS | 0.0243 | |
| CURVE X-AXIS MAXIMUM | 100 >#/td### | |
| CURVE TEST COND ID | Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced PF = 0.8 output. | |
| CURVE X-AXIS MINIMUM | 0 >#/td### | |
| CURVE X-AXIS TITLE | Load | |
| CURVE X-AXIS UNITS | Percentage | |
| CURVE Y-AXIS MAXIMUM | 100 >#/td### | |
| CURVE Y-AXIS MINIMUM | 50 >#/td### | |
| CURVE Y-AXIS TITLE | Efficiency | |
| CURVE Y-AXIS UNITS | Percentage | |
| GRAPH DISPLAY | 0 | |
| OUTPUT VOLTAGE | 400 V 3 phases | |
| MAXIMUM CONFIGURABLE POWER IN VA | 80000 VA | |
| RATED POWER IN VA | 80000 VA |
Conformance
| PRODUCT CERTIFICATIONS | CE EAC | |
|---|---|---|
| STANDARDS | EN/IEC 62040-1 EN/IEC 62040-2 EN/IEC 62040-3 ISTA 2B |
Environmental
| AMBIENT AIR TEMPERATURE FOR OPERATION | 0…40 °C | |
|---|---|---|
| RELATIVE HUMIDITY | 0…95 % non-condensing | |
| OPERATING ALTITUDE | 0…3000 ft | |
| AMBIENT AIR TEMPERATURE FOR STORAGE | -15…40 °C | |
| STORAGE RELATIVE HUMIDITY | 0…95 % Non-condensing | |
| STORAGE ALTITUDE | 0.00…4572.00 m | |
| ACOUSTIC LEVEL | 65 dBA | |
| SHOW NOTE OP TEMPERATURE | No | |
| IP DEGREE OF PROTECTION | IP20 |
Batteries & Runtime
| BATTERY TYPE | Lead-acid battery | |
|---|---|---|
| NUMBER OF BATTERY FILLED SLOTS | 0 | |
| NUMBER OF BATTERY FREE SLOTS | 0 | |
| ADDITIONAL INFORMATION | KW/kVA = 0.9 PF with ambient temp up to 25°C. kW/kVA = 0.8 PF with ambient temp above 25°C | |
| LIQUID VALUE | 0 | |
| BATTERY VOLTAGE | +/- 192 V (split battery referenced to neutral) | |
| DISCHARGE BATTERY VOLTAGE | +/- 154 V | |
| BATTERY CURVE | B | |
| BATTERY POWER IN VAH | 0 VAh runtime | |
| BATTERY LIFE | 3…5 year(s) | |
| EXTENDED RUNTIME | 0 |
Communications & Management
| PREINSTALLED DEVICE | Network management card | |
|---|---|---|
| CONTROL PANEL | Multifunction LCD status and control console | |
| EMERGENCY POWER OFF | Yes |
Packing Units
| PACKAGE 1 WEIGHT | 1435 kg | |
|---|---|---|
| PACKAGE 1 HEIGHT | 197.8 cm | |
| PACKAGE 1 WIDTH | 164.9 cm | |
| PACKAGE 1 LENGTH | 112 cm |
Offer Sustainability
| EU ROHS DIRECTIVE | Under investigation | |
|---|---|---|
| MERCURY-FREE | Yes | |
| ROHS EXEMPTION INFORMATION | Yes | |
| ENVIRONMENTAL DISCLOSURE | Product Environmental Profile | |
| CIRCULARITY PROFILE | End of Life Information | |
| OPTIMIZED ENERGY EFFICIENCY | Energy-efficient product |
Condition
- New
Device Mounting
- Rack Mount
- Tower
Warranty Issuer
- Manufacturer
No reviews found
