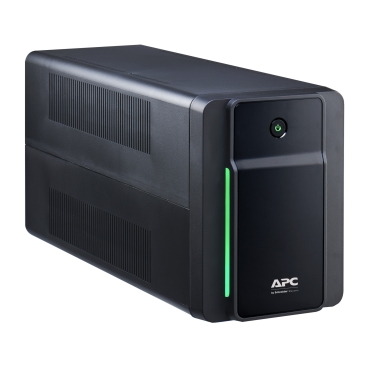

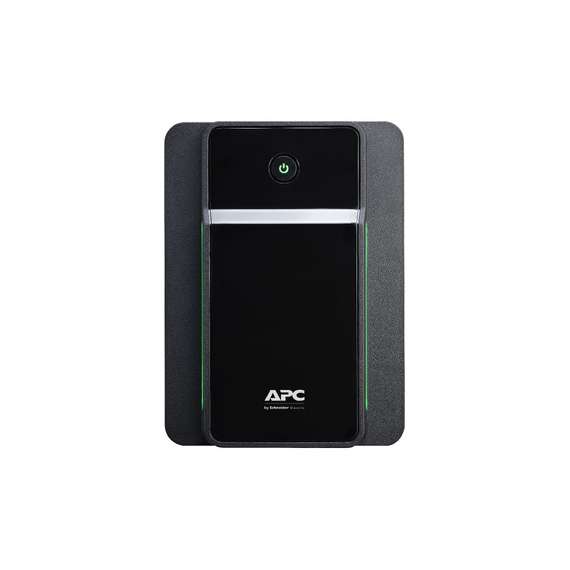

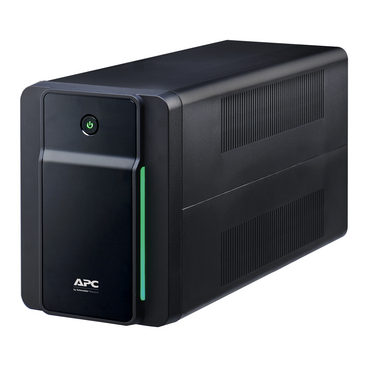

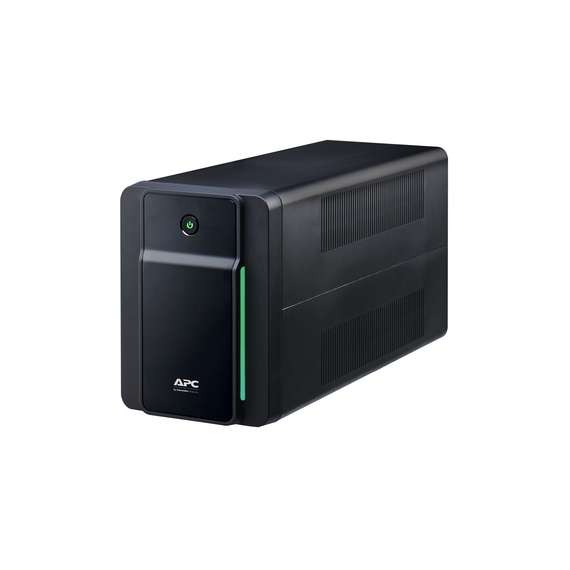

APC BX2200MI-MS 2200VA 230V AVR Back-UPS
BX2200MI-MS
Please sign in so that we can notify you about a reply
The APC BX2200MI-MS is a high-capacity line-interactive UPS designed for powerful home office and business setups. It provides reliable backup power, automatic voltage regulation (AVR), and surge protection to keep critical devices running smoothly during outages and unstable power conditions.
Specifications
- Capacity: 2200VA / 1200W
- Topology: Line interactive
- Input voltage: 230V AC, single phase
- Input voltage range: 140–300V AC
- Input frequency: 50/60Hz ±5Hz (auto-sensing)
- Output voltage: 230V AC, single phase
- Output frequency: 50/60Hz ±1Hz (sync to mains)
- Waveform type: Stepped approximation to a sinewave
- Transfer time: 6ms typical, 10ms maximum
- Power factor: 0.54
- Output connections: 4 × universal sockets
- Surge protection: 273 Joules
- Battery type: Internal sealed lead-acid battery (included)
- Full load runtime: ~1 minute at 1200W
- Half load runtime: ~8.5 minutes at 600W
- Control panel: LED status display (online / on battery)
- USB connectivity: Yes (basic monitoring support)
- Cable length: 1.2 meters
- Dimensions: 190 × 140 × 390 mm
- Weight: 12.3 kg
- Noise level: ~40 dBA
- Operating temperature: 0–40°C
- Storage temperature: -15–40°C
- Humidity: 0–95% non-condensing
- Protection class: IP20
- Certifications: CE, EN/IEC 62040 standards
- Mounting type: Tower (non-rack mountable)
- Use case: High-load PCs, servers, networking systems, POS systems, and business-critical electronics requiring strong backup power and stable voltage regulation
Condition
- New
Device Mounting
- Desktop
Warranty Issuer
- Manufacturer
