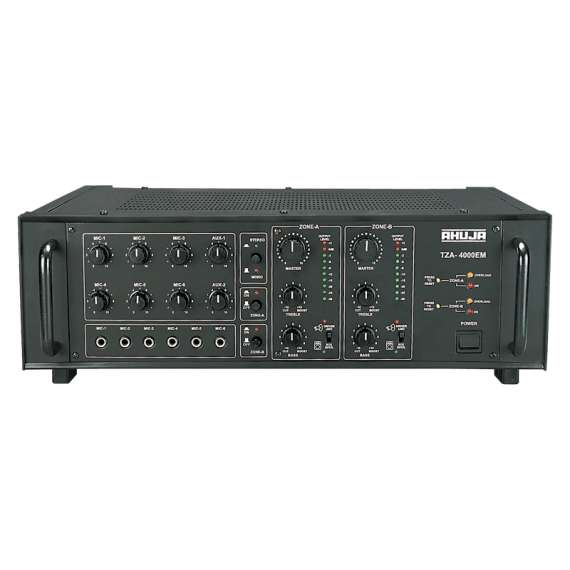

Ahuja TZA-4000EM 2 Zone PA Mixer Amplifier
![Buy Ahuja TZA-4000EM 2 Zone PA Mixer Amplifier in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/116/0010276_ahuja-two-zone-pa-amplifiers-tza-4000em.png.jpg "Buy Ahuja TZA-4000EM 2 Zone PA Mixer Amplifier in [storefront]"){kind=small}
![Buy Ahuja TZA-4000EM 2 Zone PA Mixer Amplifier in [storefront]](images/detailed/116/0010276_ahuja-two-zone-pa-amplifiers-tza-4000em.png "Buy Ahuja TZA-4000EM 2 Zone PA Mixer Amplifier in [storefront]")
TZA-4000EM
Please sign in so that we can notify you about a reply
Stereo Music Operation for DJ programmes.
Facilitates connection and operation of two
separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for Places of Worship.
Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility
Resettable circuit breaker for protection against overload and short circuit
Instant transfer to DC power (Car Battery) if AC power fails
Power Output: 300W + 300W Max., 200W + 200W RMS at 10% THD, 180W + 180W RMS at 5% THD, 165W + 165W RMS at 2% THD
Output Regulation: ≤ 2 dB, no load to full load at 1kHz
Input Channels: Mono 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ
Frequency Response: 50-15,000Hz ±3dB
Signal to Noise Ratio: 60dB
Tone Controls: Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs: Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Outputs: 4Ω, 8Ω, 70V & 100V for each zone
Power Supply: AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption: AC: 700VA DC: 9A
Dimensions: W510 × H172 × D385 mm
Weight: 24.2kg
Facilitates connection and operation of two
separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for Places of Worship.
Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility
Resettable circuit breaker for protection against overload and short circuit
Instant transfer to DC power (Car Battery) if AC power fails
Power Output: 300W + 300W Max., 200W + 200W RMS at 10% THD, 180W + 180W RMS at 5% THD, 165W + 165W RMS at 2% THD
Output Regulation: ≤ 2 dB, no load to full load at 1kHz
Input Channels: Mono 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ
Frequency Response: 50-15,000Hz ±3dB
Signal to Noise Ratio: 60dB
Tone Controls: Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs: Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Outputs: 4Ω, 8Ω, 70V & 100V for each zone
Power Supply: AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption: AC: 700VA DC: 9A
Dimensions: W510 × H172 × D385 mm
Weight: 24.2kg
