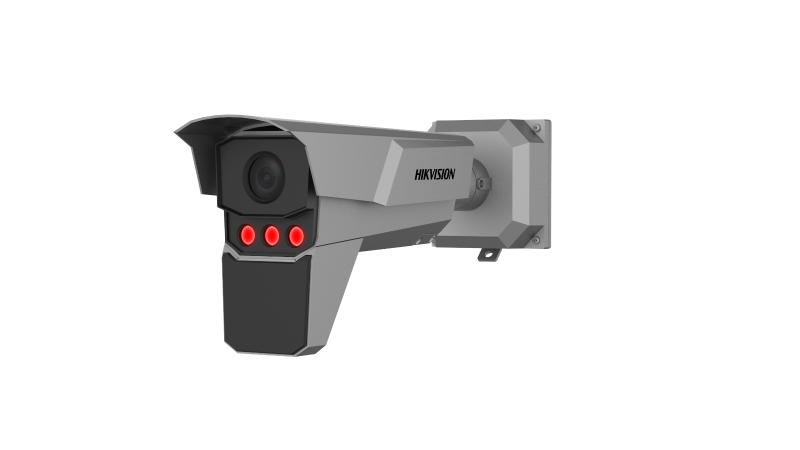

4 MP Radar-Assisted ANPR Smart Monitoring Camera

• Image Sensor1/1.8″ progressive scan CMOS
• Max. Resolution2688 × 1520
• Min. Illumination



  Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

• Shutter Time1/50 s to 1/40000 s
• Day & NightIR cut filter

• Focal Length & FOV

  2.8-12mm : Horizontal: 113.5° to 39°, Vertical: 58.4° to 22.7°, Diagonal: 141.3° to 44.3°

  8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°

• FocusAuto
• Iris TypeDC-IRIS
• Aperture



  2.8-12 mm: F1.38,

  8-32 mm: F1.7

• Built-in Supplement Light TypeIR light
• Supplement Light Number3
• Built-in Supplement Light RangeUp to 50 m
• IR Wavelength850 nm

• Working Frequency77 GHz
• Modulation WaveformFMCW
• Detection Distance



  Up to 100 m

• Speed Measuring Range



  up to 120Km/h

• Horizontal Detection Angle± 22°
• Vertical Detection Angle± 10°
• Coverage LanesUp to 3 lane(s)

• Main Stream



  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

• Sub-Stream



  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

• Third Stream



  50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288)

  60 Hz: 30 fps (1280 × 720, 704 × 576, 352 × 288)

• Video Compression

  H.264 and H.265 encoding

  Main stream: H.265/H.264/MJPEG

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline profile/Main profile/High profile
• H.265 TypeMain profile

• Audio
• Audio CompressionG.711/G.722.1
• Audio Bit Rate8Kbps (G.711) /16Kbps (G.722.1)

• ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
• Simultaneous Live ViewUp to 6 channels
• APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.2, 1.3,Host authentication (MAC address)
• Network StorageMicro SD/TF card (512 GB), local storage and CVR, NVR, ANR
• Web BrowserChrome V61+, IE9 to IE11, Firefox V41+, Edge

• Image SettingsSaturation,Brightness,Contrast,Sharpness,Gain,White balance,AGC,Adjustable by client software or web browser.
• Day/Night SwitchAuto/Scheduled/Manual
• Wide Dynamic Range (WDR)140 dB
• Image EnhancementBLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10M/100M/1000M Ethernet interface
• On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
• AudioSupported
• Alarm1 input interface, 1 output interface, 2 relays
• RS-4851 RS-485 interface
• Wiegand1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)

• Basic EventHDD error,Network disconnected,IP address conflict

• Road Traffic and Vehicle Detection
• CoverageUp to 3 lane(s)
• Smart Function

  Helmet Detection, Manned Non-Motor

  Traffic flow detection：average speed, traffic flow, queuing length, and traffic status

  Incident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving

• LPR Countries/Regions

  Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,

  Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,

  Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,

  America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,

  Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,

  Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan

Capture rate > 99%,

Vehicle moving direction recognition accuracy > 98.5%,

LPR accuracy > 98%,

Mistaken capture rate < 2%

• No License Plate DetectionSupported
• Motorcycle LPRSupported
• Vehicle TypeCar,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle
• Vehicle Color

  Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black

  Recognizable at daytime only.

• Vehicle Manufacturer212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
• Capture Speed Range5 to 120 km/h

• General
• Operating SystemLinux
• Power

  DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block,

  PoE: 802.3at, Type 2, Class 4, max. 15 W

• MaterialAluminum alloy
• Dimension429.5 mm × 120 mm × 184.2 mm (16.9" × 4.72" × 7.3") (L × W × H)
• Package Dimension595 mm × 259 mm × 193 mm (23.4" × 10.2" × 7.6") (L × W × H)
• WeightApprox. 3.405 kg (7.51 lb.)
• With Package WeightApprox. 4.635 kg (10.22 lb.)
• Operating Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
• Storage Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
• General FunctionOne-key reset, three streams, heartbeat, password protection, watermark
• Language8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish

• RF



  CE-RED: EN 301489-1 V2.2.3,EN 301489-51 V2.1.1,EN 301091-2 V2.1.1,EN IEC 62311:2020

• EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
• SafetyCB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
• EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
• ProtectionIK10: IEC 62262:2002,IP67: IEC 60529-2013
