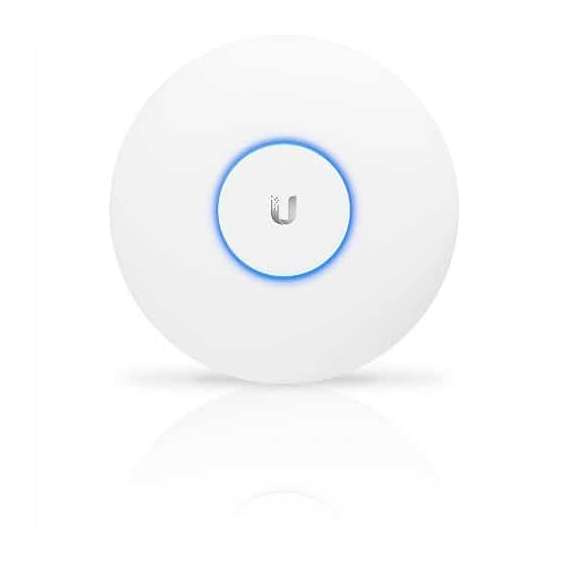

Ubiquiti U6-LR WiFi 6 Long-range Access Point

Ubiquiti UniFi WiFi 6 Long-Range Access Point (U6-LR)

The Ubiquiti UniFi U6-LR is a powerful wireless Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.

Ubiquiti UniFi U6-LR Key Features ○ 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance) ○ Four-stream high-efficiency WiFi 6 technology ○ 5 GHz band 4×4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps ○ 2.4 GHz band 4×4 MIMO with radio rate of 600 Mbps ○ Powered with 802.3at PoE ○ Managed by UniFi Network Controller version: 6.0.34 or higher

The UniFi U6-LR delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4×4 MU-MIMO and OFDMA) and 2.4 GHz 4×4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).

Ubiquiti UniFi U6-Lite – Technical Specifications

Mechanical

• Dimensions: Ø220 x 48 mm (Ø8.66 x 1.89″)
• Weight: – Without Mount: 800 g (1.76 lb) – With Mount: 930 g (2.05 lb)
• Enclosure Material: Plastic
• Mounting Material: IP54

Hardware

• Processor Specs: Dual-Core® Cortex® A53 at 1.35 GHz
• Memory Information: 512 MB
• Management Interface: Ethernet In-Band
• Networking Interface: (1) Gbps Ethernet RJ45
• Buttons: Factory Reset
• LEDs: RGB
• Power Method: 802.3af PoE, Passive PoE (48V)
• Power Supply: 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)
• Supported Voltage Range: 44 to 57VDC
• Max. Power Consumption: 16.5W
• Max. TX Power – 2.4GHz: 26 dBm – 5GHz: 26 dBm
• MIMO: – 2.4GHz: 4 x 4 – 5GHz: 4 x 4
• Throughput Speeds -2.4GHz: 600 Mbps – 5GHz: 2,400 Mbps
• Antenna Gain – 2.4GHz: 4 dBi – 5GHz: 5.5 dBi
• Operating Temperature: -30 to 60° C (-22 to 140° F)
• Operating Humidity: 5 – 95% Noncondensing
• Certifications: CE, FCC, IC

Software

• WiFi Standards – 802.11a/b/g – WiFi 4/Wi-Fi 5/Wi-Fi 6
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID 8 per Radio
• VLAN: 802.1Q
• Advanced: QoS Per-User Rate Limiting
• Guest Trafc Isolation: Supported
• Concurrent Clients: 300+

Supported Data Rates (MBPS)

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n (Wi-Fi 4): 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
• 802.11ac: (Wi-Fi 5): 6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
• 802.11ax: (Wi-Fi 6) 6.3 Mbps to 1.2 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80)
