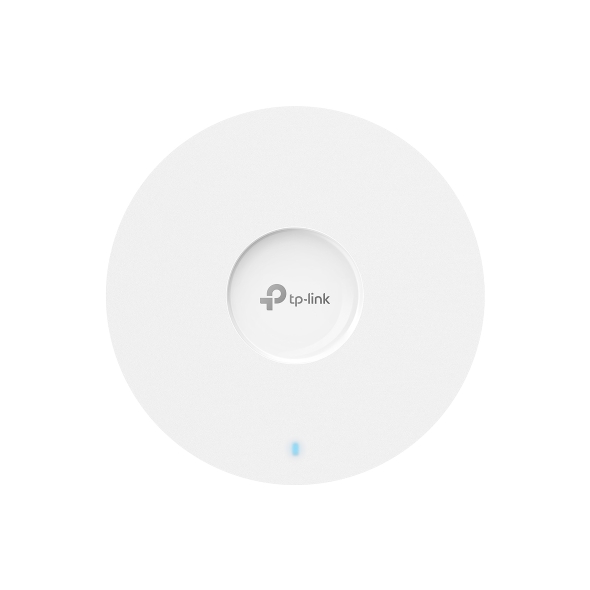

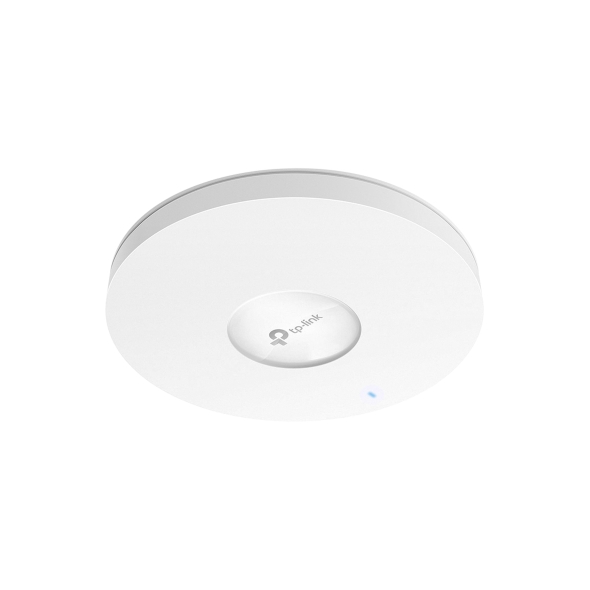

TP-link TL-EAP653 UR AX3000 Ceiling Mount WiFi 6 Access Point

The TP-Link EAP653 UR is a high-performance AX3000 WiFi 6 ceiling mount access point designed for ultra-fast speeds, wide coverage, and seamless connectivity in high-density environments. It integrates with Omada SDN for centralized cloud-based network management and smooth roaming.

Specifications

• Wireless standard: Wi-Fi 6 (802.11ax), backward compatible with 802.11ac/n/g/b
• Wi-Fi speed: Up to 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz (AX3000 total)
• Dual band technology: Simultaneous 2.4GHz and 5GHz operation for optimized performance
• Antennas: High-efficiency internal antennas with enhanced transmit power for wider coverage
• Wi-Fi 6 features: Supports HE160, 1024-QAM, MU-MIMO, and OFDMA for improved efficiency and capacity
• Mesh support: Omada Mesh capability for seamless whole-network coverage
• Roaming: Seamless roaming support for uninterrupted connectivity across access points
• Power method: IEEE 802.3at PoE+ and DC power input support (adapter not included)
• Ethernet port: 1× Gigabit Ethernet port for high-speed wired connectivity
• Design: Ultra-slim ceiling mount design (Φ6.3 in × 1.3 in) for discreet installation
• Management: TP-Link Omada SDN centralized cloud and controller-based management
• Multi-SSID: Supports multiple wireless networks for different user groups
• Security: Enterprise-grade wireless encryption and network protection
• Use case: Ideal for offices, hotels, campuses, and high-density enterprise environments
• Installation: Ceiling mount design for optimal indoor WiFi distribution
