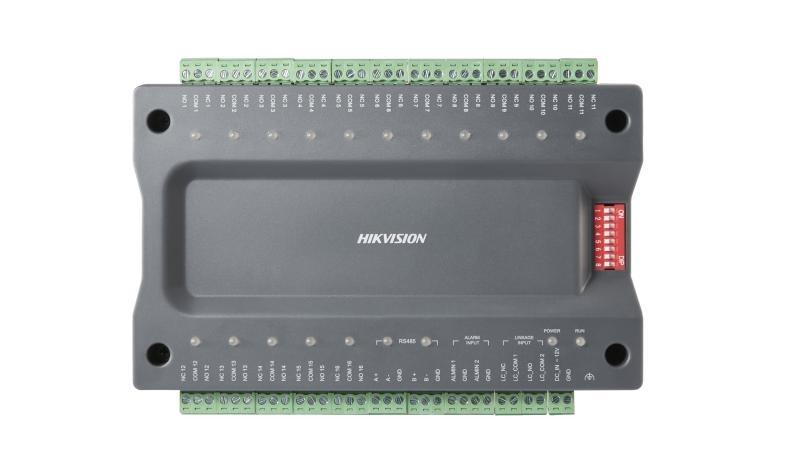

Hikvision DS-K2M0016A Elevator Sub-Controller
Expand elevator access control with the Hikvision DS-K2M0016A, a distributed sub-controller designed to manage floor-selection buttons and coordinate with a master elevator controller for secure, centralised elevator access management.
Specifications
• Model: DS-K2M0016A | Brand: Hikvision | Product Type: Elevator Sub-Controller
• Controller Type: Distributed elevator controller
• Relay Outputs: 16
• Floor Control: Supports control of up to 16 floor buttons through relay outputs
• Communication Interface: 2 × RS-485 interfaces
• Alarm Inputs: 2
• Buzzer: 1
• Relay Types: Button Relay, Call Elevator Relay and Auto Button Relay
• Configuration: 8 DIP switches for device addressing and relay type selection
• Master Controller Compatibility: Hikvision DS-K2210
• Expandability: Up to 8 sub-controllers can be linked to one DS-K2210 master controller
• Processor: 32-bit
• Tamper Protection: Supported
• Power Supply: 12V DC ±15%
• Power Consumption: ≤2W without load
• Operating Temperature: -40°C to +70°C
• Operating Humidity: 0–90% RH, non-condensing
• Dimensions (L × W × H): 167 × 105 × 30 mm
• Installation: Guide rail mounting
