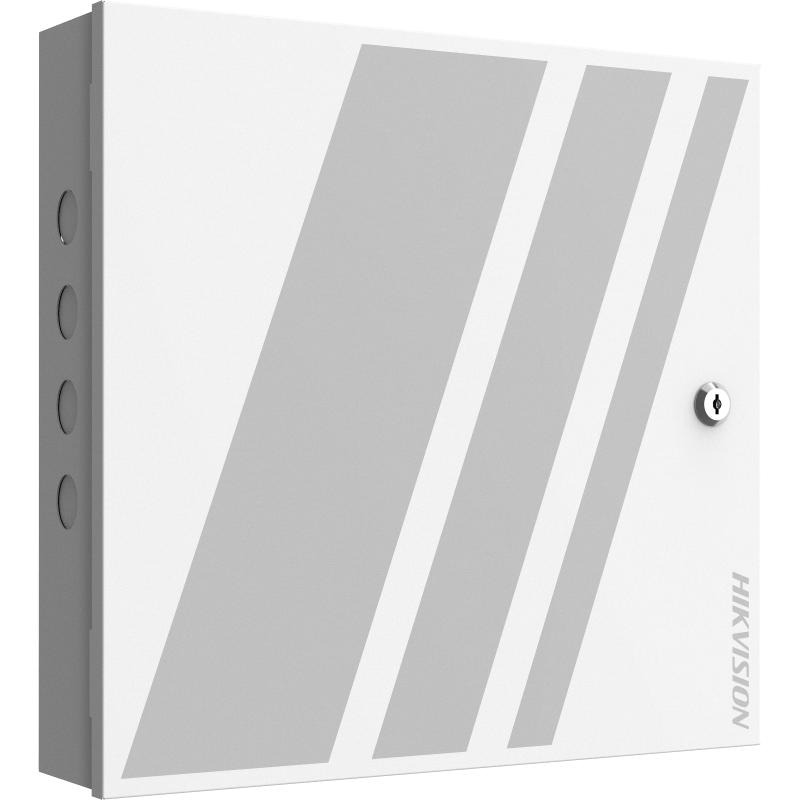

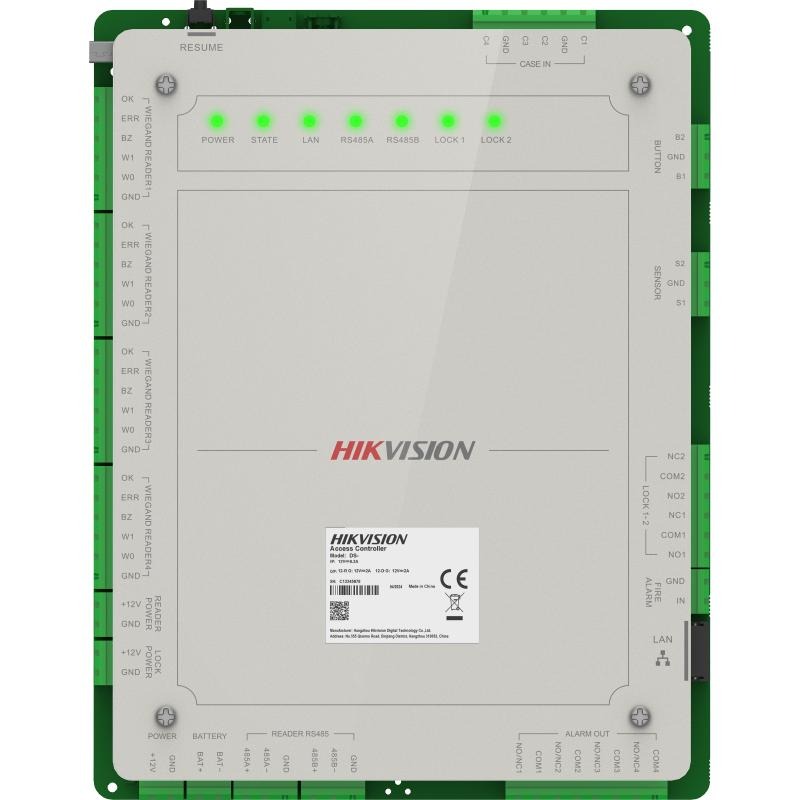

Hikvision DS-K2622X Pro Series 2-Door Access Controller

Strengthen premises security with the Hikvision Pro Series access controller, offering centralised door management, flexible reader integration and advanced access control functions for commercial buildings and secure facilities.

Specifications
  • Model: DS-K2622X | Brand: Hikvision | Product Type: Pro Series Access Controller
  • Door Control: Supports 2 doors
  • Network Interface: 1 × RJ45 Ethernet, 10/100 Mbps self-adaptive
  • Supported Network Protocols: IPv4, IPv6 and DHCP
  • Lock Control Outputs: 2
  • Exit Button Inputs: 2
  • Door Contact Inputs: 2
  • Alarm Inputs: 4
  • Alarm Outputs: 4
  • Tamper Input: 1
  • Card Reader Interfaces: 2 × RS-485 interfaces and 4 × Wiegand interfaces
  • Reader Compatibility: Supports up to 4 RS-485/OSDP readers and 4 Wiegand readers
  • Wiegand Formats: Standard 26-bit and 34-bit, with configurable formats
  • Fire Interface: Supported
  • Security Protocols: AES-256, RSA-2048 and TLS 1.2
  • Access Control Functions: Multi-factor authentication, anti-passback and multi-door interlocking
  • Configuration: Web browser-based management without requiring dedicated configuration software
  • Backup Power: Supports battery charging and discharging for backup power
  • Power Supply: 100–240V AC
  • Maximum Power Consumption: 72W
  • Operating Temperature: -10°C to 55°C
  • Operating Humidity: 0–90%, non-condensing
  • Installation: Wall-mounted
