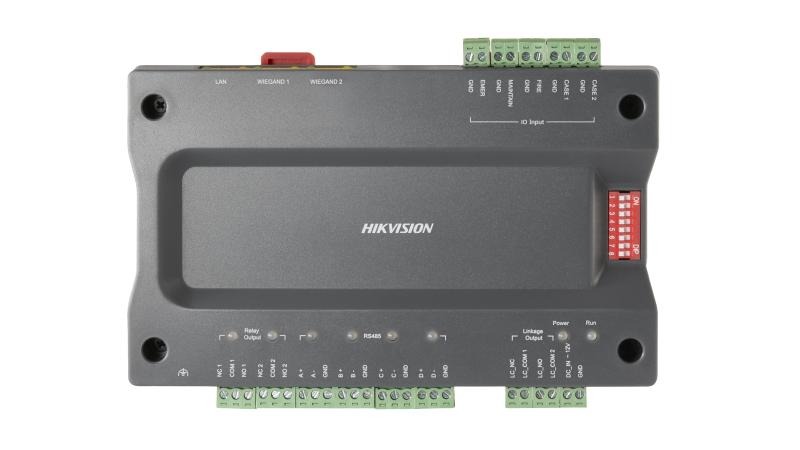

Hikvision DS-K2210 Elevator Master Controller

Manage secure elevator access with the Hikvision DS-K2210, designed to control floor permissions in multi-storey buildings while supporting centralised administration, flexible reader integration and reliable access event recording.

Specifications
  • Model: DS-K2210 | Brand: Hikvision | Product Type: Elevator Master Controller
  • Floor Access Management: Up to 128 floors
  • Card Storage Capacity: Up to 20,000 cards
  • Event Storage Capacity: Up to 50,000 events
  • Communication Interfaces: TCP/IP, RS-485 and Wiegand
  • Card Reader Support: Up to 2 RS-485 readers or 2 Wiegand readers
  • Input Interfaces: 1 × panic button, 1 × fire alarm button, 1 × maintenance button and 2 × case inputs
  • Output Interfaces: 4 × door switch relay outputs and 4 × alarm relay outputs (datasheet specification)
  • Authentication: Multiple authentication modes
  • Management: Web client and client software
  • Processor: 32-bit
  • Internal Clock: Supported
  • Real-Time Clock (RTC): Supported
  • Security Features: Watchdog and tamper protection
  • Power Supply: 12V DC ±15%
  • Operating Temperature: -40°C to +70°C
  • Operating Humidity: 0–90% RH, non-condensing
  • Dimensions (L × W × H): 167 × 105 × 30 mm
  • Installation: Guide rail mounting
