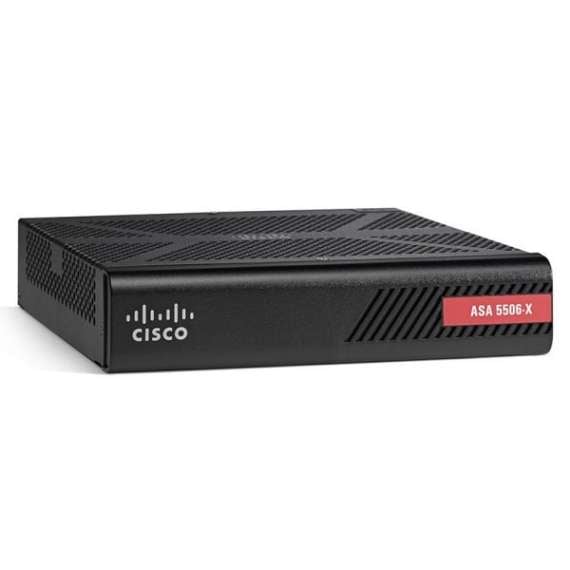

Cisco ASA 5506-X Firewall

Cisco ASA 5506-X Firewall

Cisco ASA with FirePOWER Services brings distinctive threat-focused next-generation security services to the Cisco ASA 5500-X Series Next-Generation Firewalls. It provides comprehensive protection from known and advanced threats, including protection against targeted and persistent malware attacks. Cisco ASA is the world’s most widely deployed, enterprise-class stateful firewall.

Technical Specifications

Dimensions (H x W x D): 1.72 x 7.871 x 9.23 inches (4.369 x 19.992 x 23.44 cm)

Serial ports: 1 RJ-45 and Mini USB console

Power input (per power supply) AC current: N/A

Integrated I/O: 8 x 1 Gigabit Ethernet (GE)

Memory: 4 GB

Number of URLs categorized: More than 280 million

Dual power supplies: Not available

Outputsteadystate: 12V @ 2.5 A

High-availability support: A/S*

Maximum AVC and NGIPS throughput: 125 Mbps

Cisco Cloud Web Security users: 275

Operating Acoustic Noise: Fanless 0 dBA

Maximum application visibility and control (AVC) throughput: 250 Mbps

Maximum 3DES/AES VPN throughput: 100 Mbps

Maximum site-to-site and IPsec IKEv1 client VPN user sessions: 10 / 50

Centralized configuration, logging, monitoring, and reporting: Multidevice Cisco Security Manager and Cisco FireSIGHT Management Center

Maximum Cisco AnyConnect IKEv2 remote access VPN or clientless VPN user sessions: 2 / 50

Solid-state drive:50 GB mSata

Form factor: Desktop, rack mountable

Maximum AVC and IPS throughput : 125 Mbps

Maximum application control (AVC): 250 Mbps

Packets per second (64 byte): 246,900

Maximum heat dissipation:103 BTU/hr

Weight: 1.82 with AC power supply

VLANs: 5 / 30

Maximum new connections per second: 5000

Dedicated management port: Yes (To be shared with with FirePOWER Services), 10/100/1000

Expansion I/O: Not available

Weight (with AC power supply): 1.82 kg

Stateful inspection throughput (max): 750 Mbps

Output Maximum Peak: 12V @ 5A

USB 2.0 Ports: USB port type, High Speed 2.0

URL categories: 80+

Minimum system flash: 8 GB

Stateful inspection throughput (multiprotocol): 300 Mbps

Power: AC only

Supported applications: More than 3000

AVC or IPS sizing throughput (440-byte HTTP): 90 Mbps

Maximum concurrent sessions: 20,000; 50,000

Download datasheet here
