APC SRTG5KXLI Smart-UPS RT 5kVA/5kW Online Rackmount UPS

Protect critical IT infrastructure with the APC Smart-UPS RT, delivering clean, uninterrupted power, advanced voltage regulation and scalable battery runtime for servers, networking equipment and business-critical systems.

Specifications
  • Model: SRTG5KXLI | Brand: APC | Product Type: Online Uninterruptible Power Supply (UPS)
  • Rated Capacity: 5000VA / 5000W
  • UPS Topology: Online double-conversion

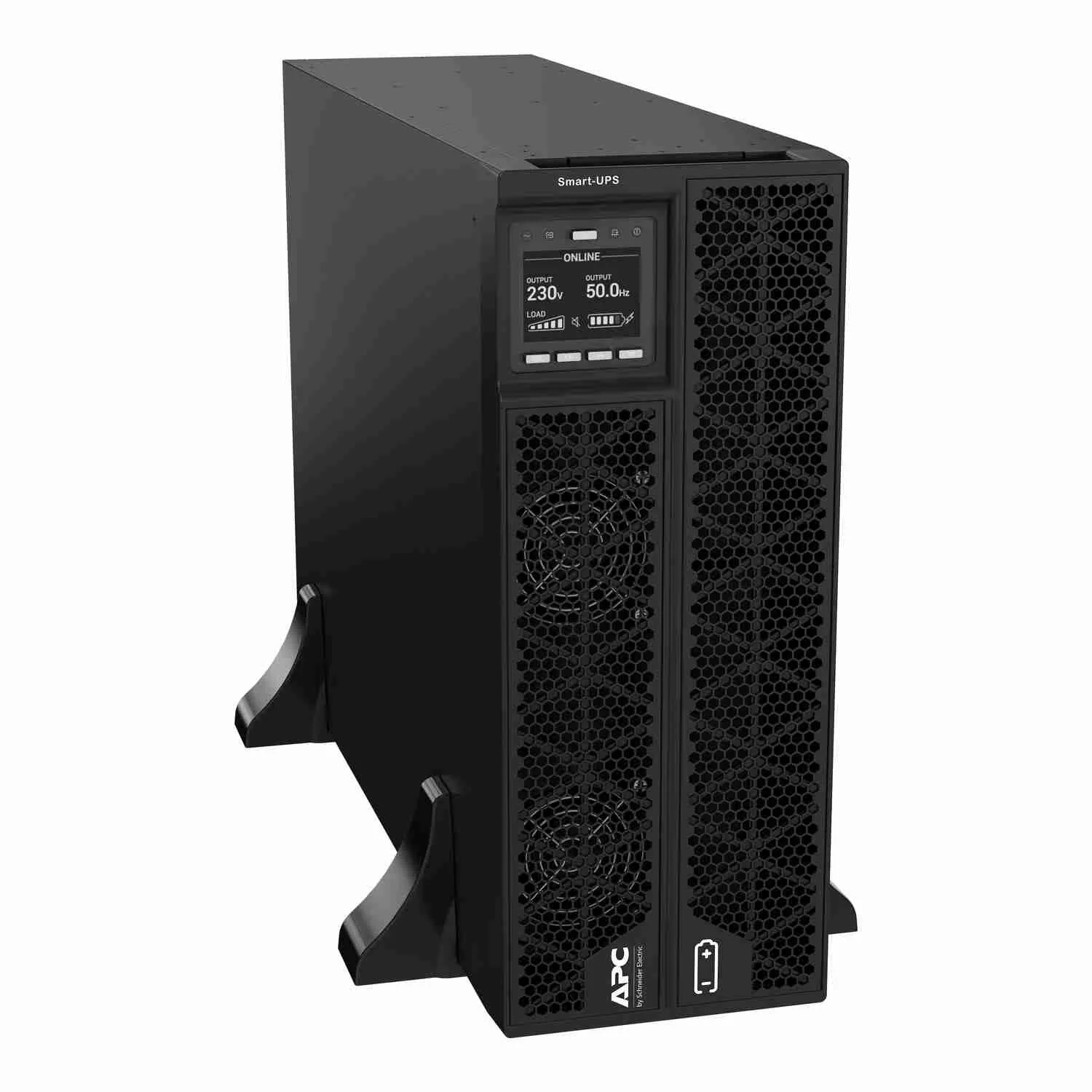

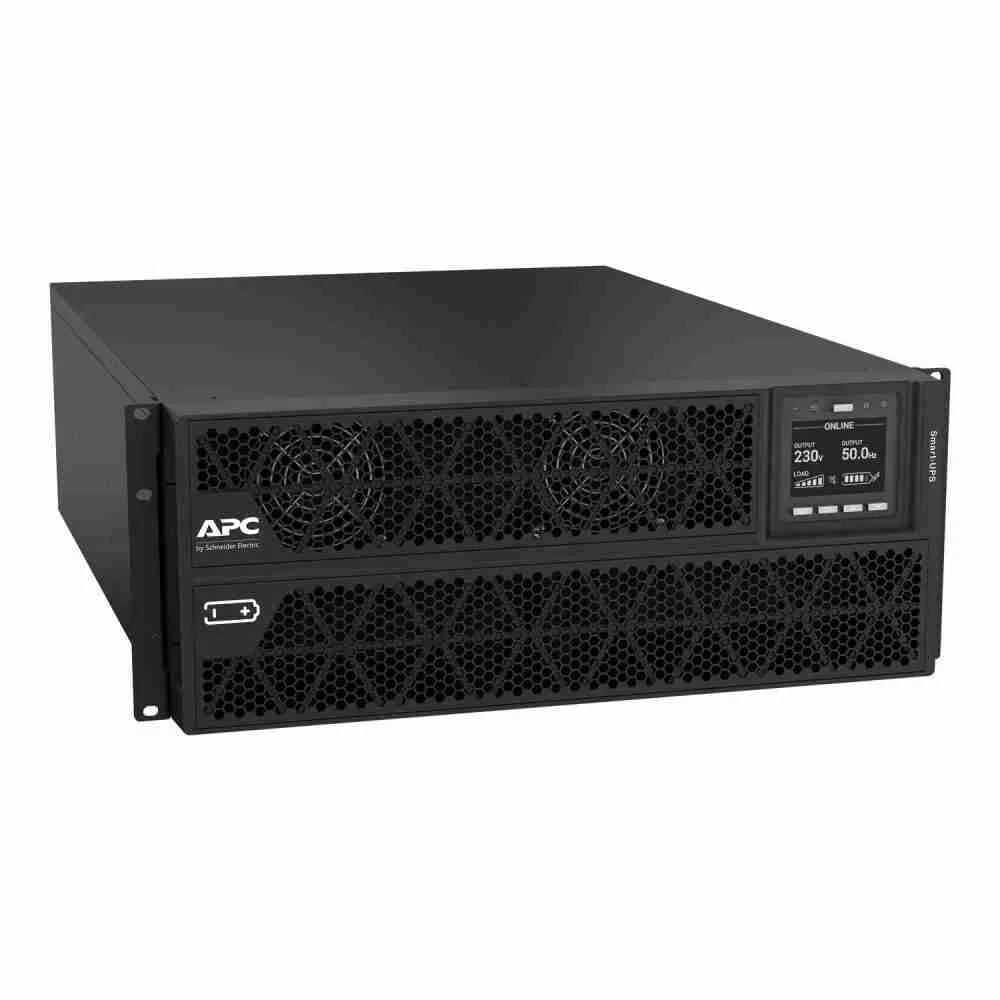

  • Form Factor: 4U rackmount / tower convertible
  • Nominal Input Voltage: 230V AC, single-phase
  • Nominal Output Voltage: 230V AC; configurable to 220V or 240V
  • Input Voltage Range: 160–285V at full load; 100–285V at half load
  • Input Frequency: 40–70Hz, auto-sensing
  • Output Frequency: 50/60Hz
  • Output Waveform: Pure sine wave

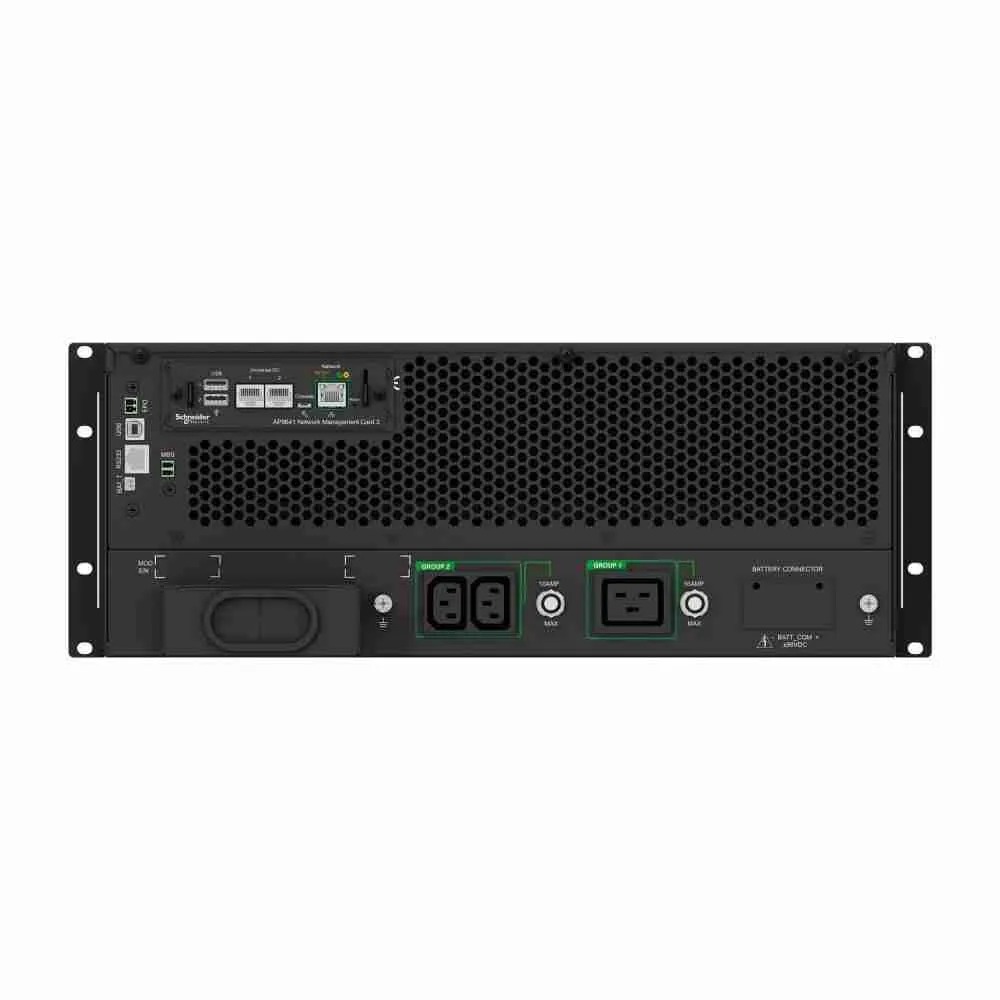

  • Output Connections: 2 × IEC C13, 1 × IEC C19, 1 × hardwired 3-wire output
  • Bypass: Automatic and manual internal bypass
  • Battery Type: Sealed lead-acid, maintenance-free
  • Battery Voltage: ±96V DC
  • Typical Battery Recharge Time: 4 hours to 90% capacity
  • Extended Runtime: Supports compatible external battery packs
  • Replacement Battery Cartridge: APCRBC170
  • Communication Interfaces: USB, RS-232 and SmartSlot network management
  • Display: LCD status panel
  • Power Management: Eco mode, automatic self-test, battery failure notification and automatic restart
  • Operating Temperature: 0°C to 40°C
  • Operating Humidity: 0–95% RH, non-condensing
  • Dimensions (W × H × D): 440 × 177.8 × 620 mm
  • Weight: Approximately 51.9 kg
  • Warranty: Typically 3 years for the UPS and 2 years for batteries, subject to regional terms
