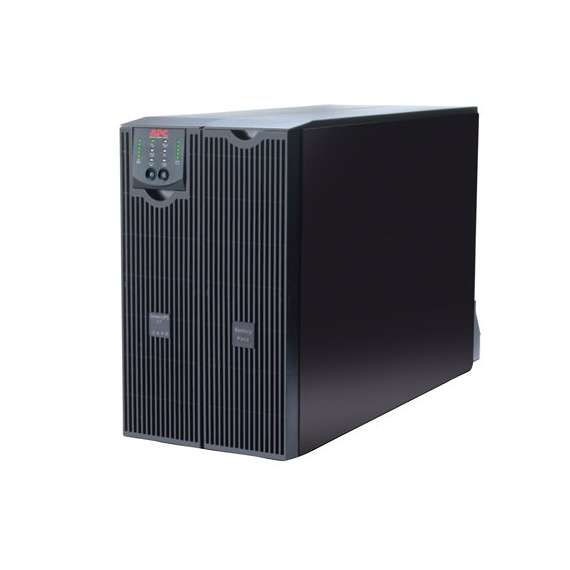

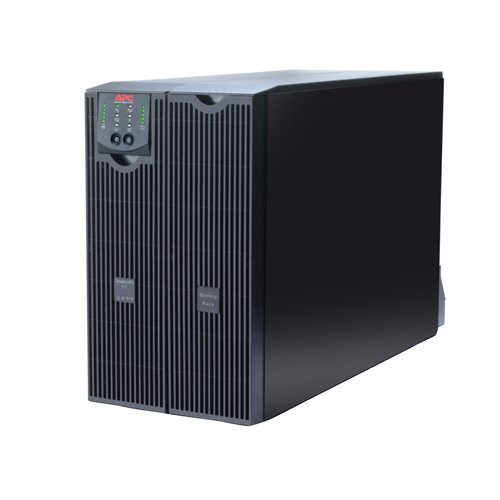

APC Smart-UPS RT 8000VA 230V Online UPS

Technical Specifications

Output

Max Configurable Power (Watts)8.0kWatts / 8.0kVA

Output Voltage Distortion: Less than 2 %

Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages220 V, 240 V

Load Crest Factor - 3 : 1

Topology: Double conversion online

Waveform type: Sine wave

Bypass: Internal bypass (automatic and manual)

Input

Input frequency: 40 - 70 Hz Auto-sensing

Input voltage range for main operations: 100 - 275 Adjustable (half load), 173 - 476 Adjustable (half load)V

Other Input Voltages: 220 V, 240 V, 380 V, 415 V

Batteries & Runtime

Battery typeLead-acid battery

Typical recharge time1.5hour(s)

Nominal Battery Voltage+/- 192 V (split battery referenced to neutral)

Replacement Battery: APCRBC140

Expected Battery Life (years): 3 - 5

RBC Quantity: 2

Battery Charge Power (Watts): 1.144kWatts

Extendable Run Time: 1

Runtime: View Runtime Graph

Efficiency: View Efficiency Graph

Communications & Management

Interface Port(s)RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB

Control panel: Multifunction LCD status and control console

Audible Alarm: Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)Yes

Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering

Surge energy rating: 480Joules

Physical

Maximum Height: 432MM, 43.2CM

Maximum Width: 263MM, 26.3CM

Maximum Depth: 715MM, 71.5CM

Net Weight: 111.82KG

Shipping weight: 126.82KG

Shipping Height: 461MM, 46.1CM

Shipping Width: 600MM, 60.0CM

Shipping Depth: 1000MM, 100.0CM

Color: Black

Units per Pallet: 1.0

Environmental

Operating Temperature: 0 - 40 °C

Operating Relative Humidity: 0 - 95 (Non-condensing) %

Operating Elevation: 0 - 3048meters

Storage Temperature - 15 - 45 °C

Storage Relative Humidity: 0 - 95 (Non-condensing) %

Storage Elevation: 0 - 15240meters

Audible noise at 1 meter from surface of unit: 55.0dBA

Online thermal dissipation: 1497.0BTU/hr

Protection Class: IP20

Conformance

Approvals: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE

Sustainable Offer Status

RoHS Compliant
